Thank you from
Willis & Gambier
For a chance to win a Love 2 Shop voucher simply post a picture of your new product on
your preferred social channels tagging Willis & Gambier using the hashtag #ShareYourStyle
and #WillisGambier . One winner will be selected at random each month.
To view our full terms and conditions please visit www.willisgambier.co.uk
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on
our social media channels. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with your
order, please contact the retailer you purchased the item from. We will work
with the retailer to resolve your issue as quickly as possible.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Willis & Gambier Ivory SD/1367W
Summary of Contents for Willis & Gambier Ivory SD/1367W
- Page 1 Thank you from Willis & Gambier For a chance to win a Love 2 Shop voucher simply post a picture of your new product on your preferred social channels tagging Willis & Gambier using the hashtag #ShareYourStyle and #WillisGambier . One winner will be selected at random each month. To view our full terms and conditions please visit www.willisgambier.co.uk Are you happy with your purchase? Yes:...

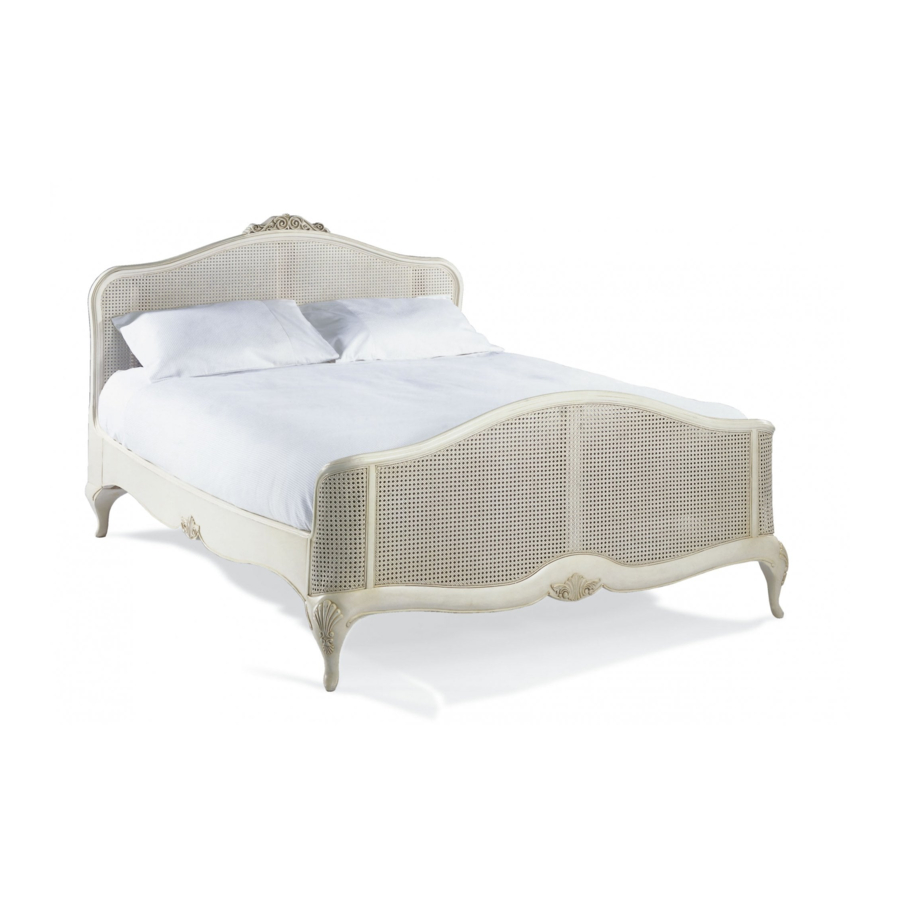

- Page 2 Ivory Collection 135cm Bedstead (Product Code SD/1367W) 150cm Bedstead (Product Code SD/1369W) 180cm Bedstead (Product Code SD/1370W) Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet.
- Page 3 Panel and Fittings Identification Item Description Qty. Item Description Qty. Item Description Qty. Footboard Side Rail Headboard Centre Rail Slat Thread 135cm bedstead 150/180cm bedstead Bracket Open Ended Nut & Washer 13mm Spanner 16mm CSK Screw 40mm Bolt 11mm Nut Plastic End Caps Centre rail support leg 30mm CSK Screw...
- Page 4 Step - Screw the eight threads into the headboard and footboard ensuring enough of the thread is left for attachment in steps 2 & 3. Fittings F x 8 Step - Locate the side rails onto the threads protruding from the headboard. Locate the washers and nuts onto the threads and secure by hand at first.
- Page 5 Step - Locate the side rails onto the threads protruding from the footboard. Locate the washers and nuts onto the threads and secure by hand at first. Tighten using the open ended spanner Fittings H x 4 Spanner, I Step - Attach the brackets to the headboard and footboard using the 20mm screws inserted into the pre-drilled pilot holes.
- Page 6 Step - Attach the support leg (O) to the centre rail (D) using four 30mm CSK screws (N). Locate the centre rail into the brackets. Secure using the remaining nuts and bolts. Tighten using two 11mm spanners (Not provided). Fittings K x 2 L x 2 N x 4...
