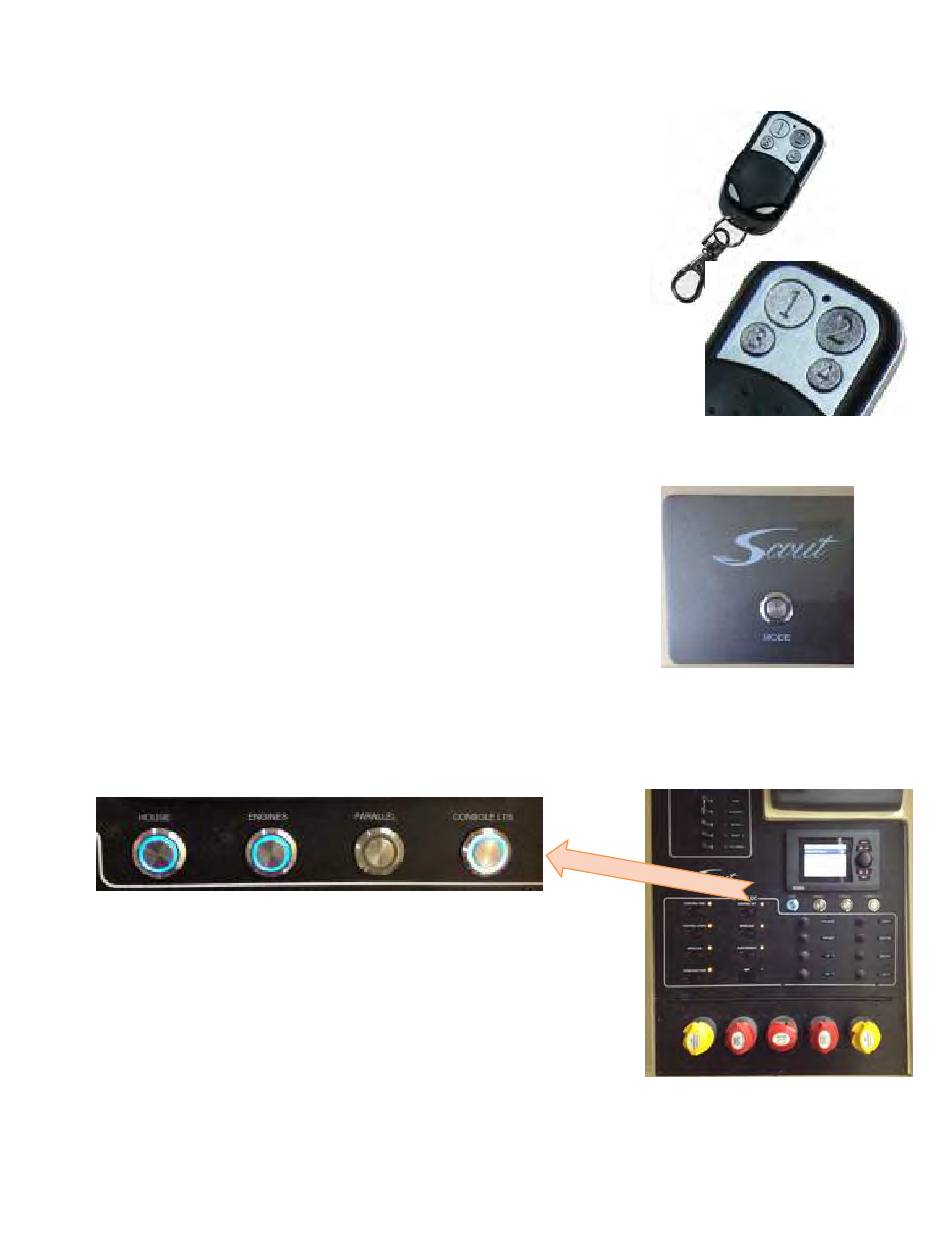

Wireless function:
Button 1
Pressing button 1 will turn on engine and house batteries.
Button 2
Pressing button 2 will turn off engine and house batteries.
Button 3
When the batteries are turned on press button 3 and all of the lights will
turn on press button 3 again and the lights will shut off.
Button 4
Pressing button 4 will energize the lights used for night time running and
shut off lights not used for operating the boat at night.
Helm Mode Button on Dash Panel:
Pressing the mode switch will cycle thru several different modes. The first
mode turns on all of the lights. The second mode puts the boat into night
running mode. The third press is the Mood lighting mode. The fourth press
will shut off all of the lights.
Console Button at DC Panel:
Press the house or engine button to turn on or off the house or engine
battery switch.
https://www.boat-manuals.com/
Advertisement
Table of Contents
Related Manuals for BEP Marine CZONE
Summary of Contents for BEP Marine CZONE
- Page 1 Wireless function: Button 1 Pressing button 1 will turn on engine and house batteries. Button 2 Pressing button 2 will turn off engine and house batteries. Button 3 When the batteries are turned on press button 3 and all of the lights will turn on press button 3 again and the lights will shut off.
- Page 2 Motorized Battery Switch: The Motorized Battery Switch has two modes of operation. Auto and Manual. There is a LED located on the battery switch indicating Battery Switch status. Manual Operation: The automatic operation of the battery switch depressing the control knob can be overridden at any time by !WARNING: Depress...
- Page 3 Product description: The CZone Display module (DI) is the CZone systems user interface, it has the ability to control DC circuits, display important on board systems information and can be used to set all Zone parameters both for initial installation and future systems maintenance...
- Page 4 Operation Main Screen Monitoring Page DC Monitoring Tank Monitoring AC Monitoring Main Control Page https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 5 Operation Control Page Detailed Control Page Settings Menu Alarms Page https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 6 Connections Pictorial Overview Menu – returns user to main menu page (as shown below) ESC – Escape key, returns to previous screen Ent – Enter key, navigates to next screen or confi rms prompt Rotary Knob – Scrolls cursor bar up and down through menu lists, used to navigate alpha numeric lists in confi...
- Page 7 Display Interface Operation Manual ..Leading By Design https://www.boat-manuals.com/...
- Page 8 IMPORTANT BEP Marine strives to ensure all information is correct at the time of printing. However, BEP Marine reserves the right to change any features and specifications of either the operation of the device, or the documentation of the device, without notice.
-
Page 9: Table Of Contents
..10 MONITORING CONTROL MODES SETTINGS 4. Specifications..17 5. Contact Addresses ..18 https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... -
Page 10: Overview
Because there is no centralized processing facility, a CZONE network is not crippled with the collapse of any one unit. Your main connection with each CZONE interface throughout your vessel is the Display Interface, or DI. -
Page 11: Display Interface
POWER Activates/Deactivates the DI. NOTE • • • • The POWER Button has no effect on the network. Its only use is to activate and deactivate the DI’s screen power. https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... -
Page 12: Powering The Di
MENU. » Press Screen Features Each screen contains one of several features: A menu selection to more specific controls. The status of a group of CZONE measurements. The status of a specific CZONE measurement. https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... - Page 13 A list of checkboxes. A ‘spin box’ of multiple variables. (The Dial is used to change values.) https://www.boat-manuals.com/ CZONE Display Interface Operations Manual...
-
Page 14: Navigation Conventions
Navigation Conventions The use and operation of the DI for your Option 1 CZONE network is extremely easy. For the vast majority of use: Option 2 Dial to select an on-screen option. » Use the Option 3 ENT to open the selected option. -
Page 15: Directory Tree
Voltage (V), Current (A), Time Remaining (A/h), Charge State (%) Tanks Tanks (all) Tank (1) Tank level (%, level [L/Gal], capacity [L/Gal]) Data The Data collections appearing in this screen are configured in Settings. Data (all) Data (1) https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... -
Page 16: Control
Cruise mode, turning on all the circuits required for complete operation of the boat. When you leave the boat you can then select System Off mode which shuts down all non 24Hr circuits. https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... -
Page 17: Settings
The Settings section is where you set all operating tolerances, calibration, preferences and alarm triggers. Your CZONE network is normally installed with WARNING • • • default settings for you. However, customizing your network to suit how you operate your... - Page 18 Displays a list of all configured modules showing their state (Online or Offline) and dispwitch setting. System Config By entering a password the parameters of your CZONE system can be adjusted to allow additions or modifications. Only trained technicians should carry out this work.
-
Page 19: Specifications
- Electrical transient conduction along supply lines only). ISO 7637 - 2 (24 V Commercial vehicles with nominal 24 V supply voltage - Electrical transient conduction along supply lines only). IEC Standards for indirect lightning strikes. https://www.boat-manuals.com/ CZONE Display Interface Operations Manual... - Page 20 The Meter Interface is designed to accept multiple inputs from AC current and voltage transformers as well as DC voltage inputs and current inputs from shunts The MI processes the information from these inputs and broadcasts it onto the CZone bus MI features: •...
- Page 21 LED Flash Codes Channel status indicators Network Status indicator Network Status Indicator • Extinguished = Network power disconnected • Green = Network power connected • Red = Network traffi c Channel Status Indicators https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 22 Connections Electrical Connections DC OUTPUT INTERFACE 1AMP FUSE BATTERY BILGE PUMP BATTERY ENGINE SWITCH NEGATIVE ALT 2 WIPER BUS BAR NMEA 2000 NETWORK STARTER ALT 1 BATTERY SWITCH HORN CIRCUIT BREAKER 450A 50mV SHUNT 1AMP FUSE (BATT) (LOAD) BATTERY TWISTED PAIR 8 Way, DC DC Negative DC voltage positive input 3...
- Page 23 Labelling Connections/LED fl ash code label This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit Module Identifi cation and Dipswitch label These labels allow easy identifi cation of each module whilst recording the dipswitch setting. These labels are to be fi tted to the cover and to the module (this prevents covers being swapped).
- Page 24 Output Interface (OI)/Motor Output Interface (MOI) Product descriptions: Output Interface (OI): Motor Output Interface (MOI) The Output Interface module is where the circuit control and protection The Motor Output Interface is designed for loads such as trim tabs takes place, these modules have been designed to be mounted in many and hatch lifters where a polarity reversal is required to change the locations around the vessel to bring the circuit control and protection direction of the motor, it also has two standard output channels...
- Page 25 LED Flash Codes Power available Indicator Channel status indicators Network Status indicator Power available Indicator MOI only Channel Status Indicators • Extinguished = No input power connected • Green = Input power available • Red = Input power reverse polarity Network Status Indicator •...
- Page 26 Connections Electrical Connections OI: Electrical Connections MOI: https://www.boat-manuals.com/...
- Page 27 Labelling Connections label This label is located between the output connection and the bypass fuses, it gives the fi eld user or installer an indication of the connections without the need to refer to a manual LED fl ash code label This label is located on the inside of the front lid of the unit, it shows ...
- Page 28 Pictorial Overview OI with cover removed Circuit status indicator Fuses for By-pass DC Positive feed NMEA 2000 connector OI with cover Fitted Circuit ID label Waterproof cover DC outputs (to loads) Protective boot https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 29 Signal Interface (SI) Product description: The Signal Interface is the interface between sensors and switches, external to the CZone system, and the CZone network SI features: 6 inputs • Inputs from traditional switch types being used to control outputs (Negative, Open circuit, 0-35V DC) •...
- Page 30 LED Flash Codes Channel status indicators Network Status indicator Network Status Indicator • Extinguished = Network power disconnected • Green = Network power connected • Red = Network traffi c https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 31 Labelling Connections/LED fl ash code label This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit Module Identifi cation and Dipswitch label These labels allow easy identifi cation of each module whilst recording the dipswitch setting. These labels are to be fi tted to the cover and to the module (this prevents covers being swapped).
- Page 32 Switch Control Interface (SCI) Product description: The Switch Control Interface (SCI) is a module which converts signals from traditional mechanical switches and converts them into a CAN signal to control loads via channels on output interface modules SCI features: • EMC ratings: 8 switch channels per module (sixteen switch points) •...
- Page 33 LED Flash Codes Network Status indicator Network Status Indicator • Extinguished = Network power disconnected • Green = Network power connected • Red = Network traffi c Channel Status Indicators In the Case of the SCI module the LED channel status indicator fl ashes are displayed on the Carling switches that are connected to the SCI (Systems in operation window) ...
- Page 34 Connections SCI – 8 Way connector housing Front View Plugs into carling Switch Plugs to SCI 8 Way connector https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 35 Connections Internal SCI Conductor connections Internal SCI Conductor connections SCI Cable Connections RJ45 Conductor Colour Carling terminal Housing Conductor Designation (in relation to SCI) Green/White Backlighting + 2V Brown/White Switch O/P Position 1 Green Switch O/P Position 2 Blue Orange Systems on + 2V...
- Page 36 Labelling Connections/LED fl ash code label This label is located on the inside of the front lid of the unit, it shows the LED codes and electrical connections to the unit https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
- Page 37 Pictorial Overview 8 way RJ45 Carling connector bank Proprietary Waterproof NMEA 2000 cable assembly Cable grommet connector https://www.boat-manuals.com/ For more information contact BEP | ph: +64 9 415 7261 | email: enquiries@bepmarine.com | www.bepmarine.com...
