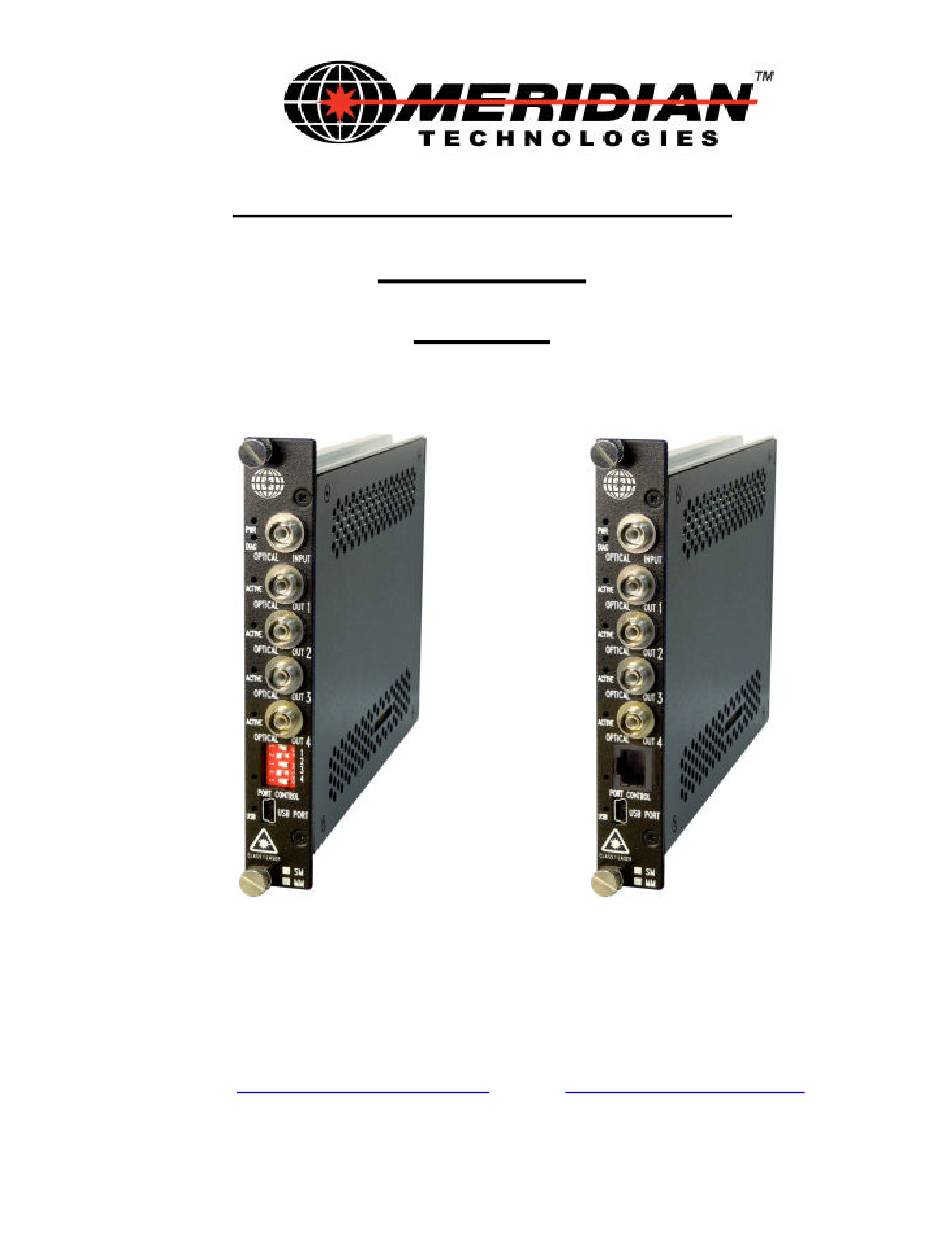

Meridian SX-4FX Series Installation & Operation Instructions

1x4 all-optical fiber switch

Advertisement

Quick Links

Installation/Operation Instructions
Part Number:
SX-4FX-x
(1x4 All-Optical Fiber Switch)
Meridian Technologies, Inc
700 Elmont Road, Elmont NY 11003, USA
Telephone : +1. 516. 285. 0570 Fax: +1. 516. 285. 6300
E-mail:
sales@meridian-tech.com
Web:
www.meridian-tech.com
Document Version 1.2
09/07/2016
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-4FX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Meridian SX-4FX Series

  • Page 1 Installation/Operation Instructions Part Number: SX-4FX-x (1x4 All-Optical Fiber Switch) Meridian Technologies, Inc 700 Elmont Road, Elmont NY 11003, USA Telephone : +1. 516. 285. 0570 Fax: +1. 516. 285. 6300 E-mail: sales@meridian-tech.com Web: www.meridian-tech.com Document Version 1.2 09/07/2016 Page 1...
  • Page 2: Table Of Contents

    Table of Contents 1.0 Product Description……………………………………………………………3 2.0 Installation………………………………………………………………………3 2.1 Fiber connections………………………………………………………………4 3.0 Local/Remote Control. ………………………………………………………..4 4.0 USB 2.0 Control…………………………………………………………………4 5.0 SpectraSmart Software Control………………………………………………9 6.0 Front Panel Pinout Assignment Diagram…………………………………..12 7.0 Status Indicators………………………………………………………………14 8.0 Specifications………………………………………………………………….14 9.0 Troubleshooting……………………………………………………………….15 10 Appendix 1. Product Part Numbers…………………………………………15 Page 2...
  • Page 3: Product Description

    SR2001 & SR-2000 series 19” equipment chassis). To install in the chassis, orient the card with the Meridian logo at the top of the module and slide onto the top and bottom card guides in the chassis. Press securely on the top and bottom of the module to ensure that it is fully seated in the chassis so that the electrical connector mates with the chassis-mounted motherboard.
  • Page 4: Fiber Connections

    2.1 Fiber connections These cards are designed for singlemode fiber and are available with either FC or ST optical connectors. See part # selection guide in appendix for ordering details. 3.0 Local/Remote Control The card has one optical input port and four optical output ports with green-color LED associated with each output port.
  • Page 5 If the switches are set by the software / DIP switch in REMOTE setting / , when the USB is disconnected, the switch will stay in that position set by the software prior to being disconnected from the PC. When the DIP switch put back into LOCAL mode , each of the optical switches be configured as defined by the front panel DIP switches.
  • Page 6 Click button “Lock/Unlock Loadings”(4). Select desired Static Mode configuration by clicking squares (on/off) (3) under the Switch 1 2 3 4 of the “Static Mode”. Then click button “Apply to the card“. Confirmation message is appeared. Click “OK”. Page 6...
  • Page 7 Choose Remote Mode by clicking checkbox ” Static”, then click button ”Load Mode”. Remote configuration and static mode is saved to the card. If DIP Switch (2) on the front panel set to REMOTE, then Optic switches will be set in Static Mode configuration. “Current Switch Position”...
  • Page 8 Other features In window “1x4 All-Optical Fiber Switch Card Interface” click menu “View” and “Card Status”, where there is current info about this card. Page 8...
  • Page 9: Spectrasmart Software Control

    5.0 SpectraSmart Software Control SpectraSmart PC is a Windows 2000/XP/Vista/7 based Link Status Monitoring and Diagnostic System. The SpectraSmart scans card parameters in sequential order, checking for levels against factory/user set threshold values. If an error or out of range condition is detected, the PC will continue to scan through system components until the error condition has been detected 3 times before showing an Alarm message.
  • Page 10 This card has additional features that can be monitored in a window displayed using SpectraSmart by right clicking on the image of the card and then clicking from dropdown menu ”Card Status”. See the Card Status screen display below. When the front DIP switch position 5 is ON – remote mode (SpectraSmart control enable) the user can set ports active status to card.This information will be sent to the card and stored in non-volatile memory.
  • Page 11 Click the right mouse button on the front panel image of the card and choose “Card memory” from the dropdown menu the user can read the card’s information including the part number, date of manufacture, working (operational) days, and maximum operating temperature of the card. You can control activity all port in static or dynamic modes like it discribe in USB Interface Control.
  • Page 12: Front Panel Pinout Assignment Diagram

    6.0 Front Panel Pinout Assignment Diagram Figure below shows the front panel layout, connector location, indicator location and pinout assignment for the SX-4FX-x module. Figure 6.1 SX-4FX-x Front Panel Layout Diagram Page 12...
  • Page 13 Figure 6.2 SX-4FX-xJ Front Panel Layout Diagram Page 13...
  • Page 14: Status Indicators

    Status Indicators The above front panel layout diagram also list and describe the function of the various LED indicators.The front panel mounted indicators show pro-vide visual indication of the operational status of the card.The function of these LED indicators is as follows Power: Green (on) Diagnostic:...
  • Page 15: Troubleshooting

    Action: Check power supply to ensure that it is plugged in and turned on. If flashing continues, move module to another chasses or location in the same chasses, if available. If the problem still persists after reviewing the above items, please contact Meridian technical support (+1-516-285-0570, support@meridian-tech.com) 10 Appendix1 Product Part Numbers The table below lists the various part numbers and description that are available for this series of product.
  • Page 16 Meridian Technologies, Inc. 700 Elmont Road, Elmont NY 11003, USA Telephone: +1 (516) 285-0570 Fax: +1 (516) 285-6300 E-mail: support@meridian-tech.com Web: www.meridian-tech.com Document Version 1.2 09/207/2016 Page 16...
