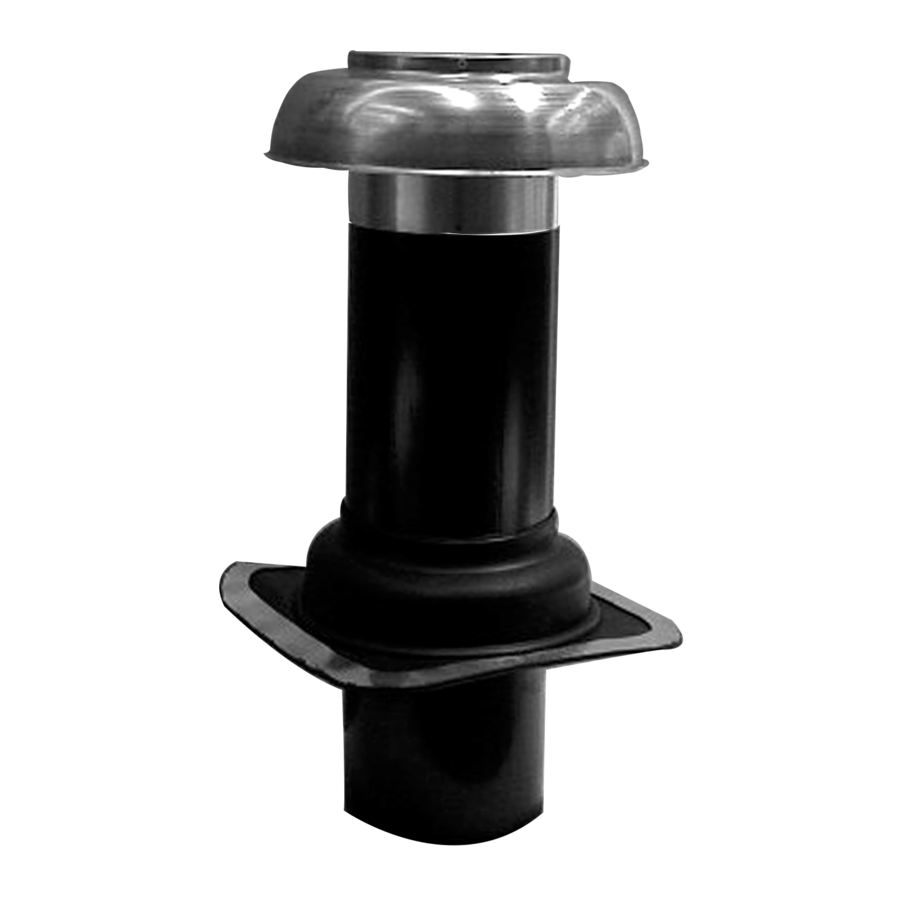

Roof Cowl Kits
Please ensure these instructions are read thoroughly before commencing installation
and that all documentation is left with the home owner on completion of installation
CAUTION
• Before use, please check that the supply voltage and that of the appliance are the same (see product rating label).
• All wiring and wiring connections must comply with national wiring rules and regulations.
• Any changes or modifi cations made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they are capable of, and have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• In case of damage to the supply cord, switch off the device and do not tamper with it. Damaged supply cords must only be repaired or
replaced exclusively by the manufacturer or by an appointed representative. Failure to comply with the above may endanger the safety of
people and cause possible damage to the whole system.
• Precautions must be taken to avoid the back-fl ow of gases into the room from the open fl ue of gas or other fuel-burning appliances.
TECHNICAL
• For retrofi t applications just cut and attach supplied clips to hold seam together.
• Suitable for roof pitches up to 40°.
• Provides 10 - 20mm continuous contact with fl ashed tube providing a watertight seal.
• Clear markings make for easier cutting to tube size.
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Duct
Description
(mm)
Medium Duty
200
Heavy Duty
200
Specifi cations are subject to change without notice
Order Code
DCT3603
DCT3604
Page 1
