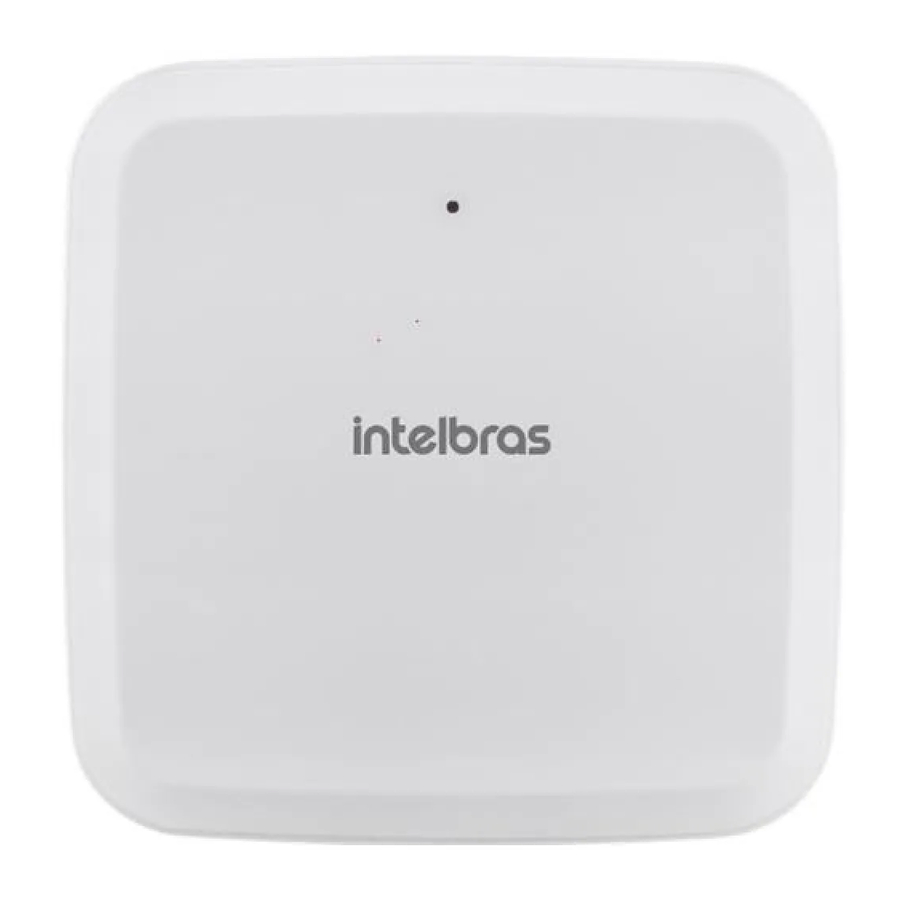

Intelbras PGM 8000 User Manual

Expander
Congratulations, you have just purchased a product with Intelbras quality and security.
The PGM expander module has a relay output, giving the user the possibility to automate several
devices in your home or business, such as gates, automatic curtains, lamps and much more.
1. Care and security
» Follow all instructions in the manual/guide for product installation and handling.
» Perform the installation in environments not susceptible to factors such as rain, fog and
splashes of water.
» Wireless communication technology, when exposed to environments with high power
radiation, may suffer interference and have its performance impaired. Example: locations
near TV towers, AM/FM radio stations, amateur radio stations, etc.;
» Clean only the external part of the device, using only a damp cloth (do not use chemical
solvents);
» Do not subject the device to excessive pressure or knocks/falls;
» Do not cover the device with adhesives, paper or inks;
» Do not expose directly to sunlight;
» Confirm that the installation site is stable and appropriate;
» Only perform configurations and installations by qualified personnel.
This product has an internal battery/battery. After its useful life, the product must be
delivered to an Intelbras authorized technical assistance or directly perform the final
destination environmentally appropriate avoiding environmental and health impacts.
If you prefer, the battery as well as other Intelbras brand electronics without use, can
be disposed of at any collection point of Green Eletron (manager of electrical and
electronic waste with which we are associated). If you have any questions about the
reverse logistics process, please contact us at (48) 2106-0006 or 0800 704 2767
(Monday to Friday from 8am to 8pm and Saturdays from 8am to 6pm) or via e-mail
suporte@intelbras.com.br.
LGPD - General Law for the Protection of Personal Data: Intelbras does not access,
transfer, capture, or perform any other type of treatment of personal data from this
product.
2. Technical specifications
Frequency of operation
Modulation
Maximum trans. power
Transmission range¹
DC supply voltage
AC power supply
Internal non-rechargeable battery
User guid
PGM output number
Operating temperature
Compatibility
PGM 8000
Anatel Homologation
Protection against violation
Anti-jamming
Color
Dimensions (W × H × D)
Weight
1Intelbras wireless systems are tested to the highest standards and bring high reliability, but due to
1
their use/installation in various scenarios, some considerations must be taken into account:
» Transmitters/receivers may be disturbed by radio signals, natural interference, location of
operation of the devices, climatic issues and other adversities affecting the transmission
of data regardless of the frequency or technology used, since the means of transmission is
adverse and different from place to place.
» The receivers/transmitters of the devices have an internal processing time, and only receive
the data necessary for communication between them after this particular time for the
system.
» Wireless devices must be tested regularly to determine if sources of interference exist and
to protect against possible failures.
² The maximum range distance between the AMT 8000 alarm center and the PGM 8000 expander is
up to 600 m with direct line of sight in the open field.
3. Features
» Low battery indication.
» Long battery life;
» Easy installation;
» Key for registration.
» Tamper protection key;
» Two Power options: AC 100/240 Vac ~ 50-60 Hz or DC: 12 Vdc to 24 Vdc;
» 1 internal 3 Vdc (CR2032) battery.
» Transmission frequency 915 MHz - 928 MHz;
» Protection against malicious signals;
» Encryption on data transmission between devices.
4. Registration at the center unit

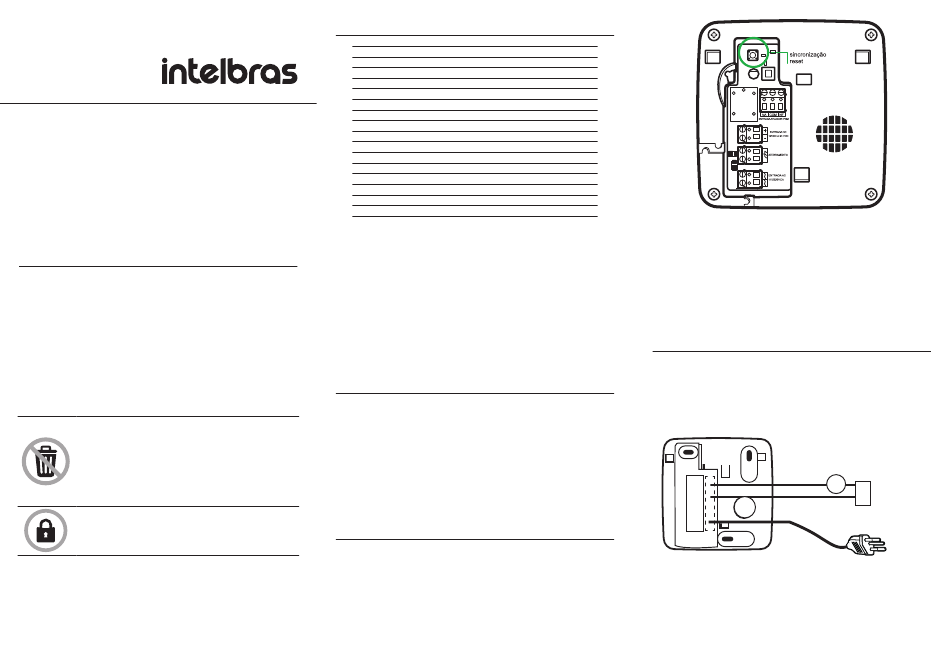

To register the PGM expander with the alarm center, press the synchronization button on the
center and then press the button on the expander located at the back, as shown in the image
below, removing the product from the mounting bracket. Check if the LED on the front part of the
amplifier will flash green, indicating the success of the registration. If the LED flashes orange, the
signal is intermittent or weak and if the LED flashes red, there was some fault and the process
must be repeated. The amplifier will be addressed with the center unit according to the sequence
performed, respecting the maximum limit of 16 devices of this type.
RF signal from 915 to 928 MHz
DSSS BPSK 40 kbps
11 dBm
600 m with direct line of sight open field²
12 Vdc to 24 Vdc
Input: 100/240 Vac ~ 50-60 Hz
3 Vdc CR2032
1 PGM 10 A / 125 Vac 10 A / 250 Vac
-10 to 50 °C @ 90% of humidity
8000 Wireless Security System
Yes
Tamper key
Against invasive signals
White
122 × 122 × 47 mm
200 grams
PGM Expander Synchronization Key
To check if the PGM expander installation location is within the RF signal range, press the sync
button, and if the LED flashes green the communication is correct, in orange the communication
is intermittent/weak and in red there is no communication with the center unit.
To register other expanders/accessories through keyboard commands and further information/
configurations, please refer to the complete manual of the AMT 8000 center.
Note: when registering the PGM 8000 expander to the alarm center using the synchronization
key, perform the practice safely, because the alarm center is energized, so as not to bring risks
to the installer and the equipment.
5. Installation
The PGM 8000 expander has a specific base to be fixed on various surfaces, such as walls,
among others. To remove the expander from the base when it is fixed on some surface, slide
it up and to put it back on the standalone base if it is fixed or in manual use, follow the base's
indicative marking.
Fix the base with screws³ or double-sided tapes³ on the desired surface and after arranging the
wires of the installation as shown in the illustration, fit it to the base. Make sure that the base
is correctly fixed to the surface and the expander on the base, so that they do not come Off.
Power supply
AC input
110 V 250 Vac
Bracket for fixing on surfaces and output location of installation wires
³ Screws, double-sided tape and other accessories are not included with the PGM expander and must
be purchased separately.
Device to
be triggered
