Blaze BLZ-26-ELSMK Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

ATTENTION

INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.

CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE

INSTALLING OR OPERATING.

WARNING

Observe all local codes and ordinances when installing this appliance. If no local codes are applicable,

wire unit in accordance with the latest Naonal Electrical Code, ANSI/NFPA 70, or the Canadian

Electrical Code, CSA C22.1, whichever is applicable.

CALIFORNIA PROPOSITION 65 WARNING

WARNING: This product can expose you to chemicals including carbon monoxide, which

are known to the State of California to cause cancer and birth defects or other

reproductive harm. For more information, go to: www.P65Warnings.ca.gov

Table of Contents

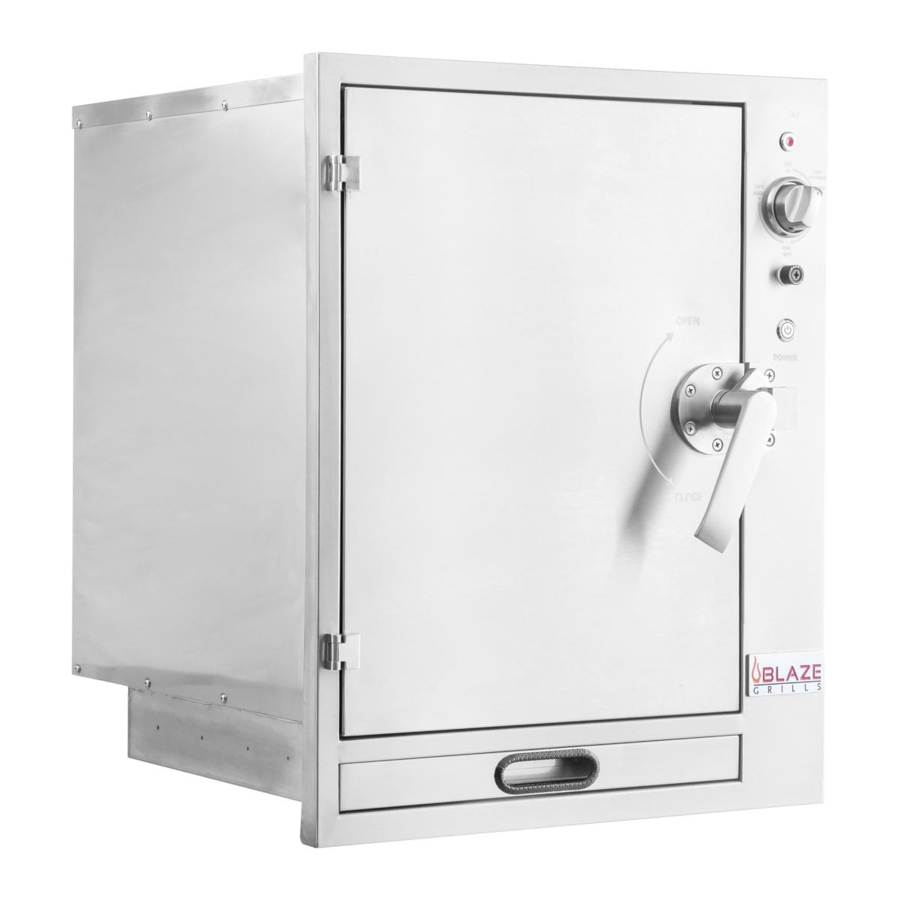

Blaze® Electric Smoker

BLZ-26-ELSMK

6620 Greenwell Springs Rd, Baton Rouge, LA 70805

USA Phone: 866-976-9510

CustomerService@BlazeGrills.com

BLAZEGRILLS.COM

- Blaze -

Table of Contents

Need help?

Do you have a question about the BLZ-26-ELSMK and is the answer not in the manual?

Questions and answers

Summary of Contents for Blaze BLZ-26-ELSMK

Page 1 Blaze® Electric Smoker BLZ-26-ELSMK ATTENTION INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER. CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING OR OPERATING. WARNING Observe all local codes and ordinances when installing this appliance. If no local codes are applicable, wire unit in accordance with the latest Naonal Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1, whichever is applicable.
Page 2: Table Of Contents
Warnings Contact Information Dimensions & Smoker Specifications Parts Locating the Appliance Installation Operating Instructions 12-13 Smoking Wood Flavor Guide Food Temperature Chart Care and Cleaning Troubleshooting 18-19 Warranty Information Product Registration WARNING BURNING WOOD CHIPS GIVES OFF CARBON MONOXIDE, WHICH HAS NO ODOR AND CAN CAUSE DEATH.
Page 3: Warnings
WARNING • If the informaon in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. WARNING Read the installaon, operaon, and maintenance instrucons thoroughly before installing, • operang, or servicing this equipment to reduce risk of fire, burn hazard, or other injury. This manual should be retained for your informaon.
Page 4 Following the guidance of this book will help ensure many years of outdoor cooking equipment. Should you have any questions about cooking with or caring for your Blaze Electric Smoker, we are here to help. Contact Blaze Outdoor Products Customer Service at:...
Page 5 Read and follow all warnings and instructions before assembling and using the smoker. Follow all warnings and instructions when using the smoker. KEEP THIS OWNER’S MANUAL FOR FUTURE REFERENCE. THIS MANUAL APPLIES TO THE FOLLOWING BLAZE PRODUCT...
Page 6 Model: BLZ-BIE-SMK Cutout Dimensions 20 3/8”W x 20”D x 25 1/2”H* This air gap serves multiple purposes, such as preventing a build-up of heat in the island cavity and helping provide proper airflow for combustion and/or cabinetry. Primary Ignition Heating Element Cooking Rack Dimensions (3 14 7/8”...
Page 7 Island MUST BE VENTED on both sides top and bottom if you have other natural gas appliances, bottom • vented if you have other propane appliances. Vented at the top and bottom if you have both gas types plumbed to or through your island. Smoker sits on platform for support.
Page 8: Parts
Parts Breakdown...
Page 10 Location of Appliance The Blaze Electric Smoker is designed to be built into a BBQ Island or Outdoor Kitchen. It is required that the smoker be placed on a non-combustible surface. Most importantly, this is an outdoor appliance. Ensure your appliance is positioned safely away from anything that can catch fire.
Page 11: Installation
Installation Instructions INCLUDED: SMOKE RELOCATION KIT Kit Includes: Two Hose Clamps One Stainless Steel Smoke Trim Kit that will be on the outside of the island One Heat resistant smoker vent hose Instructions: Attach the one side of the hose to the smoker outlet on the back of the smoker. Make sureyou place the hose clamp over the hose before attaching and secure down.
Page 12: Operating Instructions
Operating Instructions Warning: Always use a 3-wire grounded outlet wired for 120 volts which is GFCI protected at 15 or 20 amps. If in doubt, contact a qualified electrician. Do not operate any other appliances or electrical devices on the same circuit as the smoker. This smoker is intended for outdoor use only.
Page 13: Smoking
Remove the lid from the smoker box and add wood chips. Only use wood chips, and never wood chunks. Replace the smoker box lid and slide back into smoker. Remove the cooking grids and adjust the wire cooking grid support brackets to the desired height for the items you are smoking.
Page 14: Wood Flavor Guide
• After 20 minutes, set your temperature to your desired smoking temperature. By now, your wood chips should be producing ample smoke. • Place your food into the smoker and get smoking! Wood Types for Smoking Always use a hardwood that has been seasoned for at least 6 months. •...
Page 15 Burns extremely rapidly with a light and Good with fish and meats distinctive flavor Medium floral smoke with a taste of spice Good with meats and vegetables and cinnamon Beech A mild hardwood like Oak Good with meat and seafood Birch Medium hard wood similar to maple Good with pork and poultry...
Page 16 Doneness of meat should always be determined using an instant-read meat thermometer inserted in the thickest part of the meat and away from the bone. While USDA temperature guidelines are valuable for food safety, we find them often overdone. Many restaurants cook temperatures aligned more with the “gourmet”...
Page 17: Care And Cleaning
Care and Cleaning Your Electric Smoker is made from high-quality 304 stainless steel and engineered for durability. Simple care and cleaning will provide a lifetime of service. NOTE: Always wait until your appliance is completely cool before cleaning. You should clean your appliance after each use to maintain the overall appearance over the life of your appliance.
Page 18: Troubleshooting
Troubleshooting SAFETY INFORMATION WARNING DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
Page 20 Warranty Registration If you have purchased a Blaze Product, you must register your product within 30 days of purchase to validate the warranty and maintain your original receipt to get parts for the appliance. You may register your appliance at www.blazegrills.com by selecting Support, and then selecting Register your Product.
Page 21: Product Registration
Street Address ______________________________________________________________ Street Address Line 2 _________________________________________________________ City__________________ State/Province/Region____________________ Zip/Postal Code______________________ Country________________________________ What is the model number of the Blaze product purchased? ______________________________________________________________________ What size Blaze product did you purchase? ______________________________________________________________________ Where did you buy your Blaze product? ______________________________________________________________________...
