Summary of Contents for DIAL CP-M S-36LH-110-230

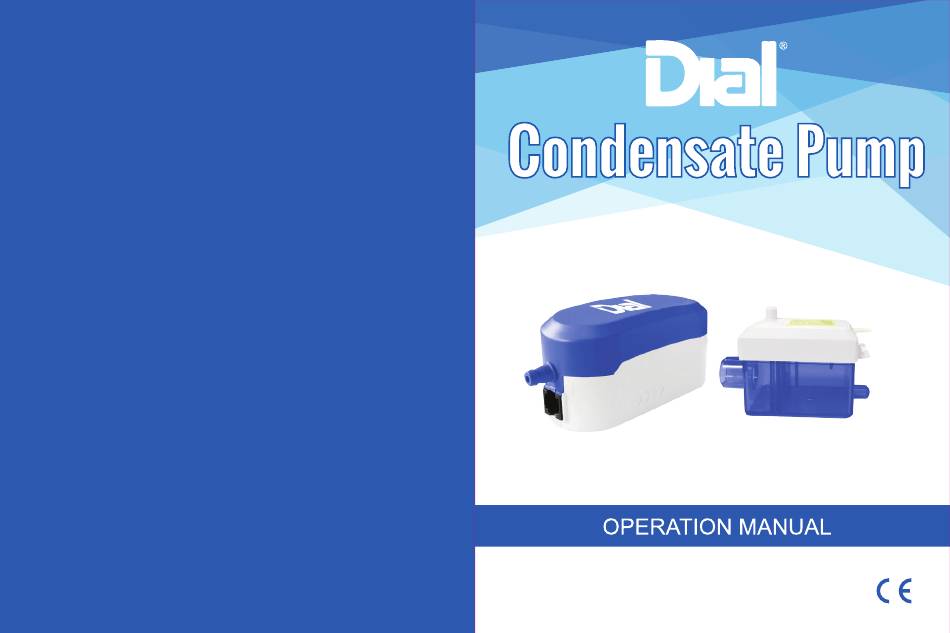

- Page 1 V 1.0...
- Page 2 Safety Safety and Pump Application ● Disconnect power supply to the installed unit (e.g. mini-split air conditioning unit) and to the pump before installing, removing or servicing the pump. ● This pump is certified for water applications only. ● This pump cannot be used to service swimming pool or marine applications. ●...
- Page 3 3. Technical specification 6. Installation ① Ensure correct assembly of the pump cover and signal pin, with the CP-M S-36LH-110-230 filter in place and the lid clipped firmly on reservoir. Model CP-M S-18LH-110-230 Voltage 100-230V / 50-60Hz Suction Lift Max. 2m (6.5ft) Discharge Head Max.10m (33ft)
- Page 4 ⑨ A high-level alarm switch should be wired into the air conditioning signal ⑤ Anti-vibration assembly. wire, to stop the operation of the air conditioning unit in the event of a pump failure. ⑥ Note direction of water flow. N.C. Indoor unit Outdoor unit N.O.
- Page 5 Warranty NOTE: This warranty covers all parts with material or manufacturing defects for two (2) years from date of purchase. The buyer’s only remedy is the replacement or repair of the defective parts. In no case can labor costs and any consequential damage be cited as a basis for a complaint.
