Features
No wiring, easy operation, just plug and use.
Receiver has 5 memory settings, no memory loss forever.
Green LED indicator for POWER ON and PROGRAMMING SETTINGS.
Connections
Make sure that the main power disconnect before installation.
1.
2.
To Connect the Base as shown in Fig.2 Before installing the into the mounting boxes, make sure there is no wire exposed at the
connection. (ATTENTION: the diameter of wire connect power is at least 0.75mm^2 not exceed 2.5mm^2）。
To connect the wires according mark L-OUT L-IN, N, fix the box and fix by the Screws.
3.
Pls note: the base need purchased separately
Instruction Manual for
OR-SH-1704, OR-SH-1705
2300W, 230~ 50Hz
433.92MHZ
300W, 230V~ 50Hz

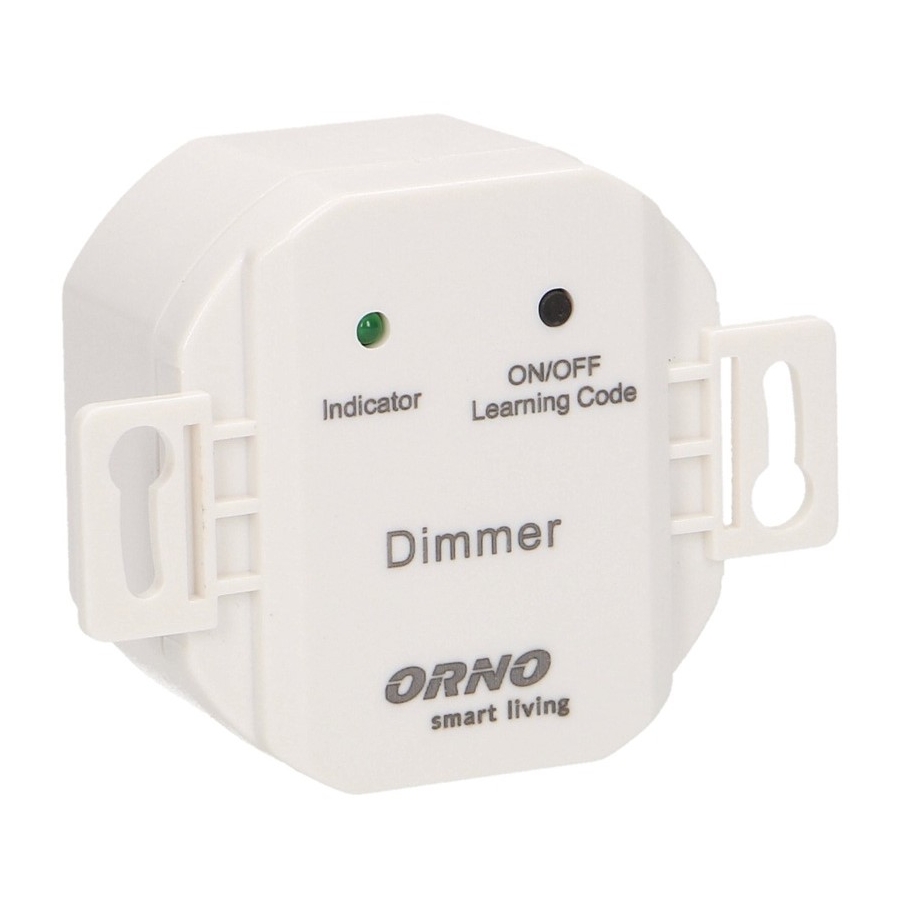

Dimmer (For incandescent lamp)
433.92MHZ
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Orno OR-SH-1704

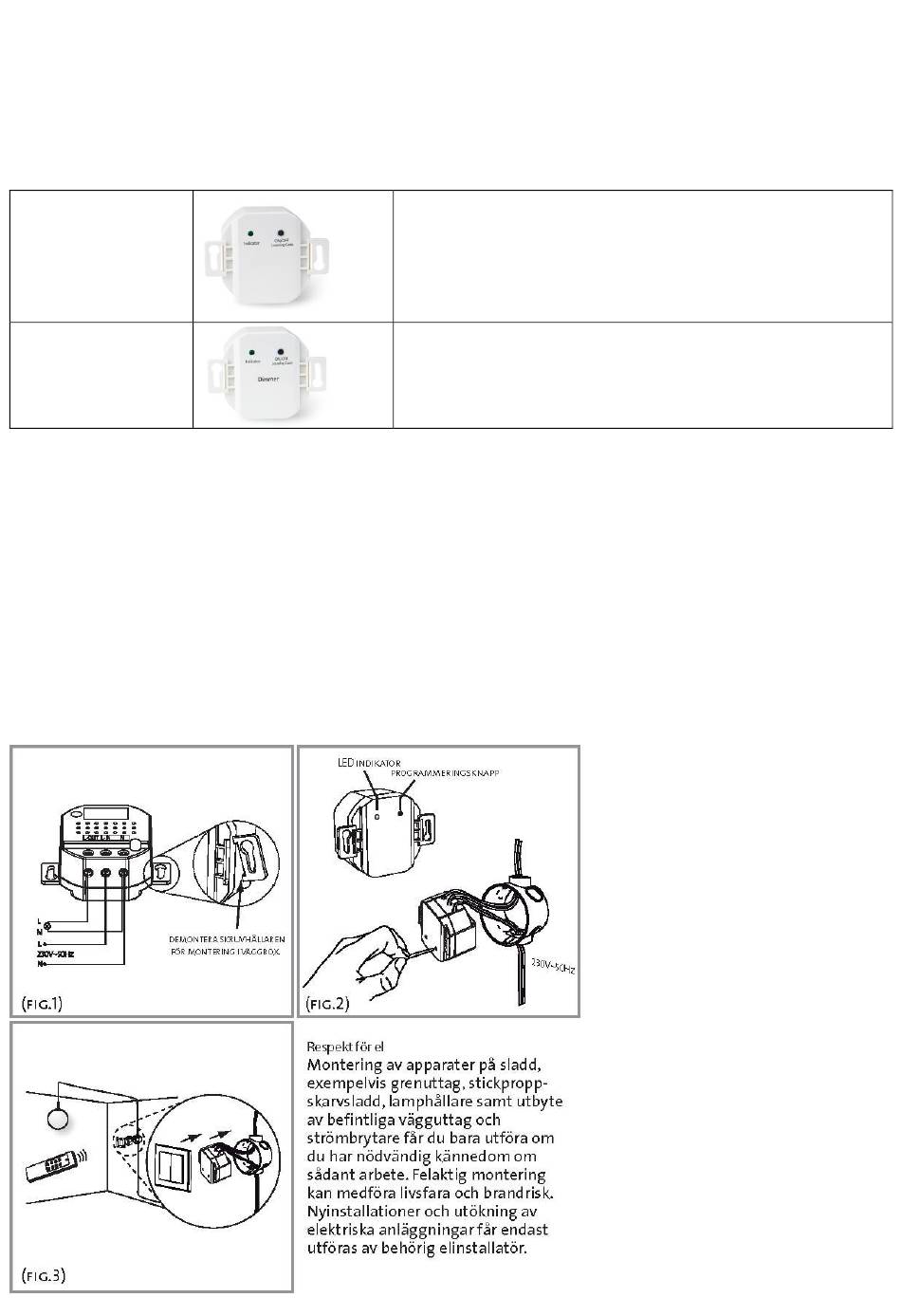

- Page 1 Instruction Manual for OR-SH-1704, OR-SH-1705 Item No. Remote receiver 2300W, 230~ 50Hz 433.92MHZ OR-SH-1704 300W, 230V~ 50Hz Dimmer (For incandescent lamp) 433.92MHZ OR-SH-1705 Features No wiring, easy operation, just plug and use. Receiver has 5 memory settings, no memory loss forever.
- Page 2 How to link a code To start program your transmitter with the receiver Receiver plugged on power Bring the transmitter near the receiver, push the self program button on receiver about 3-5 second. Receiver LED will blink slowly, press transmitter selected ON button Receiver connected lamp will on-off twice, code is confirmed and LED stops blinking.
