Summary of Contents for IDEAL Networks LanTEK III MPTL

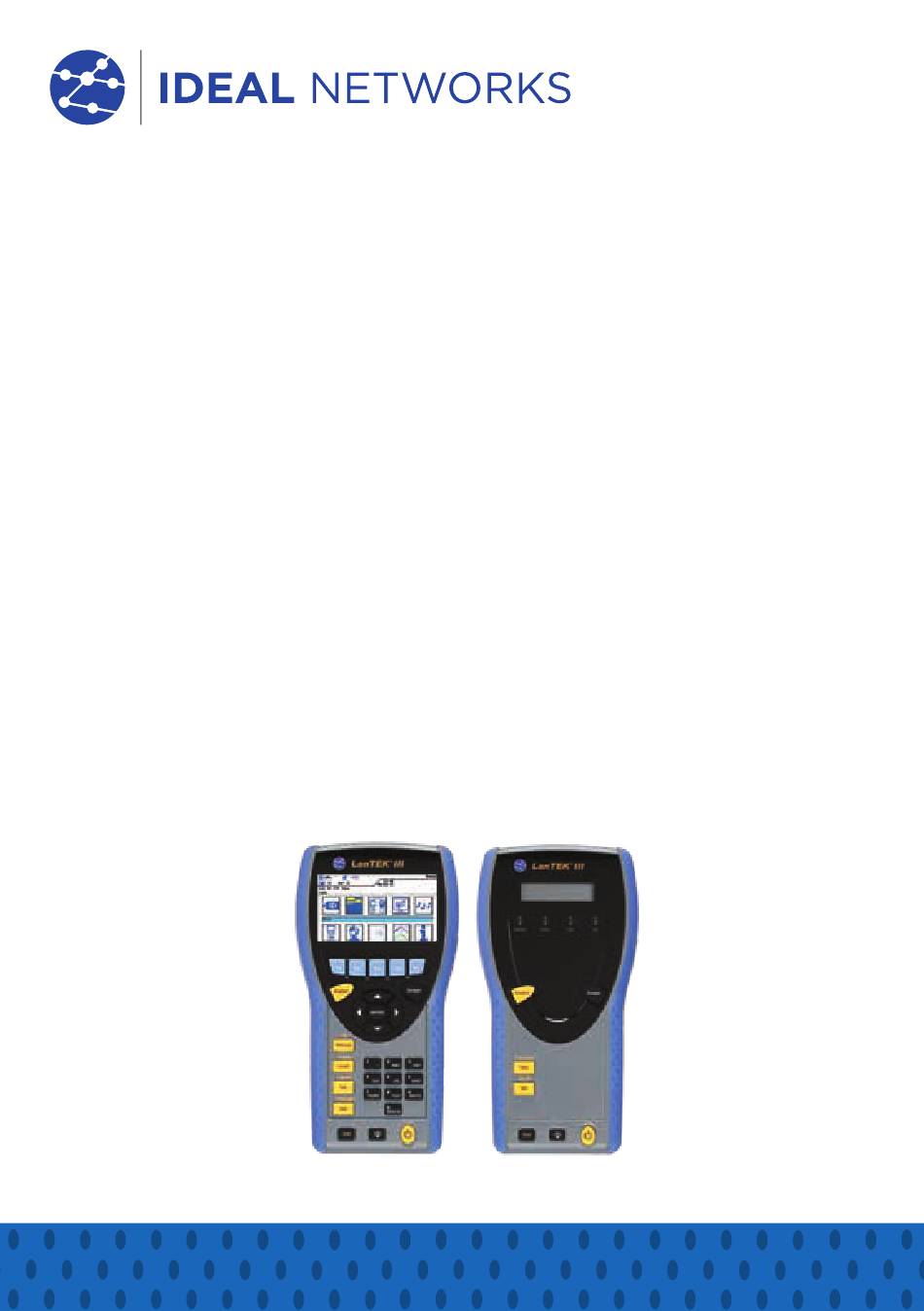

- Page 1 LanTEK®III LAN Cable Certifier Quick Reference Guide Modular Plug Terminated Links (MPTL) Proof of Performance...
- Page 2 Modular Plug Terminated Links (MPTL) Requirements An MPTL is a cabling link that is terminated with a socket (female) at one end and a plug (male) at the other. An MPTL consists of up • LanTEK III software version 3.200 or higher to 90 meters (295 ft) of horizontal network cabling.
- Page 3 Setup: Configuring MPTL tests 5. Enter a known NVP value for the 3. Highlight Twisted Pair Perm and 1. Connect the PL adapter to the main cable and press ENTER; press ENTER. handset and channel adapter to the remote. press F3 (Meas NVP) to calculate the Highlight the copper test icon and NVP for a known length of cable.
- Page 4 High Wycombe, United Kingdom www.idealnetworks.net Publication no.: 161847, Rev. 1 © 2018 IDEAL INDUSTRIES Networks Ltd. All Rights Reserved. LanTEK, IDEAL and the IDEAL NETWORKS logo are trademarks or registered trademarks of IDEAL INDUSTRIES INC. A subsidiary of IDEAL INDUSTRIES INC.
