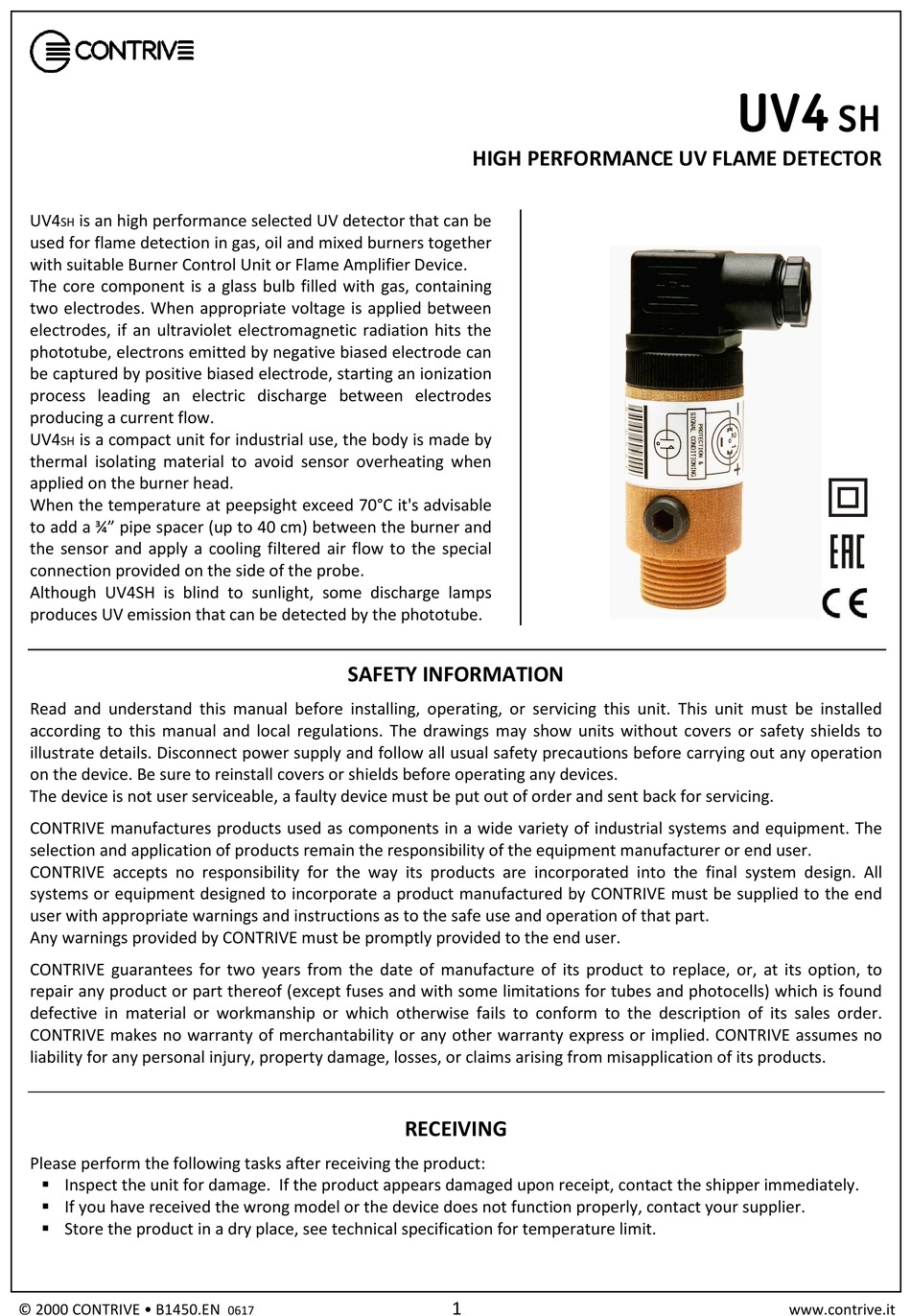

Contrive UV4 SH Manual

UV4 is an high performance selected UV detector that can be
SH
used for flame detection in gas, oil and mixed burners together
with suitable Burner Control Unit or Flame Amplifier Device.
The core component is a glass bulb filled with gas, containing
two electrodes. When appropriate voltage is applied between
electrodes, if an ultraviolet electromagnetic radiation hits the
phototube, electrons emitted by negative biased electrode can
be captured by positive biased electrode, starting an ionization
process leading an electric discharge between electrodes
producing a current flow.
UV4 is a compact unit for industrial use, the body is made by
SH
thermal isolating material to avoid sensor overheating when
applied on the burner head.
When the temperature at peepsight exceed 70°C it's advisable
to add a ¾" pipe spacer (up to 40 cm) between the burner and
the sensor and apply a cooling filtered air flow to the special
connection provided on the side of the probe.
Although UV4SH is blind to sunlight, some discharge lamps
produces UV emission that can be detected by the phototube.
Read and understand this manual before installing, operating, or servicing this unit. This unit must be installed
according to this manual and local regulations. The drawings may show units without covers or safety shields to
illustrate details. Disconnect power supply and follow all usual safety precautions before carrying out any operation
on the device. Be sure to reinstall covers or shields before operating any devices.
The device is not user serviceable, a faulty device must be put out of order and sent back for servicing.
CONTRIVE manufactures products used as components in a wide variety of industrial systems and equipment. The
selection and application of products remain the responsibility of the equipment manufacturer or end user.
CONTRIVE accepts no responsibility for the way its products are incorporated into the final system design. All
systems or equipment designed to incorporate a product manufactured by CONTRIVE must be supplied to the end
user with appropriate warnings and instructions as to the safe use and operation of that part.
Any warnings provided by CONTRIVE must be promptly provided to the end user.
CONTRIVE guarantees for two years from the date of manufacture of its product to replace, or, at its option, to
repair any product or part thereof (except fuses and with some limitations for tubes and photocells) which is found
defective in material or workmanship or which otherwise fails to conform to the description of its sales order.
CONTRIVE makes no warranty of merchantability or any other warranty express or implied. CONTRIVE assumes no
liability for any personal injury, property damage, losses, or claims arising from misapplication of its products.
Please perform the following tasks after receiving the product:
 Inspect the unit for damage. If the product appears damaged upon receipt, contact the shipper immediately.
 If you have received the wrong model or the device does not function properly, contact your supplier.
 Store the product in a dry place, see technical specification for temperature limit.
© 2000 CONTRIVE • B1450.EN

SAFETY INFORMATION

0617
HIGH PERFORMANCE UV FLAME DETECTOR

RECEIVING

1
UV4
SH
www.contrive.it
