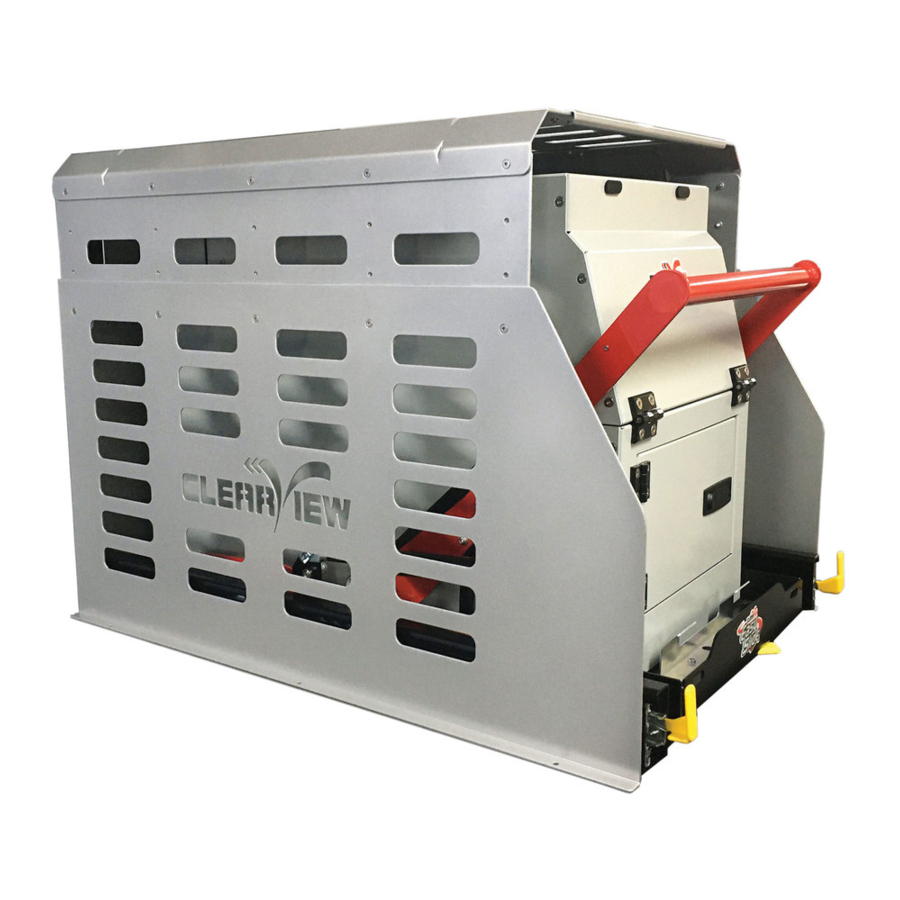

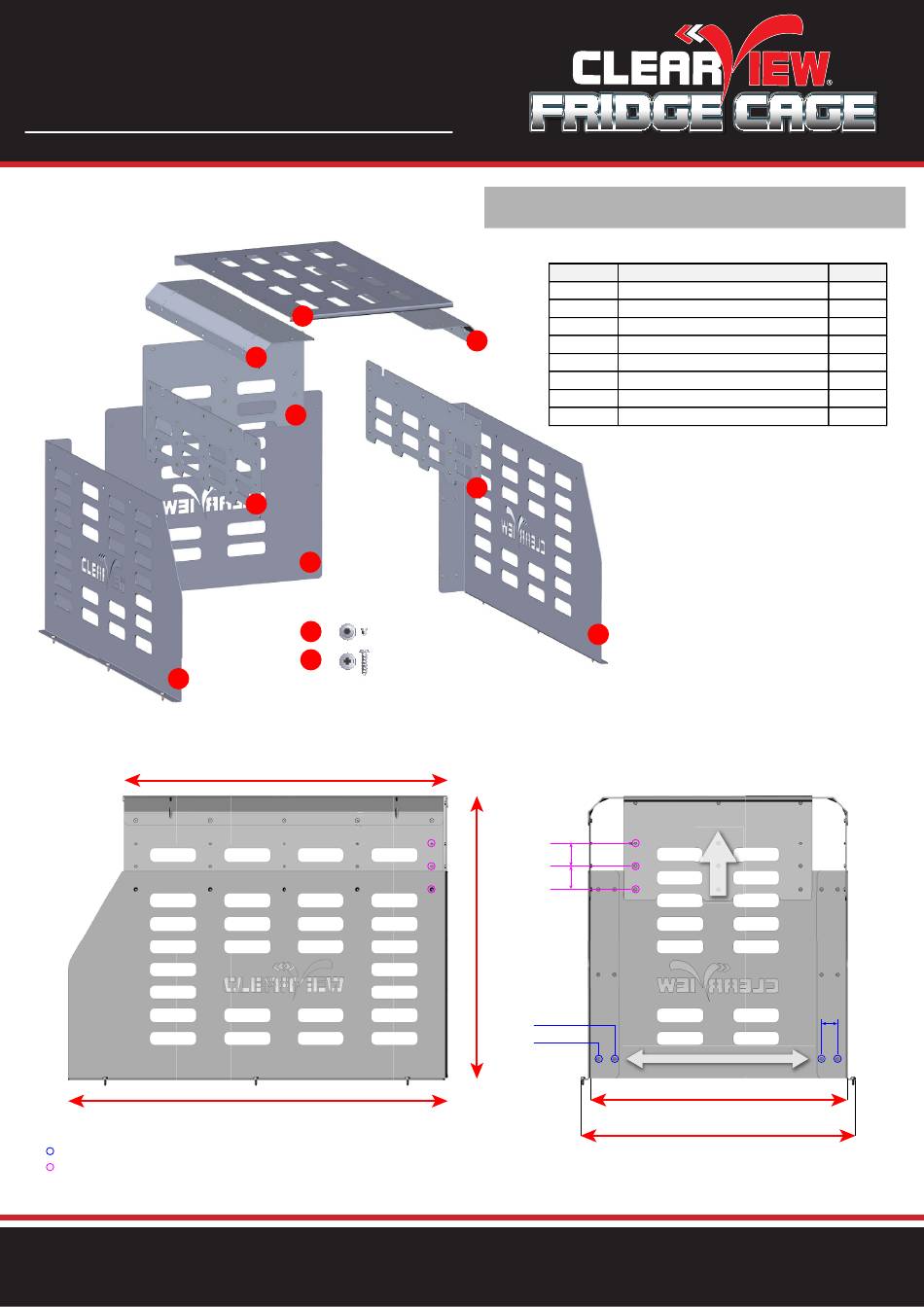

ES-100 / ES-150 FRIDGE CAGE
Package Contents
Number
Part
1A-1B
Bottom Side Panels
2A-2B
Height Adjustable Side Panels
3A-3B
Top Side Panels
3B
4
Bottom Back Panel
5
Height Adjustable Back Panel
6
Roof Panel
7
Hex Head Cage Screws (2.5MM)
8
Philips Head Cage Mounting Screws
2B
1B
50MM
50MM
620MM*
620MM*
ES-150
ES-100
INFO@CLEARVIEWACCESSORIES.COM.AU
35MM
566MM / 636MM
606MM / 676MM
Quantity
2
2
2
1
1
1
30
6
