Summary of Contents for Lug-All 6000-15

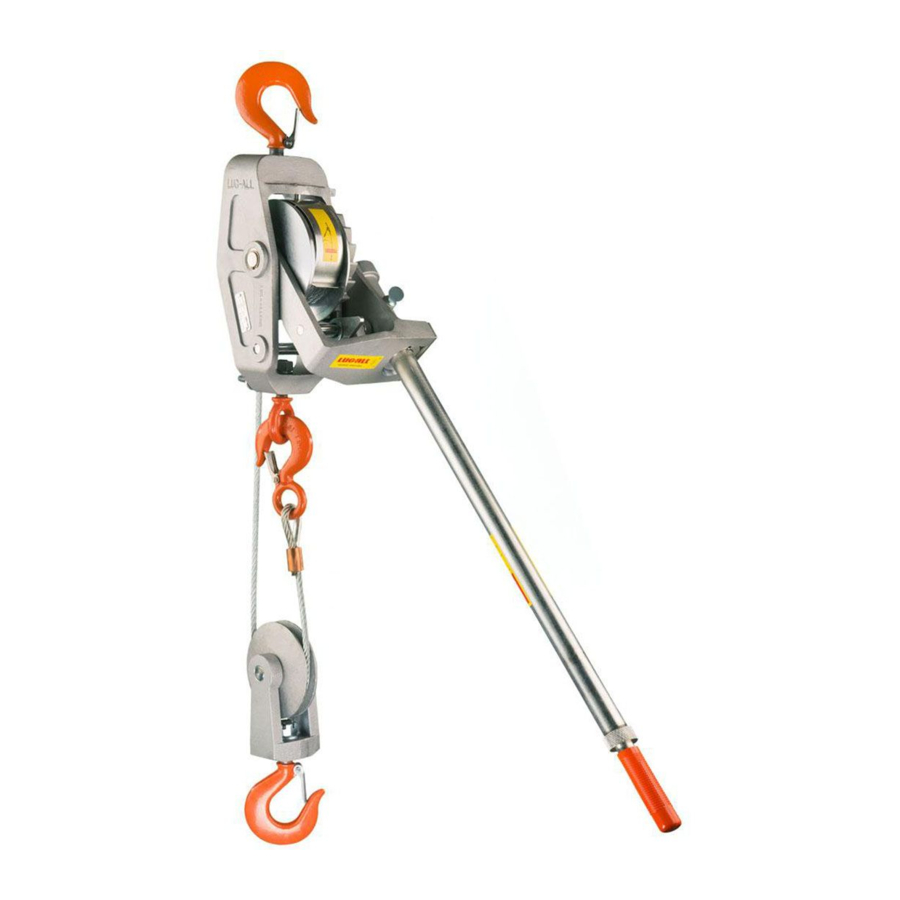

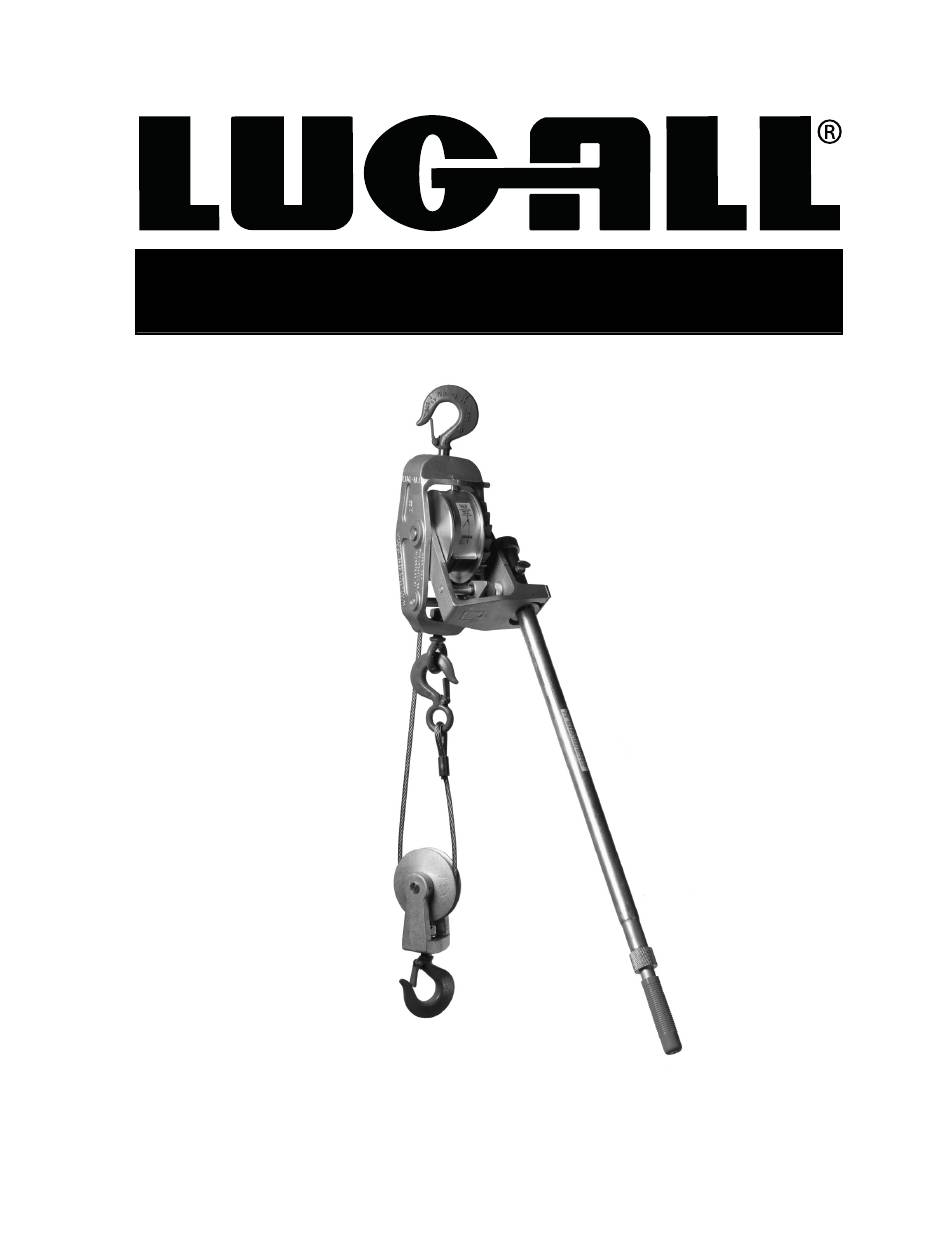

- Page 1 LAC-0308 Rev. 7/08 Operating Instructions For Your LUG-ALL 6000-15 Cable Winch-Hoist ® 604 Hemlock Road, Morgantown, PA 19543 Phone: (877) 658-4255 / Fax: (610) 286-9661 / Web: www.lug-all.com Copyright 2008 © LUG-ALL Corporation. All rights reserved.
-
Page 2: Table Of Contents
Operating Instructions For Your LUG-ALL ® 6000-15 Cable Winch-Hoist / Copyright 2008 © LUG-ALL Corporation. All rights reserved. TABLE OF CONTENTS for secure hoist operation. Examine the cable to ensure it is properly seated in the pulley wheel. SAFETY...............2 • Do not use to lift people, or loads over people. -
Page 3: Regular Lowering Lug-Alls
Operating Instructions For Your LUG-ALL ® 6000-15 Cable Winch-Hoist / Copyright 2008 © LUG-ALL Corporation. All rights reserved. minor, the stops on the u-frame will allow you to complete your immediate operation. DO NOT BEGIN A SUBSEQUENT OPERATION BEFORE REPLACING THE BROKEN SHEAR PIN! To replace shear pin: (1) remove the handle from the socket;... -
Page 4: Rigging
Operating Instructions For Your LUG-ALL ® 6000-15 Cable Winch-Hoist / Copyright 2008 © LUG-ALL Corporation. All rights reserved. 2) Press the trigger to hold the main frame pawl away from the ratchet teeth and pull out the c cable the required distance. -
Page 5: Daily Cable Inspections
Operating Instructions For Your LUG-ALL ® 6000-15 Cable Winch-Hoist / Copyright 2008 © LUG-ALL Corporation. All rights reserved. DAILY CABLE INSPECTIONS The pictures below illustrate the more obvious types of severely damaged cables. Cables exhibiting damage of this sort to any degree must be replaced immediately. -
Page 6: Troubleshooting
Operating Instructions For Your LUG-ALL ® 6000-15 Cable Winch-Hoist / Copyright 2008 © LUG-ALL Corporation. All rights reserved. TROUBLESHOOTING bearings. Apply light oil on all bearing surfaces and reassemble. 7) Check to see that both pawls engage solidly at the... -
Page 7: Cable Ratchet Winch-Hoist Pre-Operational Inspection
Cable Ratchet Winch-Hoist Pre-Operational Inspection Unit Number: ___________________ Model: ____________________ Date: ____________________ Inspection Result ( ) Inspection Point Pass Fail 1) Inspect hooks and latches for deformation, cracks, and wear. An elongated or bent hook is an indication that the hoist was overloaded. -
Page 8: Limited Warranty
LIMITED WARRANTY Seller warrants that the LUG-ALL described is free from defects in material and workmanship for a term of one year from the date of purchase by the original consumer. In the event of a defect, malfunction or other failure of the LUG-ALL product not caused by unreasonable use, failure to provide reasonable and necessary maintenance or damage to the product while in the possession of the consumer, the seller will remedy the defect or failure within 30 days of return to seller at the address specified below.
