Summary of Contents for Moza MOIN

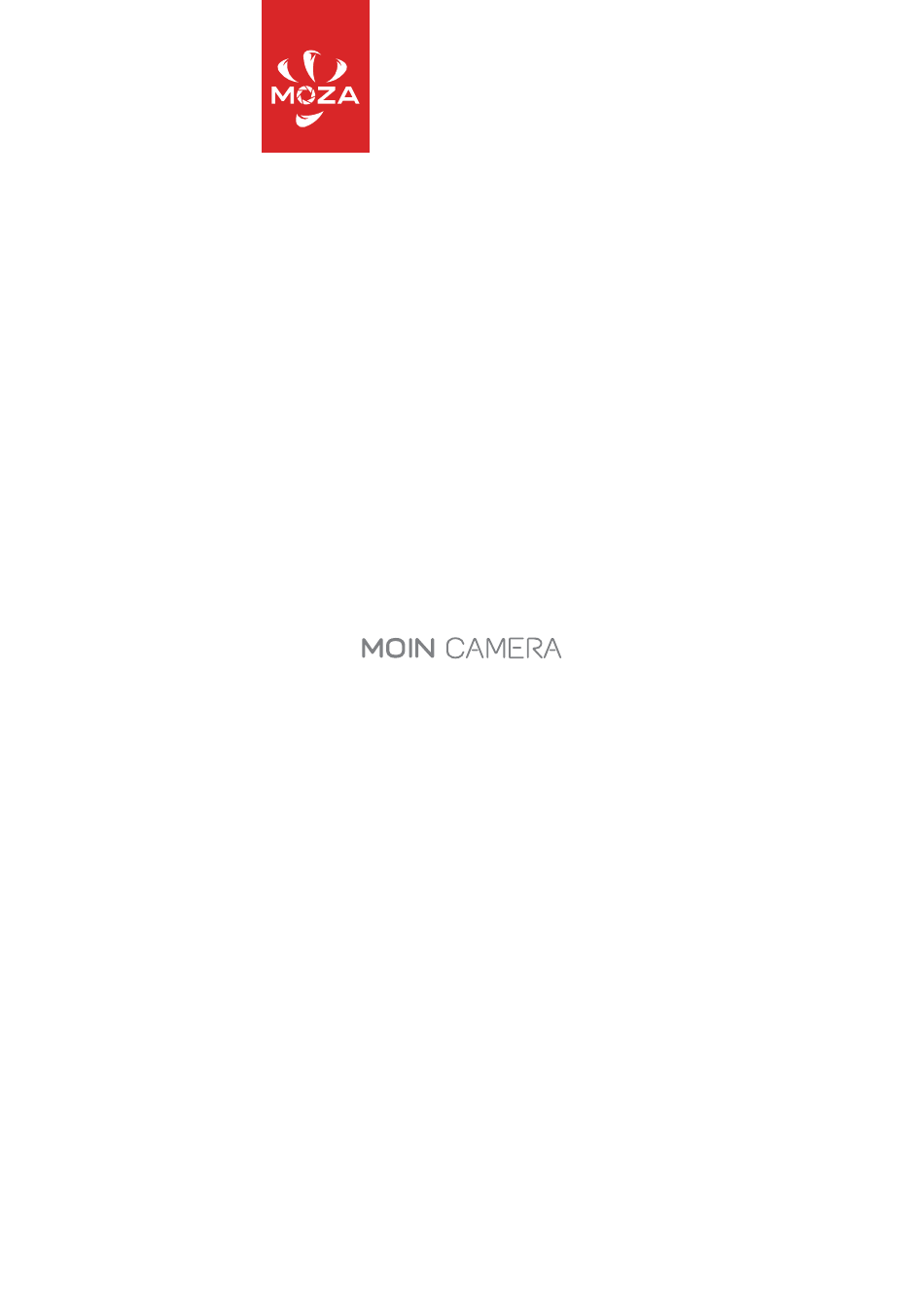

- Page 1 U s e r m a n u a l...
- Page 2 Disclaimer Operation Guidance Know About MOIN Camera Preparations Charging Memory Card Installment Switching On/Off Recording/Taking Pictures Buttons and Operations Buttons Function Indicator Light Instruction Touch Screen Operations Adjust the Screen Angle Start Using Recording/Photographing Recording and Photograph- ing Switch Mode...
- Page 3 Do not store the product above 60 ℃. The ideal storage temperature is 22 ℃ to 28 ℃. 8. MOIN Camera is a high precision device. Fall, impact, and extrusion may lead to damage or abnormal operation to MOIN Camera.
- Page 4 10. Please pay attention to dust and sand prevention when using MOIN Camera. Copyright notice: The images you take with MOIN Camera are not only for personal enjoyment, but also according to the copyright law, it is not allowed to use without the permission of the copyright owner. In addition, during the demonstration, performance and display items, even for the purpose of personal appreciation, shooting is prohibited.

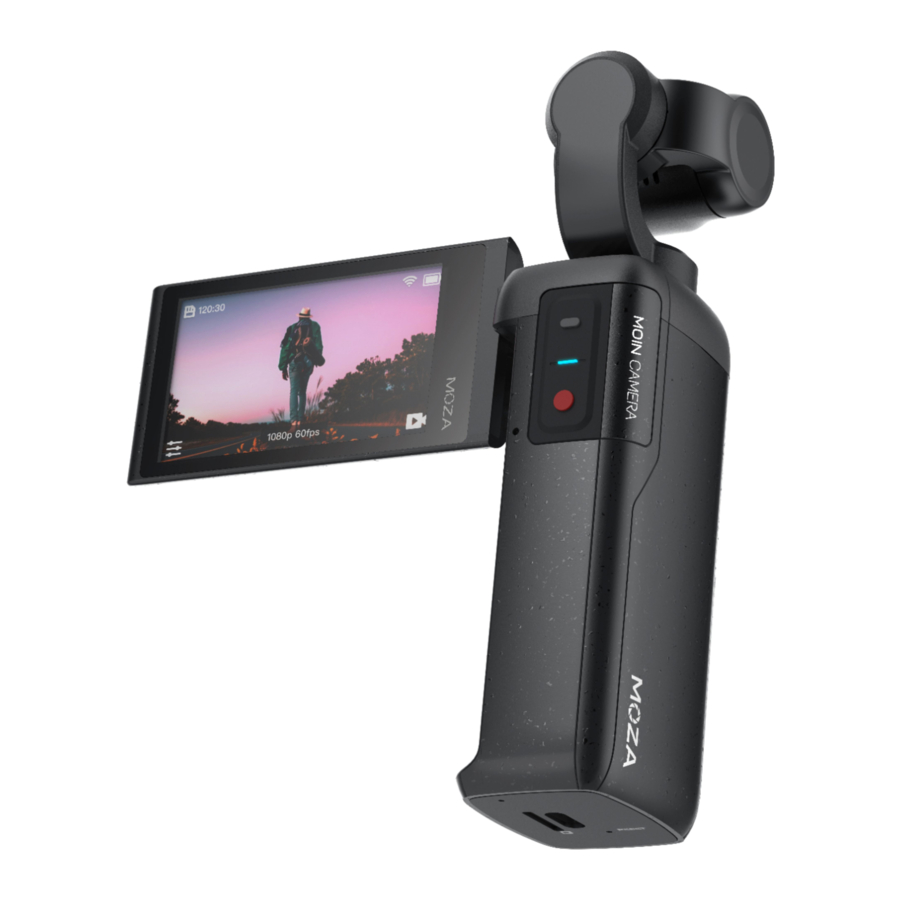

- Page 5 Moin Camera Roll Axis Motor Power Foldable and Tiltable Screen Indicate Light Pickup Record Camera Pickup Pitch Axis Motor Micro SD Card Slot Heading Axis Motor Type-C Interface Heat Elimination Area Reset Attention: 1. Do not block the pickup hole during recording, to avoid affecting the audio recording.
-
Page 6: Button And Operation
As shown in the figure, insert the micro SD card into the micro SD card slot, and the terminal face should be facing the side with the MOZA logo. Please insert the memory card until it clicks. It is recommended to use a memory card with a transmission speed of V30 or higher. - Page 7 Rotate the screen: the screen can be rotated down about 90°. can be rotated about 60°. Attention: 1.Please close the screen when you are not using MOIN Camera. 2.Do not rotate the screen too much to avoid damaging the device.
-
Page 8: Start Using
When MOIN Camera is in recording mode, click the record button to start recording. When in photographing mode, MOIN Camera starts taking photos. MOIN Camera will be in record mode by default. Switch recording and photographing mode 1.Quick switching... - Page 9 The above two following modes support face follow (UI). ● MOIN Camera will automatically follow the user after recognizing the face in selfie mode. ● When the camera is facing forward, you need to click the confirm (UI) to start following (with the above UI picture)
-
Page 10: Screen Lock And Unlock
● Screen Lock Swipe down from the top edge of the screen and tap the screen lock icon in the settings menu to lock the MOIN Camera screen. After the screen is locked, the screen will turn black automatically. ● Screen Unlock... - Page 11 DNG is selected as the recording format when it is suitable for computer post-processing according to professional purpose. Attention: The RAW file shot in this MOIN Camera is DNG. In the preview interface, click below to enter the mode adjustment menu.
- Page 12 Press the record key again to stop shooting. MOIN Camera takes static images in this mode, and cannot create dynamic images directly in this mode. To create dynamic images, please use computer software (e.g.
- Page 13 In the preview interface, slide from the right edge of the screen to the left to open the shooting parameter adjustment menu. MOZA color is a video color filter, which can only be enabled in normal video mode. When opened, a unique color filter will be provided.
- Page 14 In the setting page, tap ”Enter the System Setting”, tap “Language Setting” to choose the system language. Screen Auto Sleep and Auto Power Off You can set the Moin Camera to automatically stop the screen or automatically shut down after a period of no operation Auto Sleep...
- Page 15 Attention: The Auto Power Off won’t work while the device in this mode: ● Time-lapse ● Video ● Playback In the setting page, tap the icon to enter the setting system, tap ‘Wireless Connection’. Wireless info.: Check the device name and password Wi-Fi Frequency: Select the frequency 2.4G/5.8G/Auto Reset Connection: Reset the device name and password into factory setting...
- Page 17 (UI icon) The gimbal is not level When MOIN Camera is turned on in a non-horizontal position (pitch and tilt angle), it will maintain the inclination angle after turn on. To restore it to the horizontal position, Please double-click the recording button to return to the center.
- Page 18 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
