Summary of Contents for Posh POS 708

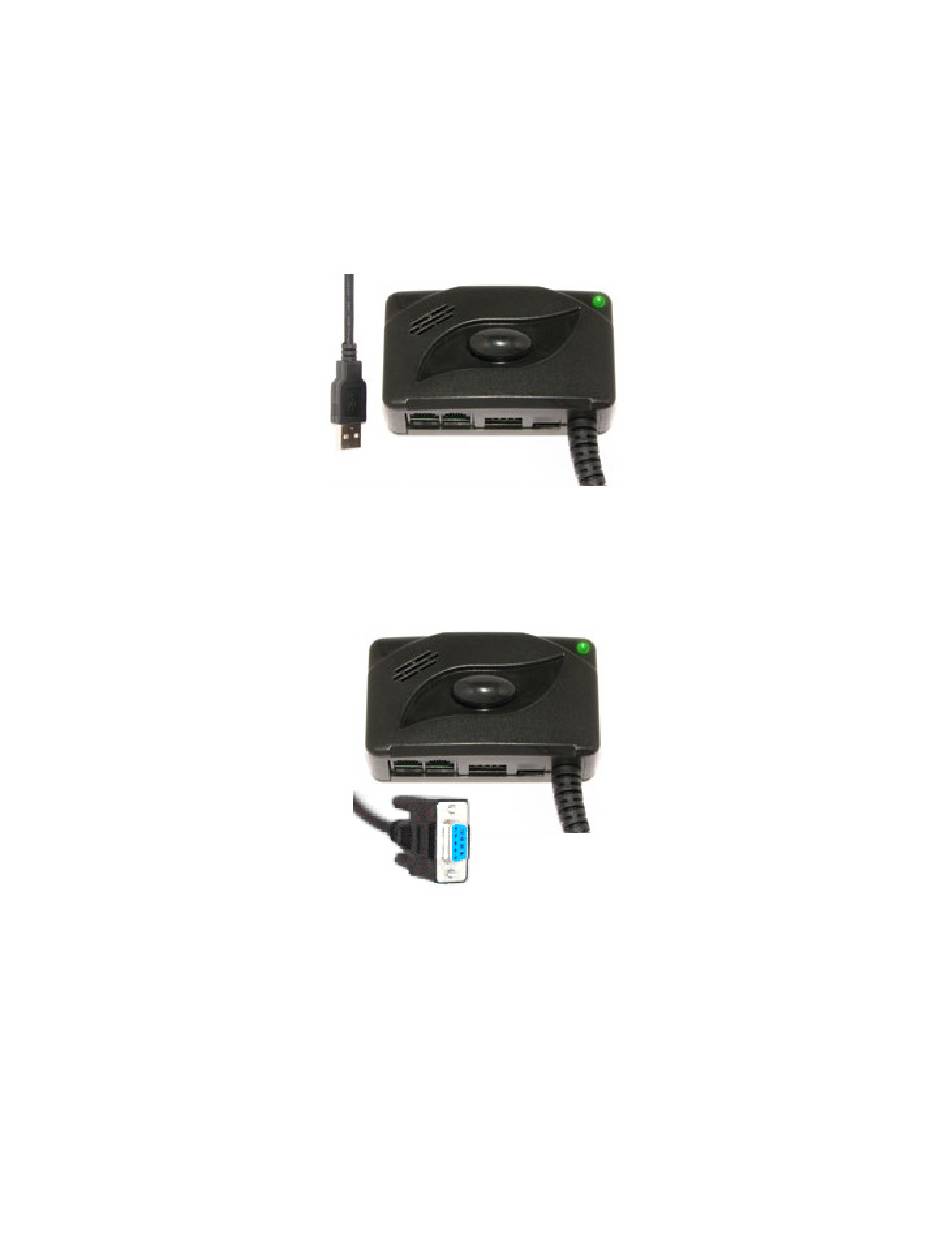

- Page 1 POS 708 USER MANUAL Ver. 1.6 POS 708 Dual Cash Drawer Alarm RS232...
- Page 2 The POS708 also uses the same RJ12 cash drawer port off the POS printers and a 24 Vdc Adaptor is used for its power ( 24Vdc Adaptor is included with the POS 708) . See Figure 1 for the Connection illustration. Note that the push button on the POS708 has no effect on any Cash Drawer Alarm options.
- Page 3 Features of the POS708 include: a dual RJ12 female connector, status LED, 24 Vdc external power supply (Included with POS708), and an alarm that is switch selectable. The POS 708 has no internal jumpers or options. You do not need to open the POS 708 to change the settings.
- Page 4 Alarm Option B Sw1 (OFF): Alarm will sound when drawer is open for XX seconds. Close drawer to turn off Alarm. Table 1: POS708 Dip Switch 2-3 POS 708-RS232 Communication setting: 9600 Baud, 8 Data Bits, No Parity, 1 Stop bit...
- Page 5 POS 708 USER MANUAL Ver. 1.6 Figure 6: Typical Epson Cash Drawer Wiring Figure 7: Typical Star Cash Drawer Wiring Drawer Drawer Direction Number Signal Signal Name Name Frame Frame Ground Ground Ground Drawer Drawer Input # 1 Sink # 2 Sink...
- Page 6 POS 708 USER MANUAL Ver. 1.6 Open Open Drawer Drawer Input Status Status Switch Switch Table 2: RJ12 Drawer 1 and Drawer 2 pin out The drawer solenoid is connected to + 24 VDC and to the Drawer Sink Signal. Typically pins 2 & 4 are used for drawer # 1.
- Page 7 POS 708 USER MANUAL Ver. 1.6 CONTENT INCLUDED: 1. Pos 708 Device 2. 1 Black Velcro double-sided adhesive strip. 3. Manual. WARRANTY: 1-year limited warranty for parts and Labor. Warranty is void if anyone other then the Manufacture’s repair department or an authorized repair center services the POS708.
- Page 8 POS 708 USER MANUAL Ver. 1.6 Note: This equipment has been tested and found to comply with the limit for a class A digital device, pursuant to part 15 of the FCC rule. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
