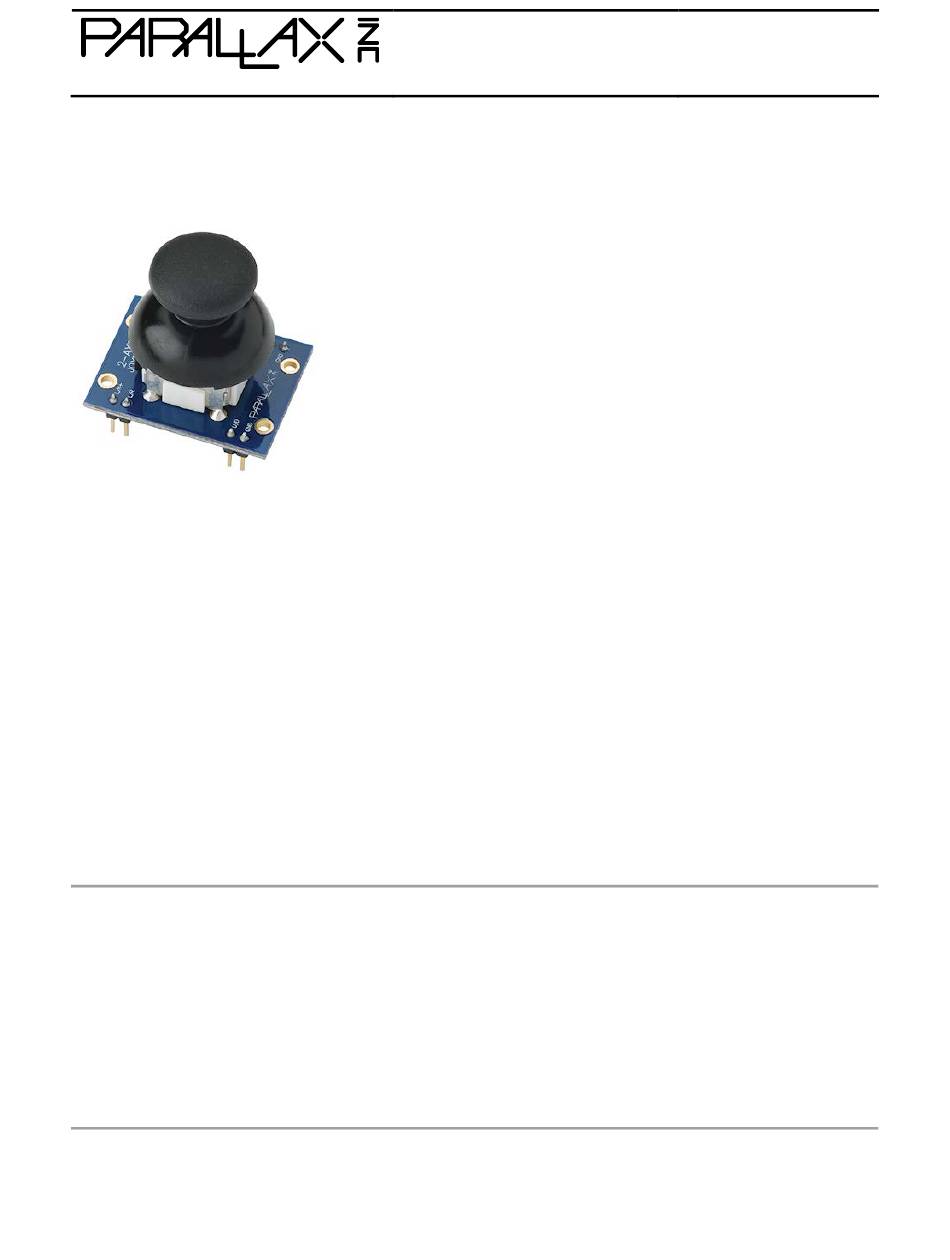

Parallax 2-Axis Joystick KickStart (#27800)

What It Can Do

Miniature two-axis analog joystick with up/down and left/right action
•
Spring-loaded movement always returns joystick to center position
•
Easy plug-in module for use in breadboards and custom circuits
•

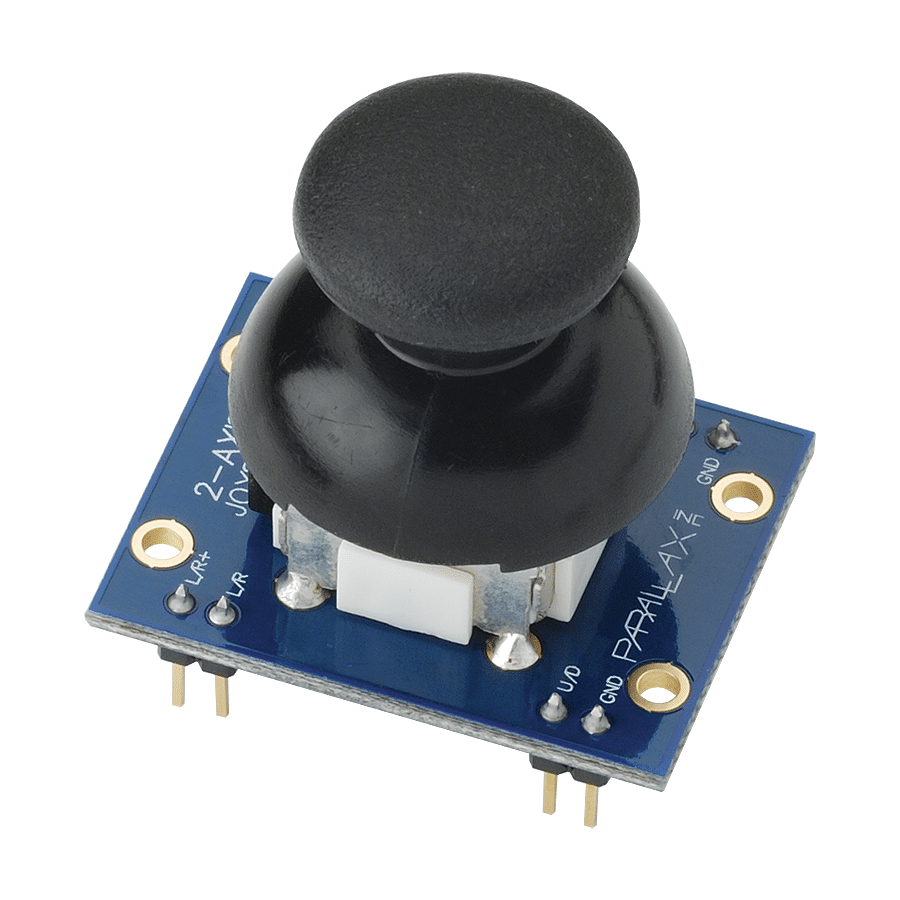

The 2-Axis Joystick provides a simple and convenient way to add X-Y control to a project. A
potentiometer attached to each axis provides proportional feedback of the up/down and left/right
positions. The joystick is spring-loaded, so that it always returns to its centered position when
you release it.
Depending on the microcontroller you use, a small assortment of external components is required
to complete the connection. These are noted in the Parts List. Refer to the appropriate diagram
under Basic Wiring.

Parts List

2-Axis Joystick
•
Basic Stamp Homework Board, Propeller QuickStart, or Arduino Uno microcontroller
•
22 gauge solid conductor hookup wire
•
(2) 220 Ω resistors, 1/8 or 1/4 watt, 5% tolerance (BASIC Stamp and Propeller interface)
•
(2) 0.01 μF ceramic disc capacitors (BASIC Stamp and Propeller interface)
•
