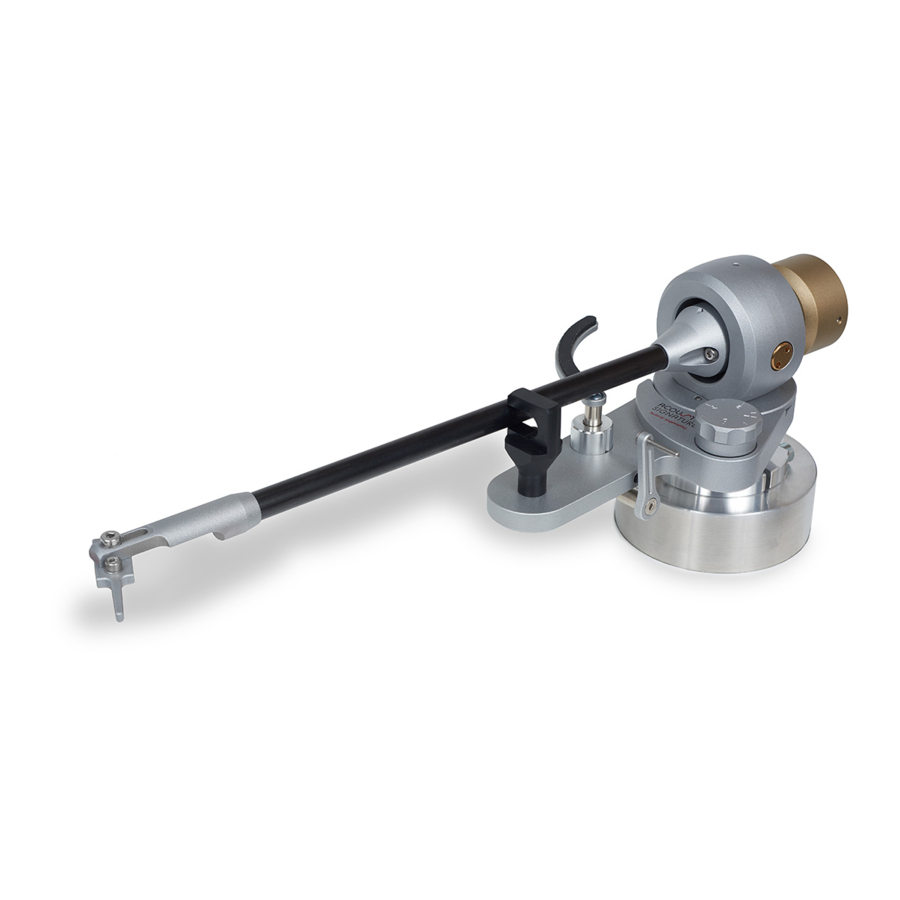

Acoustic Signature TA-2000 Instruction Manual

Pick-up arm
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Instruction Manual
TA-2000
Pick-Up Arm
08.06.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Acoustic Signature TA-2000

Summary of Contents for Acoustic Signature TA-2000

  • Page 1 Instruction Manual TA-2000 Pick-Up Arm 08.06.2017...
  • Page 2 The TA-2000 Series embraces three models TA-2000 9 Inch TA-2000 10 Inch TA-2000 12 Inch offering pivot to Stylus dimensions covering virtually all turntable requirements. These arms offer at reasonable cost outstanding built quality with all the most important features including azimut...
  • Page 3 Parts identification Armlift Armrest Balance Weight Armtube Headshell moving screw Azimut screws Anti Skating Headshell Lift Audio cable Cartridge lock screw’s...
  • Page 4 1. Preparing the arm mounting board To mount the TA 2000 tonearm your turntable need´s to have a 23mm thru hole combined with 3 M3 thread´s around it at the Radius of 20.5mm (see drawing). Rega Dimension. SME versions are also offered. Ensure that the thread´s are positioned as showed in the drawing.
  • Page 5 4. Mounting the cartridge Please take a look at the assembly drawing to mount your car- tridge to the tonearm. We use a headshell to mount your cartridge on. Use the provided screw´s of the cartridge or the 2 pcs. M2.5 screws we supply with the tonearm.
  • Page 6 6.1 Adjusting the cartridge adjustment plastic with Alu center pin. Use the plastic (showed in the left picture ) piece and place on top of the 2 metall pillars facing the Alu center pin downwards. Move the arm forward or backward so the center pin is exactly fitting into the small drilled marking on top of the arm.
  • Page 7 7. Longitudinal balance Position the arm so that it is clear of the armrest and the cartridge is clear of the turntable. Move the lift into the low position. Balance the arm by rotating the weight to move it backwards or forward as required to make the arm float around his zero point.
  • Page 8 Acoustic-Signature Made by AS-Distribution GmbH Hillenbrand Straße 10 D-73079 Süssen Tel: +49 7162 9474450 Fax: +49 7162 9474459 www.acoustic-signature.com E-Mail: info@as-distribution.de...
