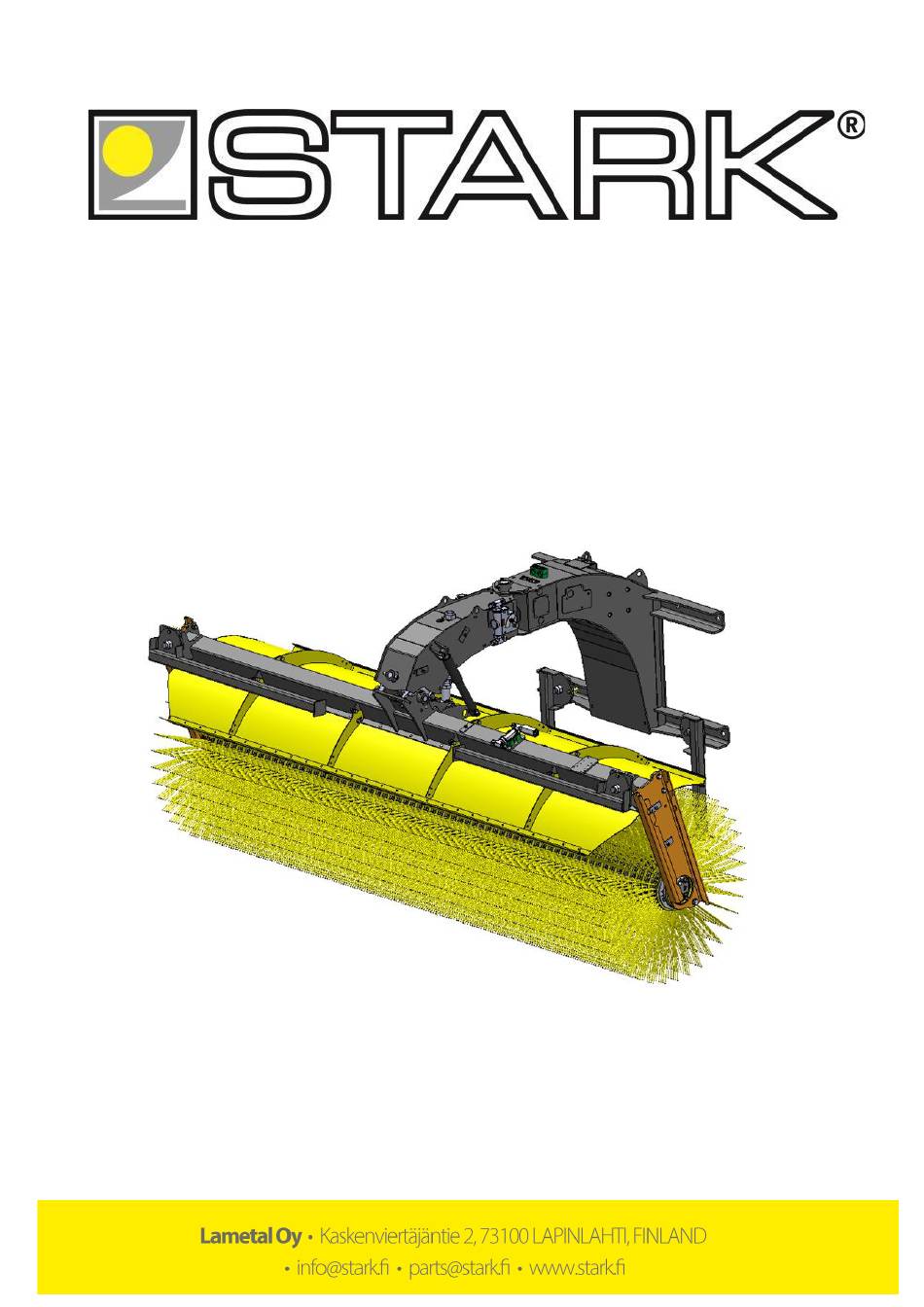

  • Page 1 Original Operating and maintenance manual Rotary broom...

  • Page 2: General

    For us, the long lifecycle and efficiency of your new equipment is a priority. To keep the broom in top working condition, read this manual carefully before using the equipment. STARK products are engineered and manufactured in Finland, and each of them is equipped according to the needs of the customer.

  • Page 3: Table Of Contents

    Table of contents General ..............................2 Read before use ........................... 2 DECLARATION OF CONFORMITY ....................4 PURPOSE OF USE .......................... 5 SAFETY PRECAUTIONS ........................5 IDENTIFICATION INFORMATION AND SPAREPARTS ..............6 4.1. Identification plate ..........................6 4.2. Maintenance services ........................6 MAIN PARTS OF THE ROTARY BROOM ..................

  • Page 4: Declaration Of Conformity

    1. DECLARATION OF CONFORMITY The original manufacturer’s EC declaration of conformity: Generic product name: Rotary broom Models: STARK RSW 2000 S, RSW 2500 S, RSW 3000 S, RSW 2500 C, RSW 3000 C, RSW 3500 C Manufacturer: Lametal Ltd Kaskenviertäjäntie 2 73100 LAPINLAHTI, Finland tel.

  • Page 5: Purpose Of Use

    2. PURPOSE OF USE The rotary brooms are intended for sweeping of streets, yards and areas of different size. 3. SAFETY PRECAUTIONS Make sure you know your equipment before you start using it. Equipment may be operated only by an individual who is thoroughly familiar with its use. Before connecting hydraulics to the base machine, make sure that: there is no-one between the attachment and the base machine the base machine is turned off and the parking brake is on.

  • Page 6: Identification Information And Spareparts

    (marked in the identification plate) when you order spare parts. For more information on maintenance and spare parts, please contact the STARK maintenance and spare part services or your retailer.

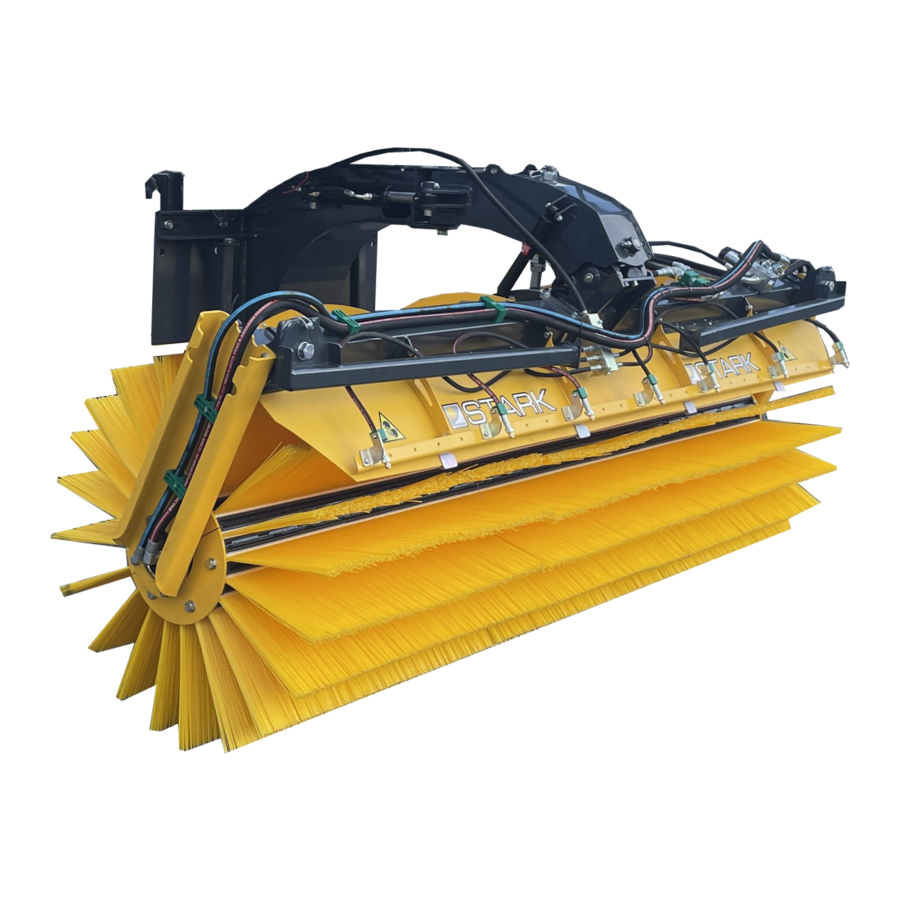

  • Page 7: Main Parts Of The Rotary Broom

    Picture 1. Main parts of the device 1) Mounting frame 2) Turn frame 3) Tilt frame 4) Sweeper frame 5) Turn cylinder 6) Flow control valve 7) Broom roll 8) Brush lamella 9) Mudguard 10) Bolt-on STARK FIT -fitting Sivu 7 / 20...

  • Page 8: Using The Rotary Broom

    6.1. Attaching the broom to the base machine The rotary broom is attached to the base machine by welded or bolted STARK FIT quick hitches. The machine is connected to a hydraulic system. Hydraulic circuit diagrams can be found in a later section in this manual. Ask your retailer for available STARK FIT quick hitches.

  • Page 9: Operating The Rotary Broom

    7. OPERATING THE ROTARY BROOM Check following before using the rotary broom: Broom is installed properly to the base machine All locking cotters are in place Hydraulic hoses are attached properly Hoses are intact There are no oil leaks in attachment All functions are in order Learn the functions of the rotary broom in an enclosed area before actual usage.

  • Page 10: Adjusting The Mud Guard

    7.2. Adjusting the mud guard Mud guard can be tilted in order to increase clearance between rotating bristles and mud guard for example brushing snow. Mud guard can be tilted by opening lower bolts from mud guard arc and moving inner holes in line with the mounting holes and inserting bolts back.

  • Page 11: Changing The Brush Lists

    7. Reassemble parts in inverse order. 8. Use lock medium-hard thread locker when inserting bolts back to locking plates. Remember to keep hydraulic connectors clean! 7.4. Changing the brush lists 1. Set brush standing on support legs. 2. Remove brush list locking plates from roll end. 3.

  • Page 12: Detaching The Rotary Broom From The Base Machine

    7.5. Detaching the rotary broom from the base machine 1. Lower the rotary broom down on an even surface on its support legs (picture 6). 2. Turn off the base machine, apply the parking brake and depressurize the system. 3. Detach the hydraulic hoses and protect hose ends with plugs. 4.

  • Page 13: Irrigation System

    7.7. Irrigation system A watering system with 255 litre tank can be installed to the rotary broom. The watering system reduces the amount of sand dust, improves the cleaning outcome, lubricates the bristles, and decreases wearing off the bristles. Water is sprayed to the area to be swept through the nozzles demonstrated on the pictures (picture 7).

  • Page 14: Accessories For Rotary Broom

    Picture 9. Faucet behind the tank 7.8. Accessories for rotary broom • Piping for the low-pressure irrigation system • Piping for high-pressure irrigation system • Low-pressure irrigation system, 255 L, 12 V / 24 V • High-pressure irrigation system, 255 L, 12 V / 24 V •...

  • Page 15: Maintenance Of The Rotary Broom

    8. MAINTENANCE OF THE ROTARY BROOM 8.1. General safety precautions for the use and maintenance Comply with existing laws and regulations and the instructions given in this manual. Never go under an unsecured device. Always apply the parking brake of the base machine before performing any actions on the device. Only use tools that are in proper working order.

  • Page 16: Lubrication Points

    8.6. Lubrication points Sivu 16 / 20...
  • Page 17 Picture 10. Greasing points 1) Grease nipple for main rotating pin 2) Grease nipples for turning pins 3) Grease nipple for flex joint 4) Grease nipple for hydraulic cylinder Sivu 17 / 20...

  • Page 18: Hydraulics

    9. HYDRAULICS The rotary broom can be connected in two different ways, either with two (figure 1) or four (figure 2) hoses. When connecting with two hoses, the hydraulics of the basic machine is connected to quick connectors and a separate switch is used to choose whether the broom is rotated or turned.
  • Page 19 A - Base machine control block 1 B – Base machine control block 2 C – Turn cylinder D – Brush roll motor E – Flow control valve Figure 2. 4-hose hydraulics Sivu 19 / 20...

  • Page 20: Warranty Policy

    3. Warranty period STARK warranty covers a period of one (1) year. If need be, the client and the manufacturer make separate agreements on warranty concerning repairs and spare parts used in repairs. 4. Repairs during the warranty period Repairs during the warranty period are carried out free of charge within the normal working hours by the manufacturer repair and maintenance services or by a repair service provider accredited by the manufacturer.
