- Page 1 施工说明书 Instructions for construction Before product installation, read these instructions for construction carefully and retain it for future reference. OG4061Y 2017.03...
- Page 2 Instructions for operation 1 copy 8-13 Faucets installation The products using this detailed list include: TBV02105 "G Shower" Conceald 3way Push Button Shut Off Valve (Contemporary Type) TBV02405 "G Shower" Conceald Thermostat and 1way Push Button Shut Off Valve (Contemporary Type) TBV02406 "G Shower"...
- Page 3 1. Wipe with a piece of soft cloth frequently and use a piece of soft cloth TOTO series sprinkler in a supporting manner. dipped in water to wipe from time to time.

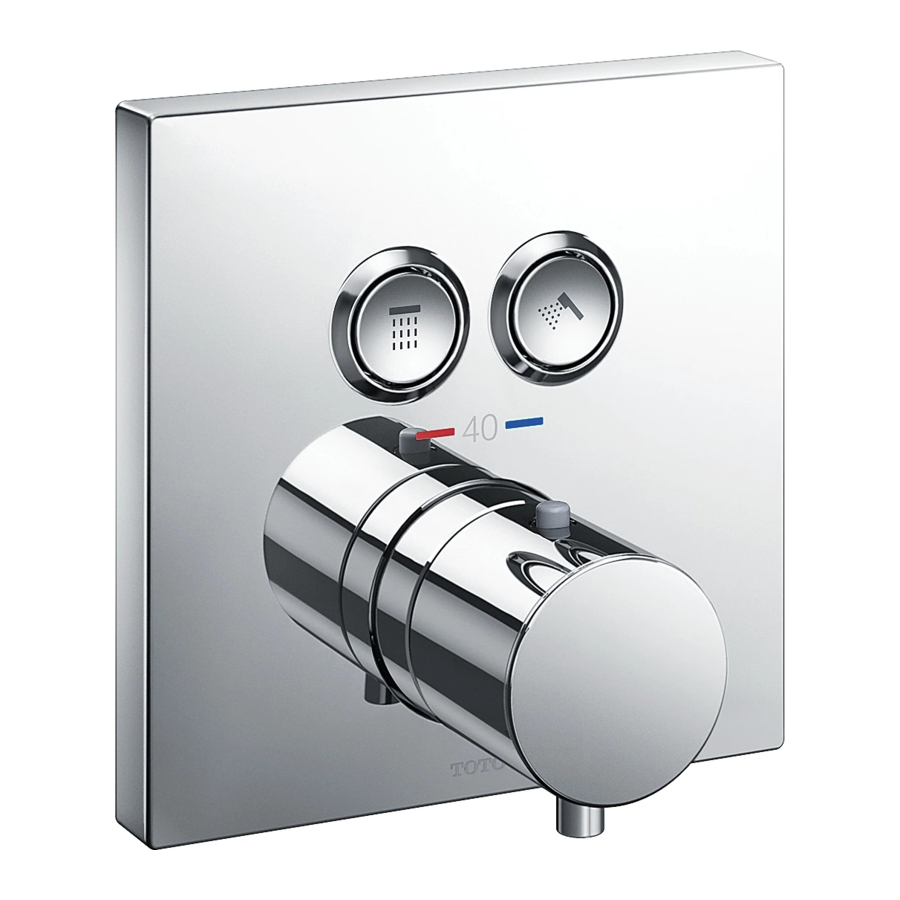

- Page 4 Installation completion figure Installation completion figure TBV02405 "G Shower" Conceald Thermostat and 1way Push Button TBV02406 * "G Shower" Conceald Thermostat and 2way Push Button Shut Off Valve (Contemporary Type) Shut Off Valve (Contemporary Type) (510) (150) (100) (400) Export closure(G1/2) TBN01001* (bug separatly) TBV02405*...
- Page 5 Faucets installation Installation completion figure TBV02105 * "G Shower" Conceald 3way Push Button Shut Off Valve Tools to be prepared (Contemporary Type) TBV02402 * "G Shower" Conceald Thermostat Valve for 3way Push Button (Contemporary Type) (510) (150)(100) Hex wrench (400)
- Page 6 If the flow is very small, tighten the screws by sudden Flow reduces please screw out the water stop valve and Cartridge In case of TBV02105* force. Cold water clean the filter net thereon. Hot water side water ●Do not screw tight the...
- Page 7 Plate Outlet 2 Outlet 2 Mixed water 5. Decorating plate installation button Put the main body of faucet on the decorating plate part and In case of TBV02405* In case of TBV02406* In case of TBV02105* Plate compress tight.
- Page 8 Faucets installation 6. Handle part installation (in case of TBV02105*, there is no this step) Attentions Color mark Spline ●Before installing the handle part, confirm that the opening of the snap ring faces down and the internal convex part has been Convex part snapped in the snap slot.
