ASSEMBLY INSTRUCTIONS
SNMUHSSS2 - Hand Sanitizer Station - Single Sided
SNMUHSDS4 - Hand Sanitizer Station - Double Sided
NOTE: See Page 2 (SNMUSEF instructions) if you purchased extension frame.
2 people are required
I
Detail
II
Detail
III
Detail
H
G
IV
Detail

Parts List

QTY
A Side Pole 2
B Horizontal Bar 4
C Support Rail 1
D Foot 2
E M5x12 screw 18
F M6x25 screw 5
G M4x8 screw 18
H Mounting Bracket 2
(Qty. 4 for SNMUHSDS4)

Tools

2.5mm Allen Wrench 1
3mm Allen Wrench 1
5mm Allen Wrench 1
Remove all parts from the package and lay them out on a level ground.

STEP 1.

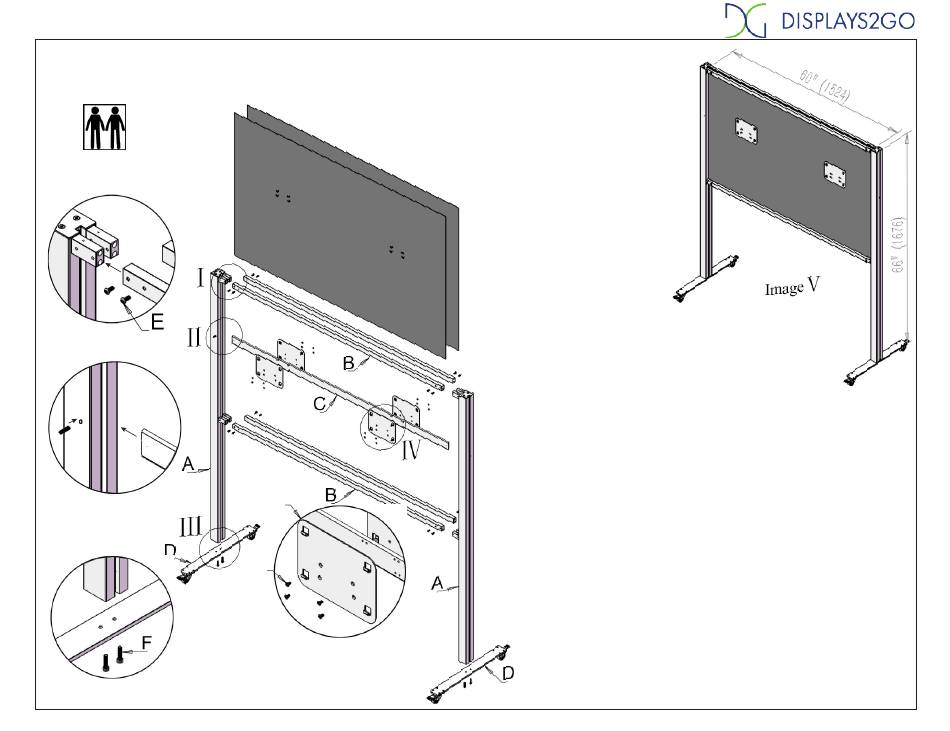

Connect 2 Side Poles (A) with all 4 Horizontal Bars (B) as shown.
Insert the Support Rail (C) into the cutouts inside each slot on the side pole.
Make sure the pre-drilled holes on all horizontal bars are facing outside and fix
the frame by using M5X12 Screws (E) with 3mm Allen Wrench, see Detail
Fix the Support Rail the same way, see Detail

STEP 2.

Attach 1 Foot (D) at the bottom of each pole using M6X25 Screws (F)
with 5mm Allen key.

STEP 3.

Carefully lift the assembled frame up to its standing position. Insert
your printed panels from the top. For double sided station, assemble 1 panel on
each side separately.

STEP 4.

Attach 2 mounting brackets to the panel and align the hole pattern on
the bracket with the support bar. Use M4X8 Screws (G) to secure the plates on
the panel. For double sided station, attach the remaining brackets to the other
side.

STEP 5.

Follow the instructions of the hand sanitizer dispenser to
attach your units.
V21.03
Scan QR code to visit
the product page:
I
.
II
.
1 of 2
