Product items

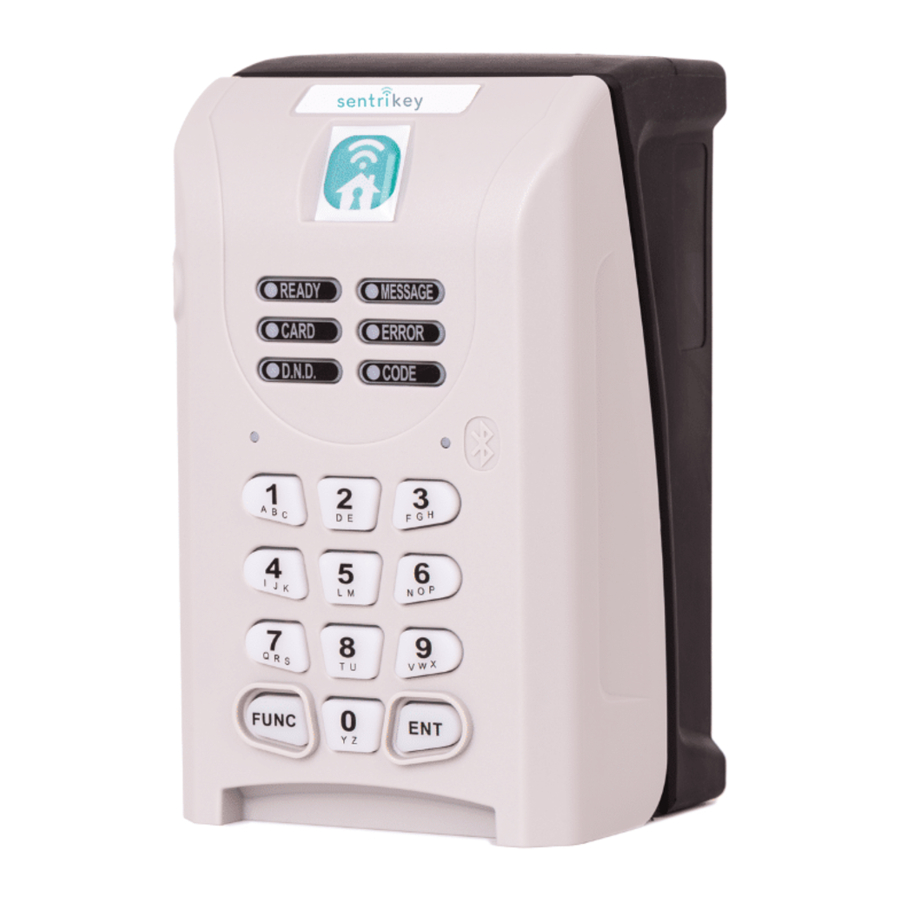

SentriKey® BLE WM Lockbox
4 x Mungo MBK-STB 10x80mm masonry
screws and nylon plugs (alternative fixings
can be used, please refer to the
substrate/fixings matrix on page 2)

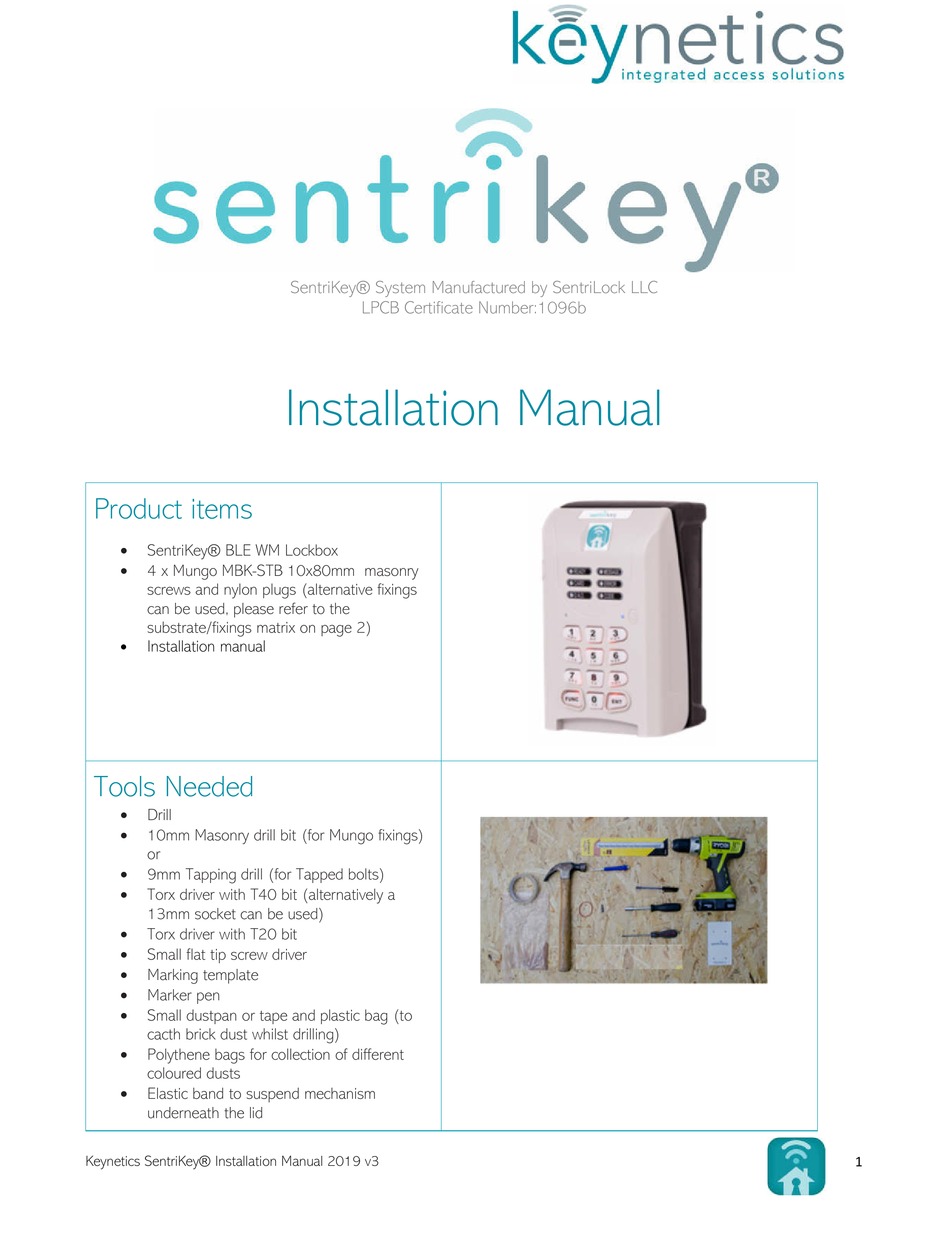

Installation manual
Tools Needed
Drill
10mm Masonry drill bit (for Mungo fixings)
or
9mm Tapping drill (for Tapped bolts)
Torx driver with T40 bit (alternatively a
13mm socket can be used)
Torx driver with T20 bit
Small flat tip screw driver
Marking template
Marker pen
Small dustpan or tape and plastic bag (to
cacth brick dust whilst drilling)
Polythene bags for collection of different
coloured dusts
Elastic band to suspend mechanism
underneath the lid
Keynetics SentriKey® Installation Manual 2019 v3
SentriKey® System Manufactured by SentriLock LLC
LPCB Certificate Number:1096b
Installation Manual
1
Advertisement
Summary of Contents for Keynetics sentrikey
- Page 1 SentriKey® System Manufactured by SentriLock LLC LPCB Certificate Number:1096b Installation Manual Product items SentriKey® BLE WM Lockbox 4 x Mungo MBK-STB 10x80mm masonry screws and nylon plugs (alternative fixings can be used, please refer to the substrate/fixings matrix on page 2) Installation manual ...
-
Page 2: Before Starting
Before Starting The SentriKey® Lockbox is designed to be mounted directly to a building or other secure structure. The Lockbox has been certified to Loss Prevention Standard (“LPS”) 1175, A10, B3 and C1 when mounted using the following fixings and... - Page 3 Ensure you have downloaded the correct app for the platform being used. Search for SentriKey in the app store and select either SentriKey Access or SentriKey Care (check with your administrator which one to use) Keynetics SentriKey® Installation Manual 2019 v3...
- Page 4 App displays “Retrieving current location” App displays “Retrieving lockbox information” Confirm this is the correct client and address for the lockbox installation. For SentriKey Access this would be the name of the property Press the tick icon. App displays “Connecting to Lockbox”...
- Page 5 Using a T20 Torx screw driver, remove the single center fastener bolt that retains the metal Security Plate and Latching Mechanism. Set aside for re-assembly. Carefully remove the metal Security Plate. Use a flat blade screwdriver if necessary. Set aside for re-assembly. Keynetics SentriKey® Installation Manual 2019 v3...
- Page 6 (The drill hole positions in the slots must be at the extreme top end of the slots, centred some 84mm from the bottom holes.) WARNING This is important, otherwise installing the screws will foul the casing. Keynetics SentriKey® Installation Manual 2019 v3...
- Page 7 (to allow for easy access to the screw heads). Screw them down to within one turn of being tight, but do not fully tighten at this stage. Keynetics SentriKey® Installation Manual 2019 v3...
- Page 8 There is a notch in the bottom of the latch mechanism and the key holder for the cable to locate in. Re-install the grey Key Holder into the lid. Keynetics SentriKey® Installation Manual 2019 v3...
- Page 9 Lockbox to normal standby mode. UK Sales: Keynetics Ltd Malvern Hills Science Park Geraldine Road Malvern Worcestershire WR 143SZ Sales: 01684 219091 | sales@keyneticsltd.co.uk Support: 01684 219096 | support@keyneticsltd.co.uk Keynetics SentriKey® Installation Manual 2019 v3...
