Summary of Contents for Linsar LS20SB-SCA

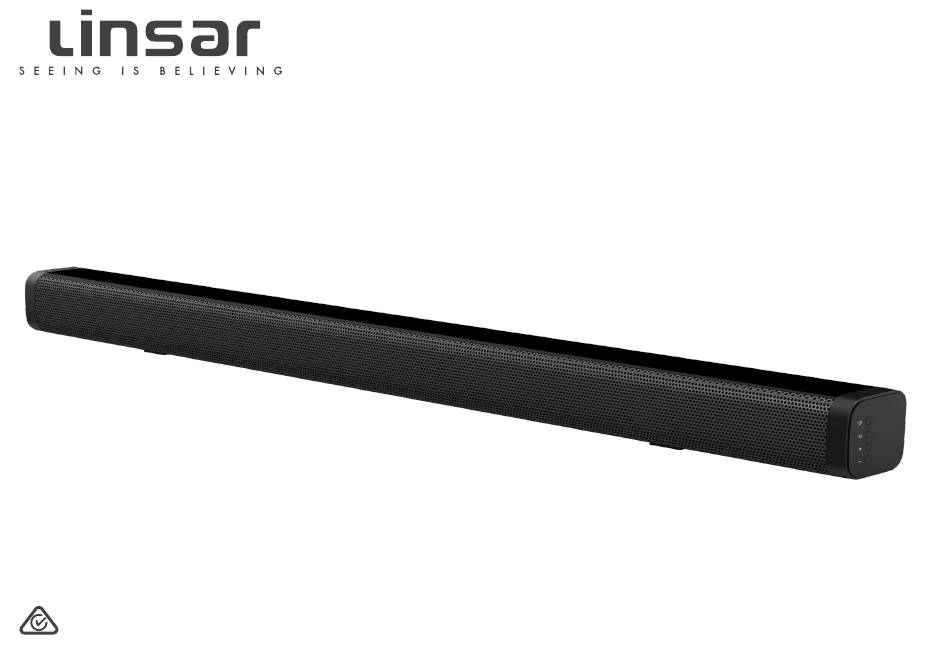

- Page 1 2.0 CHANNEL SOUNDBAR MODEL: LS20SB-SCA User Manual...
-
Page 2: Welcome
Please take special note of any important safety and usage information presented with the symbol. All products brought to you by Linsar are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive... -
Page 3: Table Of Contents
Contents Welcome Operation General Operation Unpack and Prepare Input Modes What's in the Box Function Display Wall Mount Installation Kit Using the HDMI (ARC) Input Installation Using the Optical or Coaxial Input 18 Wall Mounting Instructions Using the AUX Input Connect to Power Using the USB Input Controls and Connections... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the Box Before setting up your new Soundbar, check you have everything: A. 2.0 Channel Soundbar B. Remote Control C. AAA Batteries (2) D. 3.5mm Audio Cable E. Optical Cable Wall Mount Installation Kit G. Power Adaptor H. -
Page 5: Wall Mount Installation Kit
Wall Mount Installation Kit The illustration below shows the contents of the wall mount installation kit. These are the parts you will need if wall mounting your soundbar. • Place the Soundbar on a level surface. • Place the Soundbar away from any source that may generate heat or vibrations. -
Page 6: Installation
Installation This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Place on a secure, flat surface. Make sure the soundbar is standing on its rubber pads (on the left and right sides on the bottom of the soundbar) and no other area of the bottom of soundbar is touching the surface. - Page 7 Wall mounting instructions are on the following pages. • Wall-mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall.
-
Page 8: Wall Mounting Instructions
Wall Mounting Instructions Use a pencil to make 4 drill hole marks on the wall for the adaptors. Make sure the marks are level before drilling. Use a 6mm bit and power drill (not supplied) to drill holes on the marks. Use the supplied screws and plastic anchors to fix the wall mount adaptors onto the drilled hole marks. -
Page 9: Connect To Power
Connect to Power Make sure the soundbar is switched off at the power outlet until you have finished connecting your cables. Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. UNPACK AND PREPARE | 9... -
Page 10: Controls And Connections
Controls and Connections Get to Know your Soundbar Front LED display Buttons on the Soundbar button : Press to turn the soundbar on/off. button : Press to switch between input sources. 3. + : Increase volume level. 4. - : Decrease volume level. Right side 10 | CONTROLS AND CONNECTIONS... -
Page 11: Rear Ports On The Soundbar
Rear Ports on the Soundbar COAXIAL OPTICAL HDMI ARC DC IN Plug in a USB stick to play media files stored on your USB STORAGE storage device. Connect to your headphones, amplifier or audio device, using SOUND an AUX cable. COAXIAL Use a coaxial cable (not included) to connect the TV to the SOUND... - Page 12 The ARC (Audio Return Channel) function allows you to send HDMI ARC audio input from an ARC-compliant TV to an ARC-compliant SOUND audio device (e.g. soundbar) without the need for an additional audio cable connection. DC IN POWER Please only use the supplied power adaptor HDMI (ARC) When you use ARC, Optical or Coaxial connection to your To use the ARC function, make sure the soundbar's...
-
Page 13: Remote Control
Remote Control Setup AAA size Insert two AAA size batteries according to the polarity batteries markings (+ / -) inside the compartment. Make sure included the batteries are correctly aligned and properly pushed into place. Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 14: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the soundbar. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from the soundbar at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 15: Remote Overview
Remote Overview MODE (POWER): Switch the soundbar on or standby : Mute the sound MODE: Switch between the input : Skip to the next track sources : Start or pause playback : Increase the volume level TREBLE + : Increase the treble TREBLE : Skip to the previous track BASS + : Increase the bass... -
Page 16: Operation
Operation General Operation Function Action Press the button on the right side of the soundbar, or press the button on the Turn the soundbar ON remote control to switch the soundbar on. Press and hold the button on the right side of the soundbar, or press the Turn the soundbar OFF button on the remote control to turn the soundbar off. -
Page 17: Input Modes
Input Modes Function Display Input Display Function Display HDMI ARC Volume Bluetooth Mute "- - - -" will flash on LED display ® Optical Treble (-5 to 5) Coaxial Bass (-5 to 5) EQ News EQ Music Note: The LED display will turn off EQ Movie around 5 minutes without operation. -
Page 18: Using The Hdmi (Arc) Input
Using the HDMI (ARC) Input • You will need an audio source with a HDMI (ARC) audio output and a HDMI (ARC) audio cable (not included). • Connect the HDMI (ARC) audio cable to the HDMI (ARC) on the audio source and the HDMI ARC input on the soundbar. -
Page 19: Using The Aux Input
Using the AUX Input • Use the supplied 3.5mm audio cable to connect the AUX output on the audio source and the AUX input on the soundbar. • Use the button on the soundbar or remote control to switch on the unit. •... -
Page 20: Bluetooth
® set it to search for compatible devices. Select the speaker name: 'LS20SB-SCA' from the list of found devices. If a mobile phone on which you are playing music receives a call, the music will be interrupted. -
Page 21: Bluetooth ® Playback
Bluetooth Playback ® Function Action Increase the Volume Press the button on the soundbar or on the remote. Decrease the Volume Press the button on the soundbar or on the remote. Play/Pause Press on the remote. Skip/Rewind Press on the remote to skip/rewind tracks. Un-pair a Bluetooth ®... -
Page 22: Troubleshooting
Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the power adaptor is properly connected. No power •... - Page 23 Problem Solution • Make sure the input source is set to HDMI ARC; the LED will display 'HD'. • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. •...
-
Page 24: Specifications
(either side of sensor) Bluetooth pairing operation range For Technical Support: Up to 10 metres – distance Ph: 1300 886 649 Bluetooth pairing name LS20SB-SCA Bluetooth pairing password 0000 W: www.tempo.org Bluetooth version E: info@tempo.org DC 5V, 200mA (for Distributed by Tempo (Aust) Pty Ltd,... -
Page 25: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 62368.1 to ensure the safety of the materials and can usually be recycled. Please product. - Page 26 Notes...
- Page 27 Notes...
