Summary of Contents for RGB Technology 106-01-02

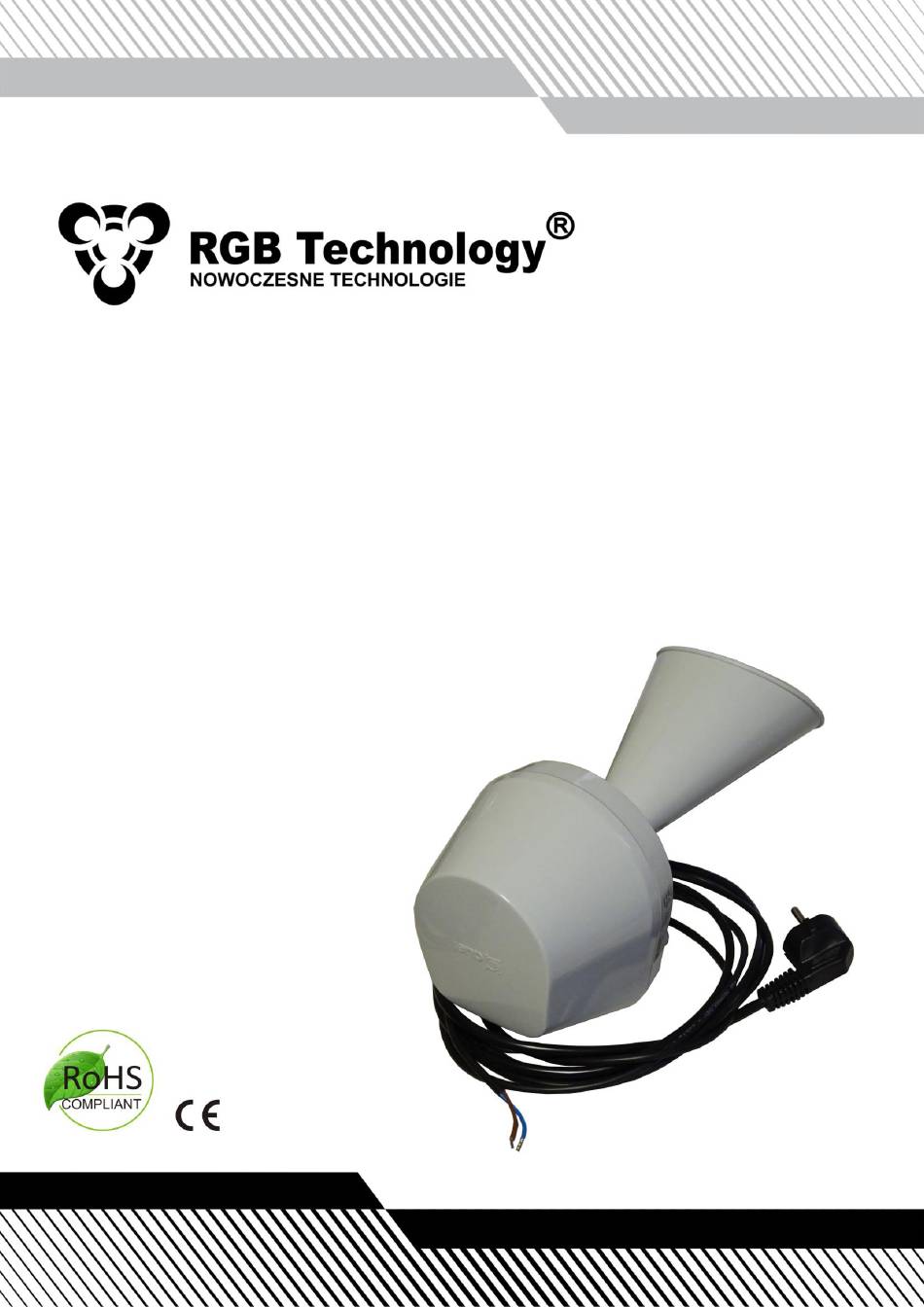

- Page 1 TECHNICAL AND OPERATIONAL DOCUMENTATION Industrial acoustic signalling device of increased volume of 108 dB Product code: 106-01-02 *Explanatory figure...
- Page 2 Industrial acoustic signalling device of increased volume of 108 dB ................ 5 Connection of the signalling device .......................... 5 5.2.1 List of the signalling device connections to the RGB Technology devices ............6 Initial start-up ..................................6 Disposal and recycling ................................ 6 Packaging material recycling............................
- Page 3 4.1 Construction of the industrial acoustic signalling device of 108 dB The photo shows the industrial acoustic signalling device of 108 dB in accordance with product code 106-01-02- 001. det. A – industrial acoustic signalling device of 108 dB; det. B – relay cable; det. C – mains power lead Fig.
- Page 4 4.2 Dimensions of the device All dimensions shown in the figures are given in [mm]. Fig. 2 4.3 Mounting the device Fig. 3 DTR_106-01-02-001_EN_b...
- Page 5 5.1 Industrial acoustic signalling device of increased volume of 108 dB The device is used for acoustic signalling of the programmed events such as, for example, clock alarms. The device is fully compatible with the RGB Technology products enabling this kind of signalling. 5.2 Signalling device connection The diagram below shows an illustrative connection to the ZA5 clock in accordance with product code 301-01- 01-001.
- Page 6 Step 2: Make sure that all the components have been installed in the correct orientation (the horn and the leads facing down), Step 3: Connect the RGB Technology device and the industrial acoustic signalling device of 108 dB to the mains power supply, Step 4: The properly connected system should start signalling the programmed alarms, events.
