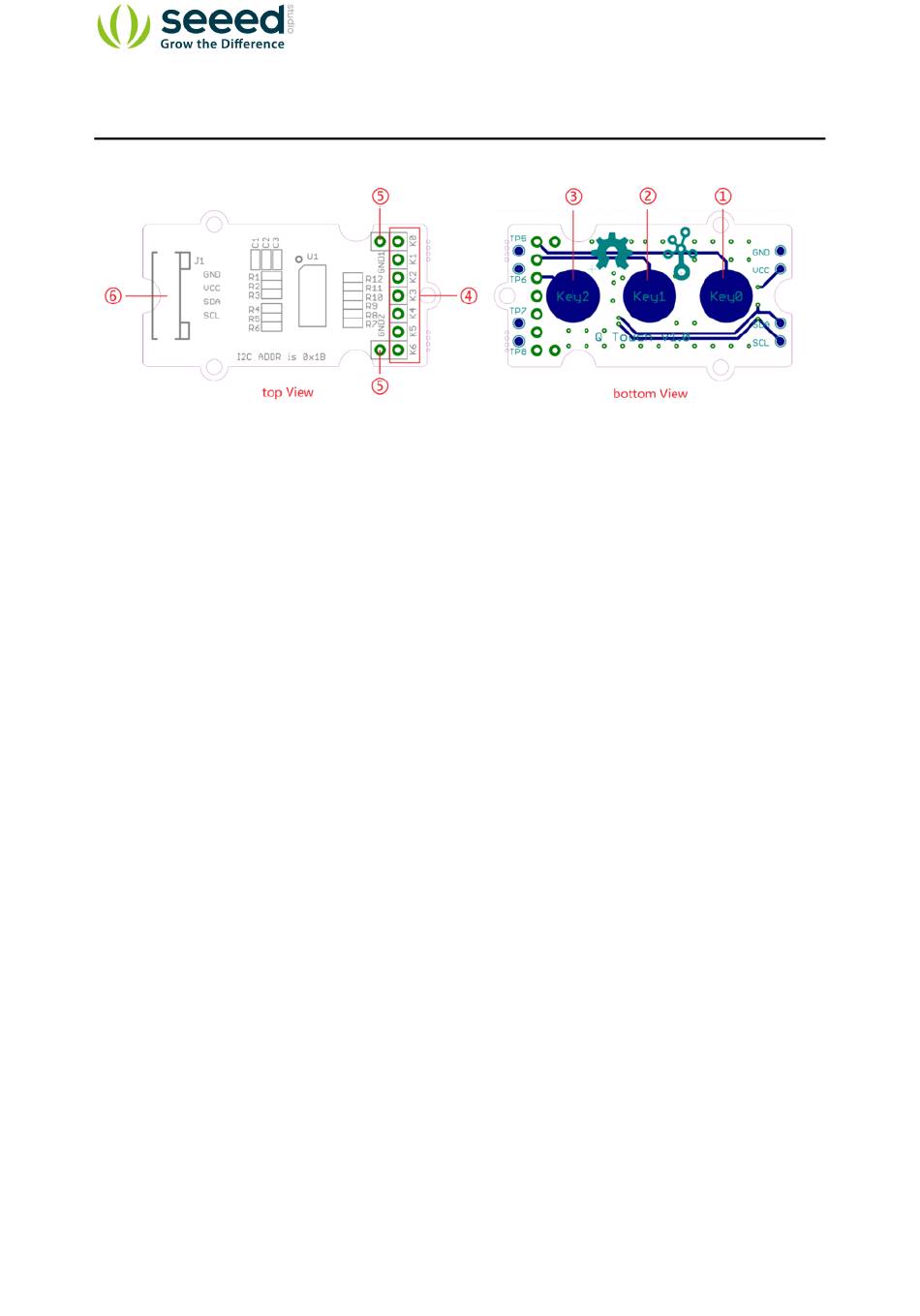

3. Interface function
①：On board touch key0
②：On board touch key1
③：On board touch key2
④：Touch key0 ~ key6 break out
The recommended range for key capacitance Cx is 1 pF – 30 pF. Larger values of Cx will give reduced
sensitivity.
⑤：GND
⑥：Grove interface
4
