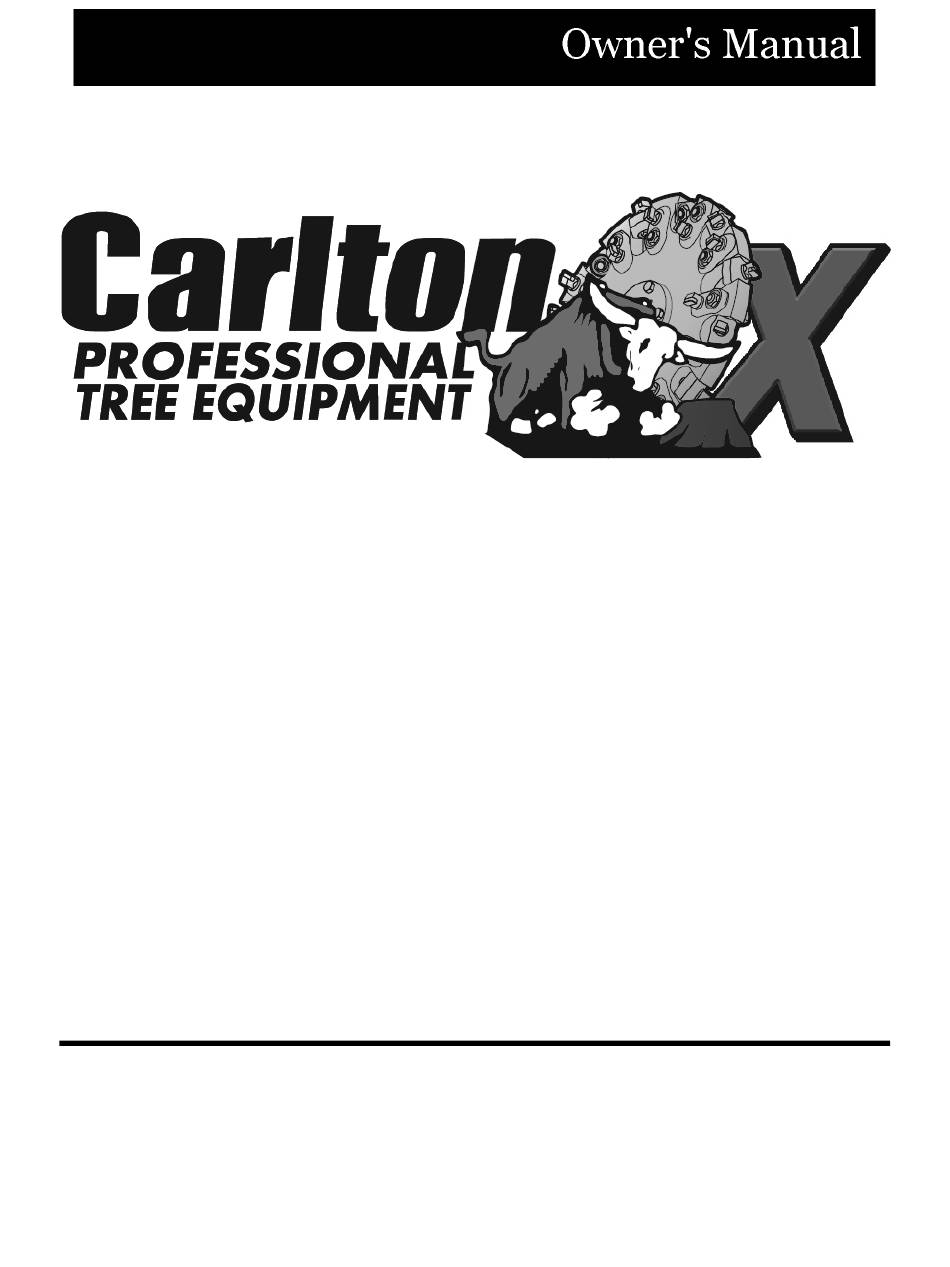

Carlton SP5014TRX Owner's Manual

Equipped with a 35hp briggs and stratton engine
Hide thumbs Also See for SP5014TRX:
Table of Contents

Advertisement

Quick Links

Model SP5014TRX
Equipped with a 35HP Briggs and Stratton Engine
Carlton
J.P.Carlton Company
Div. D.A.F. Inc.
121 John Dodd Road
Spartanburg, SC 29303
Ph. (864) 578-9335
Fax (864) 578-0210
www.stumpcutters.com
Machine Serial #
Engine Model & Spec #
Engine Serial #
Purchase Date
Dealer
_____________
_____________
_____________
_____________
_____________

Advertisement

Table of Contents
loading

Related Manuals for Carlton SP5014TRX

Summary of Contents for Carlton SP5014TRX

  • Page 1 Model SP5014TRX Equipped with a 35HP Briggs and Stratton Engine Machine Serial # _____________ Engine Model & Spec # _____________ Engine Serial # _____________ Purchase Date _____________ Dealer _____________ Carlton J.P.Carlton Company Div. D.A.F. Inc. 121 John Dodd Road Spartanburg, SC 29303 Ph.
  • Page 2 BLANK SHEET ...
  • Page 3 DIESEL ENGINE EXHAUST WARNING CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproduction harm.
  • Page 4 BLANK SHEET ...
  • Page 5 SP5014TRX SAFETY ALERT MANUAL REMOTE...
  • Page 6 BLANK SHEET ...
  • Page 7 SP5014TRX SAFETY ALERT...
  • Page 8 BLANK SHEET ...
  • Page 9 SP5014TRX SAFETY ALERT...
  • Page 10 BLANK SHEET ...
  • Page 11 SP5014TRX SAFETY ALERT DIESEL MACHINES ONLY...
  • Page 12 BLANK SHEET ...
  • Page 13 STUMP GRINDER LIMITED WARRANTY J.P. Carlton Co. Inc., hereafter referred to as the “Manufacturer”, warrants each new Carlton Grinder to be free of defects in workmanship and material for a period of one year. This warranty takes effect upon delivery to the original retail purchaser. The manufacturer, at its option, will replace or repair, at a point designated by the manufacturer, any parts which appear to have been defective in material or workmanship.
  • Page 14 BLANK SHEET ...
  • Page 15 The manufacturer will provide replacement parts at no cost to the customer for defective parts during the warranty period. Defective parts must be returned to J.P. Carlton Company. It will be the customers’ responsibility to install the replacement parts unless arrangements are made with the selling dealer.
  • Page 16 BLANK SHEET ...
  • Page 17 Warranty Validation Form Congratulations on your purchase of a Carlton Stump Grinder. This product has been designed and manufactured to provide years of profitable service while minimizing maintenance and downtime. Please take the time now to complete this warranty validation form. This information is necessary for Carlton to instate your warranty.
  • Page 18 BLANK SHEET ...

  • Page 19: Table Of Contents

    SP5014TRX TABLE OF CONTENTS INTRODUCTION FOREWORD GENERAL INFORMATION MACHINE FEATURES MACHINE SPECIFICATIONS OPERATION SAFETY PRECAUTIONS DAILY CHECKLIST MACHINE CONTROLS TRANSPORTING MACHINE OPERATION MAINTENANCE MACHINE MAINTENANCE LUBRICATION CHART TROUBLESHOOTING GUIDE SERVICING BELTS SERVICING BEARINGS SERVICING BOOM PIVOT SERVICING CUTTER WHEEL SERVICING HYDRAULICS...
  • Page 20 BLANK SHEET ...

  • Page 21: Foreword

    Use proper safety precautions. Follow the instructions and use common sense and your “OX” will perform like its namesake. If getting more work done in a day, with less trouble, is your idea of good business, then you’ll love your new Carlton Stump ®...

  • Page 22: General Information

    Any reference made to the right, left, front, or rear in relationship to the chipper is illustrated in the following pictures. Please refer to these any time you call your dealer or J. P. Carlton for parts or assistance.

  • Page 23: Machine Features

    SP5014TRX MACHINE FEATURES  Direct drive hydraulic  Large footprint  Epoxy primer  DuPont Imron pump provides proper weight ®  Dual hydraulic motor distribution protective finish  Spring tensioned tracks  Key start propulsion  Hydraulic controls  High capacity battery are easily adjusted ...

  • Page 24: Machine Specifications

    SP5014TRX MACHINE SPECIFICATIONS General: Drive System: Weight: 2215 Pounds Engine Sheave: 6/3V5.3 Length: 84 Inches Jackshaft Sheave: 6/3V14.0 Height: 56 Inches Drive Belt: 6/3V710 Width: 34 Inches Jackshaft Sprocket: 8M-40S-62 Gates PolyChain Track type: Rubber track Cutter Head Sprocket: 8M-40S-62 Gates PolyChain Track Foot Print: 7”...

  • Page 25: Safety Precautions

    SP5014TRX SAFETY PRECAUTIONS Before operating the stump cutter, read this manual, the engine manual, and all the safety decals on the machine. Know all parts of the machine and their functions, especially the shut down procedures in case of emergency. No inexperienced person may operate machine.
  • Page 26 (i.e. clearing rocks, wood chips, etc.).  DO NOT modify or change any part without written approval from J. P. Carlton Company.  Do not ride, sit, stand, lay or climb anywhere on this machine during operation, while running, or during transport.
  • Page 27 Keep cutter wheel skirt guards in good condition to help control chips during grinding.Keep safety and instructional decals clean and replace any that are damaged, difficult to read, or missing. Decals may be purchased from J. P. Carlton or an authorized dealer.
  • Page 28 SP5014TRX SAFETY PRECAUTIONS ATTENTION: The Carlton Model SP5014TRX Stump Grinder CAN be overturned on steep inclines. ® This can cause serious injury to operator and machine. DO NOT OVERTURN! P/N 0700024  Avoid steep side inclines when operating this machine! The narrow design width...

  • Page 29: Daily Checklist

     Check hydraulic oil daily, with engine off and cool, and replenish as necessary. This Carlton stump grinder is equipped with a gauge that shows the level of oil and the temperature of the oil. When filling the tank OIL LEVEL/TEMP...

  • Page 30: Machine Controls

    SP5014TRX MACHINE CONTROLS ENGINE CONTROLS - Refer to engine manufacturers owners’ manual for controls, operation, and service.  The Key Switch for starting the engine CHOKE is located on the Vanguard engine. There is also a choke lever and throttle lever on the engine.
  • Page 31 SP5014TRX MACHINE CONTROLS CUTTER WHEEL (Lift) lever 3- (Shown as CUTTER HEAD –UP/DOWN on radio transmitter.)  This lever operates the cutter head lift function, which raises and lowers the cutter head. BLADE - lever 4  This lever operates the blade function, which moves the scrape blade up and down.
  • Page 32 SP5014TRX MACHINE CONTROLS CUTTER WHEEL ENGAGEMENT LEVER Never start engine with cutter wheel engaged. With engine at idle, raise the engine slide lock, and slowly move the engagement lever towards the front of the machine to engage drive belts. DO NOT ENGAGE OR DISENGAGE BELTS AT HIGH ENGINE SPEED.
  • Page 33 SP5014TRX MACHINE CONTROLS TRAVEL SPEED ADJUSTMENT  Adjust travel speed for smooth operation. Turn valve counter-clockwise to decrease travel speed. Right Left Track Track SWING SPEED ADJUSTMENT  Adjust swing speed for smooth operation. Turn valve counter-clockwise to slow cutter head swing. Close valve by turning clockwise to allow head to move side to side at low RPM.

  • Page 34: Operation

    SP5014TRX MACHINE CONTROLS OPERATION – WIRELESS GEAR SWITCH - HIGH POSITION  THE CUTTER WHEEL MUST BE DISENGAGED BEFORE STARTING THE MACHINE. WHEN OPERATING MANUALLY, BOOM FUNCTIONS WILL NOT OPERATE WITH HIGH/LOW GEAR TOGGLE SWITCH IN HIGH POSTION.  To start the engine and radio control transmitter, follow these instructions.
  • Page 35 SP5014TRX MACHINE CONTROLS PROGRAMMING – WIRELESS  If there is a problem with the receiver or the transmitter and either has to be replaced, you will need to program the new unit to communicate with the existing unit. Or if you have more than...
  • Page 36 SP5014TRX MACHINE CONTROLS LOW BATTERY LIGHT TROUBLESHOOTING SEE THE RADIO CONTROL MANUAL FOR ANY OPERATING PROBLEMS WITH THE RADIO RECEIVER & TRANSMITTER (Included in the back of this manual)  First check the batteries to make sure they are providing enough power to operate the transmitter.

  • Page 37: Transporting

    Always use safety tie down straps while transporting. The model SP5014TRX can be loaded into a pick-up truck, but requires increased safety precautions against tipping. Tie-downs, a sturdy and stable loading ramp and extra caution are required.
  • Page 38 SP5014TRX TRANSPORTING LOADING  TRAILER MUST BE SECURELY ATTACHED TO TOW VEHICLE BEFORE LOADING OR UNLOADING THE STUMP GRINDER.  DO NOT LOAD OR UNLOAD ON ANYTHING OTHER THAN LEVEL GROUND.  Start engine as recommended by the engine manufacturer’s manual.

  • Page 39: Machine Operation

    SP5014TRX MACHINE OPERATION STARTING – READ ENGINE MANUFACTURERS OWNERS’ MANUAL BEFORE STARTING.  Check all fluids before starting.  Belts must be disengaged before starting.  Inspect all connections, teeth, tires, etc. (see Daily Checklist).  Start engine at half speed and allow sufficient time for oil to circulate before proceeding.
  • Page 40 SP5014TRX MACHINE OPERATION  Reduce engine RPM to idle. RAISE ENGINE SLIDE LOCK  Raise cutter head clear of stump.  Engage cutter wheel belts by raising engine slide lock and then slowly pushing engagement lever toward front of machine.
  • Page 41 SP5014TRX MACHINE OPERATION  Lower spinning cutter wheel to stump and make a few light passes at stump to get a feel for the cutting action.  Gradually increase cutting action and work away at stump by swinging cutter wheel left-to-right-to-left through stump in a sideways motion.

  • Page 42: Machine Maintenance

     Check engine oil at dipstick daily; take reading with engine sitting level (see photos). Add recommended oil and change oil as required. (See engine owners’ manual.) SP5014TRX Engine Filters INCORRECT POSITION - 0200141 Oil Filter - 0200142 Fuel Filter...
  • Page 43 MACHINE MAINTENANCE  Check hydraulic oil level daily. This Carlton stump grinder is equipped with a gauge that shows the level of oil and the temperature of the oil. When filling the tank 2/3 with oil, the window of the gauge will also fill with oil, as the level gets higher in the tank.
  • Page 44 SP5014TRX MACHINE MAINTENANCE  Check cutter wheel, pockets, and teeth for wear. If any repair is needed, see “Servicing Cutter Wheel” section for further instruction. Always clean tip of grease gun fitting and grease fitting on machine before attaching hose to prevent dirt from being forced into machine parts.
  • Page 45 SP5014TRX MACHINE MAINTENANCE  Clean out Poly Chain Guard by removing ® bottom portion of guard weekly. Chip build up will wear Poly Chain Belt. ®  Grease boom pivot monthly, swing cutter wheel to the right to access grease fitting.

  • Page 46: Lubrication Chart

    SP5014TRX LUBRICATION CHART  The model SP5014TRX, as well as all of  A regularly scheduled maintenance our machines, is built to be a rugged program will pay big dividends in machine performer. Your new machine is sturdy life, performance and avoided downtime.

  • Page 47: Troubleshooting Guide

    SP5014TRX TROUBLESHOOTING GUIDE COMPLAINT CAUSE CORRECTION  Loose ground wire.  Clean and tighten. Engine will not start. (See Engine  Loose hot wire.  Clean and tighten. Manufacturer Manual for further  Dead battery.  Recharge or replace. information.) ...
  • Page 48 SP5014TRX TROUBLESHOOTING GUIDE COMPLAINT CAUSE CORRECTION  Belt not engaged.  Adjust yoke assembly. Cutter wheel stops turning.  Engine belt broke.  Replace belt.  Poly chain® belt broke.  Replace belt.  Sheared key in shaft.  Replace key.
  • Page 49 SP5014TRX SERVICING BELTS Replacing V-Belt SAFETY  NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID STARTING MACHINE ACCIDENTALLY.  CUTTER WHEEL MUST BE DISENGAGED BEFORE TURNING ENGINE ON/OFF AND BEFORE SERVICING A MACHINE.

  • Page 50: Servicing Belts

    SP5014TRX SERVICING BELTS Replacing V-Belt  When you pull the pump off, the pump coupler and a rubber insert will come off with it. Take note of the insert and do not lose it. KEEP RUBBER INSERT TO PUT BACK INTO COUPLER ...
  • Page 51 SP5014TRX SERVICING BELTS Replacing V-Belt  After replacing belt, check it for tension.  Engage belt using the engagement lever. Raise the engine slide lock and push the engagement lever toward the front of the machine as far as it will go. Check belt tension.
  • Page 52 SP5014TRX SERVICING BELTS Replacing V-Belt  If the belt tension was adjusted, the engine slide lock will also have to be adjusted. This locks the engine in the disengaged position so that the cutter wheel will not accidentally engage. When adjusting the engine slide...
  • Page 53 SP5014TRX SERVICING BELTS Replacing V-Belt  Replace V-belt guard cover and tighten bolts. DO NOT RUN MACHINE WITHOUT ALL GUARDS IN PLACE AND SECURED. GENERAL TENSIONING OF V-BELT DRIVES Tensioning of belts on the V-belt drive is critical. A few simple rules about tensioning will satisfy most of your requirements: 1.
  • Page 54 SP5014TRX SERVICING BELTS Replacing Poly Chain Belt ® SAFETY  NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID STARTING MACHINE ACCIDENTALLY.
  • Page 55 SP5014TRX SERVICING BELTS Replacing Poly Chain Belt ®  Loosen Poly Chain belt by moving ® jackshaft bearings. MARK THE BEARINGS SO THAT YOU KNOW HOW THEY ARE POSITIONED ON THE JACKSHAFT PLATE. Loosen bolts on bearing closest to Poly Chain guard and ®...
  • Page 56 SP5014TRX SERVICING BELTS Replacing Poly Chain Belt ®  Check alignment of Poly Chain sprockets ® using a straight edge.  To adjust tension of the belt, slide the bearings back into the place that you had marked. Tighten the jam bolts. To tighten...
  • Page 57 SP5014TRX SERVICING BELTS Replacing Poly Chain Belt ®...

  • Page 58: Servicing Bearings

    FAILURE AND EQUIPMENT DAMAGE.  PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING SERVICE ON A MACHINE. In all Carlton model Stump Grinders, you will find link belt bearings that are made to be ® purged with grease. It is necessary to purge these bearings everyday till clean grease is seen.
  • Page 59 SP5014TRX SERVICING BEARINGS Replacing Jackshaft Bearings  Remove Poly Chain belt guard cover and ® bottom cover.  Remove Poly Chain sprocket by removing ® the bolts inside the sprocket and tapered bushing. Then screw one bolt into third hole to push sprocket off tapered bushing to remove.
  • Page 60 SP5014TRX SERVICING BEARINGS Replacing Jackshaft Bearings NOTE: To make shaft installation easier, place shaft in a freezer for approximately one hour or overnight if possible. This will shrink the shaft and make installation into the new bearings much easier.  Place Poly Chain sprocket and tapered ®...
  • Page 61 SP5014TRX SERVICING BEARINGS Replacing Jackshaft Bearings NOTE: Refer to SERVICING BELTS section for proper installation and tensioning of all belts.  Replace V-belt guard cover and tighten bolts.  Replace Poly Chain belt guard cover and ® end guard cover and tighten bolts.
  • Page 62 FAILURE AND EQUIPMENT DAMAGE.  PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING SERVICE ON A MACHINE. In all Carlton model Stump Grinders, you will find link belt bearings that are made to be ® purged. It is necessary to purge these bearing everyday until clean grease is seen. CAUTION should be taken not to allow grease to build up inside the belt guards.
  • Page 63 SP5014TRX SERVICING BEARINGS Replacing Cutter Wheel Bearings  Loosen jam bolts in the back of the jackshaft bearings and move bearings back to remove the Poly Chain belt. You may need to ® unbolt V-belt guard and lift jackshaft end up to remove belt.
  • Page 64 SP5014TRX SERVICING BEARINGS Replacing Cutter Wheel Bearings  Take out the three bolts that hold the bushing to the cutter wheel and place them in the empty threaded holes on the bushing and tighten slowly. This will push the bushing out of the cutter wheel.
  • Page 65 SP5014TRX SERVICING BEARINGS Replacing Cutter Wheel Bearings  Place Poly Chain sprocket and tapered ® bushing back onto cutter wheel shaft and tighten bolts. Replace Poly Chain belt. ® Alignment is very important, use a straight edge from the jackshaft sprocket down to the cutter wheel sprocket to line up sprockets.

  • Page 66: Servicing Boom Pivot

    SP5014TRX SERVICING BOOM PIVOT SAFETY  NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID STARTING MACHINE ACCIDENTALLY.  CUTTER WHEEL MUST BE DISENGAGED BEFORE TURNING ENGINE ON/OFF AND BEFORE SERVICING A MACHINE.

  • Page 67: Servicing Cutter Wheel

     PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING SERVICE ON A MACHINE.  There are twenty (20) teeth to a complete set on the model SP5014TRX. Two (2) straight teeth, nine (9) left 45° teeth and nine (9) right 45° teeth.
  • Page 68 SP5014TRX SERVICING CUTTER WHEEL TOOTH ARRANGEMENT  Inspect pockets, teeth and bolts for damage  Use anti-seize on threads to prevent bolts and replace as required. from “freezing up” in cutter wheel.  When replacing pockets, always replace  When replacing complete set of teeth, be...
  • Page 69 SP5014TRX SERVICING CUTTER WHEEL OPTIONAL: Razor Cutter Wheel  If the machine is supplied with the optional Razor cutter wheel, there are thirty-six (36) teeth to a complete set. There are twelve (12) Short Plow Bolt Bits and twenty-four (24) Plow Bolt Bits.
  • Page 70 General Information section.) NOTE TOOTH PLACEMENT IN EACH POCKET ROTATION LEFT SIDE It may be necessary to use a 1 1/4” hole saw to remove debris around CARLTON SP4012 TRIUMPH MANUAL nut to make tooth removal easier.
  • Page 71 SP5014TRX SERVICING CUTTER WHEEL TOOTH SHARPENING Begin by chamfering shank back past edge of carbide. You do this because if it is not back far enough the shank will hit the stump and not the carbide, thus causing a lot of vibration. Once the shank is angled far enough back, then begin sharpening carbide.

  • Page 72: Servicing Hydraulics

    PROTECTION. HYDRAULIC OIL & FILTER  Check hydraulic oil level daily. This Carlton stump grinder is equipped with a gauge that shows the level of oil and the temperature of the oil. When filling the tank 2/3 with oil, the window of the gauge will also fill with oil, as the level gets higher in the tank.
  • Page 73 10 hours. Replace with the same type of in-tank filter element supplied originally, available through Carlton or Carlton dealers. From this point on, change the filter every 200 hours of operation.  Change hydraulic oil every 500 hours of operation or at least once a year depending on use.
  • Page 74 SP5014TRX SERVICING HYDRAULICS REPLACING HYDRAULIC PUMP  Engine must be shut off.  Disconnect hydraulic lines from pump and cap them.  Remove bolts holding mounting plate to machine (located at 6 & 12 o’clock position)  Remove plate/pump assembly by pulling assembly straight out.

  • Page 75: Servicing Undercarriage

    SP5014TRX SERVICING UNDERCARRIAGE          ...

  • Page 76: Machine Wiring

    SP5014TRX MACHINE WIRING STANDARD WIRING DIAGRAM...
  • Page 77 SP5014TRX MACHINE WIRING RADIO WIRING DIAGRAM...
  • Page 78 Carlton 5014 STUMP GRINDER J.P.Carlton Company Div. D.A.F. Inc. 35HP VANGUARD ENGINE 121 John Dodd Road Spartanburg, SC 29303 Ph. (864) 578-9335 Fax (864) 578-0210 www.stumpcutters.com...
  • Page 79 0201002A VALVE,SLOSH 0201002B GROMMET,ROLL OVER VALVE BUSINESS LINE STUMPCUTTERS 0201002C MOUNT,CARBON CANISTER OWNER DOMAIN 0350016B Black Wire Tie - 14 1/2" J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1230C1167041 14010028 WELDMENT,FUEL TANK,GAS DESCRIPTION ISSUE 14010036 WELDMENT,PICK-UP TUBE ASSY,GAS FUEL TANK Revised 3.15.05...
  • Page 80 FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1231F1167215 & UP DESCRIPTION ISSUE GAS MANUAL VALVE BOX Revised 3.15.05...
  • Page 81 NUT,ELASTIC STOP, 3/8-16 UNC GR8 31B-06ZI FLAT WASHER 3/8 USS GR 8 Z&Y FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1231F1167215 & UP DESCRIPTION ISSUE GAS MANUAL VALVE BOX Revised 3.15.05...
  • Page 82 FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE GAS REMOTE VALVE BOX Revised 3.15.05...
  • Page 83 NUT,STOVER LOCK, 1/4-20 UNC GR8 30A-06 LOCKWASHER, 3/8" USS GR8 31B-06ZI FLAT WASHER 3/8 USS GR 8 Z&Y FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE GAS REMOTE VALVE BOX Revised 3.15.05...
  • Page 84 30A-06ZI 3/8 LOCK WASHER BUSINESS LINE STUMPCUTTERS 31A-06ZI 3/8 FLAT WASHER OWNER DOMAIN HSP50140 HOSE ASSEMBLY J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 14010020 WELDMENT,HYD. TANK DESCRIPTION ISSUE 0300169 STRAINER-TANK MOUNTED LTM-15 MANUAL VALVE HYD, RETURN ASSEMBLY Revised 3.15.05...
  • Page 85 2 VALVE BOX/ENGINE/ELECTRICAL 31A-06ZI 3/8 FLAT WASHER HSP5014R13 HOSE ASSEMBLY BUSINESS LINE STUMPCUTTERS 14010020 WELDMENT,HYD. TANK OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. 0300169 STRAINER-TANK MOUNTED LTM-15 SERIAL NUMBERS HSP5014R16 HOSE ASSEMBLY DESCRIPTION ISSUE 0300165BR1 Hydraulic Oil Cooler- REMOTE VALVE HYD, RETURN ASSEMBLY Revised 3.15.05...
  • Page 86 BUSINESS LINE STUMPCUTTERS 0300219 1/2 JIC - 1/2 ORB 90 - 6801-8 OWNER DOMAIN 0300236 1/2 JIC-1/2 ORB- 6400-8 J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP501423 Hose Assembly DESCRIPTION ISSUE HSP501424 Hose Assembly MANUAL VALVE GAS HYD, INLET ASSEMBLY Revised 3.15.05...
  • Page 87 BUSINESS LINE STUMPCUTTERS 0300219 1/2 JIC - 1/2 ORB 90 - 6801-8 OWNER DOMAIN 0300236 1/2 JIC-1/2 ORB- 6400-8 J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP5014R17 Hose Assembly DESCRIPTION ISSUE HSP5014R18 Hose Assembly REMOTE VALVE GAS HYD, INLET ASSEMBLY Revised 3.15.05...
  • Page 88 3/8 MP - 3/8 JIC - 2404-6-6 BUSINESS LINE 0300213 3/8 JIC - 1/4 MP 90 - 2501-6-4 STUMPCUTTERS OWNER DOMAIN HSP501410 Hose Assembly J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP501411 Hose Assembly DESCRIPTION ISSUE HSP501420 Hose Assembly MANUAL VALVE LIFT HYD, ASSEMBLY Revised 3.15.05...
  • Page 89 Hydraulic Cylinder - 3x6 BUSINESS LINE STUMPCUTTERS 0300257 3/8 JIC- 1/2 ORB - 6400-6-8 OWNER DOMAIN 03002257 3/8 JIC-3/8 ORB - 6400-6-6 J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP501404 Hose Assembly DESCRIPTION ISSUE HSP501403 Hose Assembly REMOTE VALVE LIFT HYD, ASSEMBLY Revised 3.15.05...
  • Page 90 HSP501415 HOSE ASSEMBLY HSP501414 HOSE ASSEMBLY BUSINESS LINE STUMPCUTTERS HSP501418 HOSE ASSEMBLY OWNER DOMAIN HSP501416 HOSE ASSEMBLY J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP501417 HOSE ASSEMBLY DESCRIPTION ISSUE HSP501419 HOSE ASSEMBLY MANUAL VALVE SWING HYD, ASSEMBLY Revised 3.15.05...
  • Page 91 3/8 JIC-3/8 ORB - 6400-6-6 0300219 1/2 JIC-1/2 ORB 90-6801-8 BUSINESS LINE STUMPCUTTERS HSP5014R08 HOSE ASSEMBLY OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. HSP5014R10 HOSE ASSEMBLY SERIAL NUMBERS HSP5014R09 HOSE ASSEMBLY DESCRIPTION ISSUE HSP5014R07 HOSE ASSEMBLY REMOTE VALVE SWING HYD, ASSEMBLY Revised 3.15.05...
  • Page 92 FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE MANUAL VALVE HYD, STEERING ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 93 0300127A1 44-4 Swg Mnfld with Ndle Cvty FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE MANUAL VALVE HYD, STEERING ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 94 2 VALVE BOX/ENGINE/ELECTRICAL HSP5014R15 Hose Assembly BUSINESS LINE HSP5014R11 Hose Assembly STUMPCUTTERS HSP5014R12 Hose Assembly OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. HSP5014R02 Hose Assembly SERIAL NUMBERS HSP5014R01 Hose Assembly DESCRIPTION ISSUE REMOTE VALVE HYD, STEERING ASSEMBLY Revised 3.15.05...
  • Page 95 0300105A HYDRAULIC CYLINDER BUSINESS LINE STUMPCUTTERS 0300257 3/8 JIC- 1/2 ORB-6400-6-8 OWNER DOMAIN 1/2" O-RING-3/8" JIC 90DEG J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP501412 Hose Assembly DESCRIPTION ISSUE HSP501413 Hose Assembly MANUAL VALVE BLADE HYD, ASSEMBLY Revised 3.15.05...
  • Page 96 HYDRAULIC CYLINDER BUSINESS LINE STUMPCUTTERS 03002257 3/8 JIC-3/8 ORB - 6400-6-6 OWNER DOMAIN 1/2" O-RING-3/8" JIC 90DEG J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS HSP5014R05 Hose Assembly DESCRIPTION ISSUE HSP5014R06 Hose Assembly REMOTE VALVE BLADE HYD, ASSEMBLY Revised 3.15.05...
  • Page 97 BLANK SHEET ...
  • Page 98 ITEMS 10,11,20,21 AND 25. 3. SVI INLET SECTION SEAL KIT-PN 0300199ZC-INCLUDES BUSINESS LINE ITEMS 10 AND 11. STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE MANUAL CONTROL VALVE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 99 0300071 Back-Up Washer 2 VALVE BOX\ENGINE\ELECTRICAL 0300079 O-Ring BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE MANUAL CONTROL VALVE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 100 BUSINESS LINE STUMPCUTTERS 03002257 3/8 JIC-3/8 ORB - 6400-6-6 OWNER DOMAIN 0300533 1/2 JIC-5/8 ORB - 6400-8-10 J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 0300534 1/2 JIC-3/8 ORB 90d - 6801-8-6 0300551 Plug Hes Socket ORB SAE 4 DESCRIPTION...
  • Page 101 FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE 35HP VANGUARD ENGINE INSTALLATION Revised 3.15.05...
  • Page 102 NOTE 3 NOTE 2 FUNCTION GROUP 2 VALVE BOX/ENGINE/ELECTRICAL BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS NOTE DESCRIPTION ISSUE 1.ITEMS 12A-0516 ARE TO BE TORQUED 15FT/LBS. 35HP VANGUARD ENGINE INSTALLATION 2.ITEMS 12A-0616 ARE TO BE TORQUED 30FT/LBS.
  • Page 103 STUMPCUTTERS 30B-10 LOCK WASHER,# 10 GR 8 31B-06ZI FLAT WASHER 3/8 USS GR 8 Z&Y OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. 31B-10ZI FLAT WASHER 5/8 USS NARROW GR 8 Z&Y SERIAL NUMBERS 41E-04 GREASE FITTING 1/4-28 STRAIGHT 50L-02...
  • Page 104 FLAT WASHER 5/8 USS GR 8 NARROW Z&Y FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE INSTALL STANDARD CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 105 BLANK SHEET ...
  • Page 106 2. ITES(S) 12A-0516 TORQUE 15FT/LBS FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE STANDARD CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 107 KEY,3/8X3/8X2-7/8 PRATT AND WHINTYE FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE STANDARD CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 108 31A-10ZI FLAT WASHER 5/8 USS GR 8 NARROW Z&Y FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BA1227A1167109 DESCRIPTION ISSUE INSTALL RAZOR CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 109 BLANK SHEET ...
  • Page 110 1. ITEM(S) 450125 TORQUE TO 270 FT/LBS FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BA1227A1167109 DESCRIPTION ISSUE RAZOR CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 111 70G-060623 KEY,3/8X3/8X2-7/8 PRATT AND WHINTYE FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BA1227A1167109 DESCRIPTION ISSUE RAZOR CUTTER WHEEL Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 112 FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE INSTALL GUARD AND RUBBER Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 113 NUT,STOVER LOCK, 1/2-13 UNC GR8 FUNCTION GROUP 3 CUTTER WHEEL AND GUARDS BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE INSTALL GUARD AND RUBBER Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 114 FUNCTION GROUP 4 BOOM ASSEMBLY BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE 35HP VANGUARD POLY CHAIN ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 115 KEY,3/8 SQ. 2-1/4" LONG FUNCTION GROUP 4 BOOM ASSEMBLY BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE 35HP VANGUARD POLY CHAIN ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 116 FUNCTION GROUP 5 MACHINE PIVOT BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE ASSEMBLY PIVOT Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 117 COTTER PIN, 3/16 X 3 FUNCTION GROUP 5 MACHINE PIVOT BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS DESCRIPTION ISSUE ASSEMBLY PIVOT Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 118 6 STEERING & UNDERCARRIAGE 15060005 WELDMENT,EXPANDABLE UNDERCARRIAGE SLIDE,RH BUSINESS LINE STUMPCUTTERS 15060025 PIN,EXPANDABLE UNDERCARRIAGE OWNER DOMAIN CYLINDER,LARGE J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1231F1167215 15060026 PIN,EXPANDABLE UNDERCARRIAGE DESCRIPTION ISSUE CYLINDER,SMALL EXPANDABLE UNDERCARRIAGE Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 119 0400249A ASSEMBLY,UNDERCARRIAGE,RIGHT 0400249B ASSEMBLY,UNDERCARRIAGE,LEFT FUNCTION GROUP 6 STEERING & UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1231F1167215 DESCRIPTION ISSUE EXPANDABLE UNDERCARRIAGE SCHEMATIC Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 120 FUNCTION GROUP 6 STEERING & UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1230C1167041 DESCRIPTION ISSUE LEFT UNDERCARRIAGE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 121 0400249D Mid Roller Assembly FUNCTION GROUP 6 STEERING & UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1230C1167041 DESCRIPTION ISSUE LEFT UNDERCARRIAGE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 122 FUNCTION GROUP 6 STEERING & UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1230C1167041 DESCRIPTION ISSUE RIGHT UNDERCARRIAGE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 123 0400249D Mid Roller Assembly FUNCTION GROUP 6 STEERING & UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS OWNER DOMAIN J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 1J9BH1230C1167041 DESCRIPTION ISSUE RIGHT UNDERCARRIAGE ASSEMBLY Revised 3.15.05 DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
  • Page 124 12A-0816ZI BOLT,HEX C/S 1/2-13 x 2 UNC GR8 7 OPTIONS 15060001 INSTALL,UNDERCARRIAGE BUSINESS LINE STUMPCUTTERS 15070002 WELDMENT,SCRAPE BLADE OWNER DOMAIN 15070009 PLATE,SCRAPE BLADE/FRAME J.P. CARLTON COMPANY DIV. DAF INC. SERIAL NUMBERS 29A-08 NUT,STOVER LOCK, 1/2-13 UNC GR8 DESCRIPTION ISSUE 31A-08ZI FLAT WASHER 1/2 USS GR 8 Z&Y SCRAPE BLADE Revised 3.15.05...
  • Page 145  ...
