Monster Antenna KATANA 60 User Manual

KATANA 60

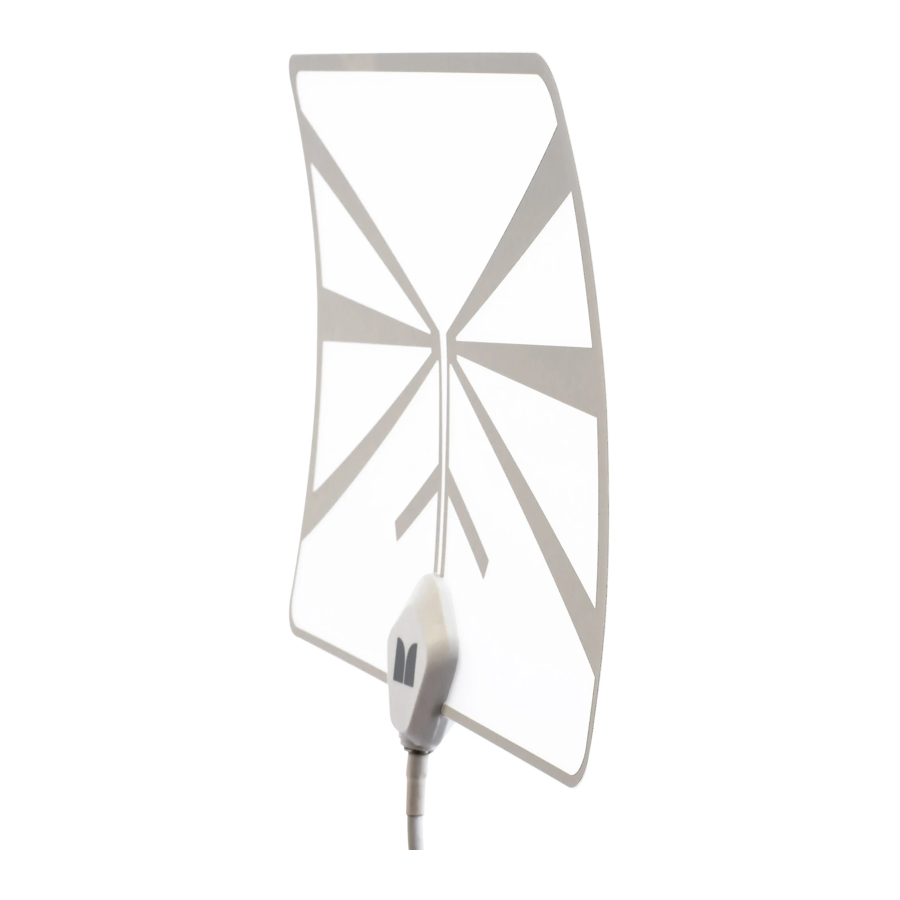

MONSTER® KATANA 60 is a high definition TV antenna
that receives HDTV, SDTV, RCA'S DTTV and analog TV
signals. KATANA 60 is designed to receive crystal clear
picture, and is easy to install and use.
Please read this manual thoroughly before use.

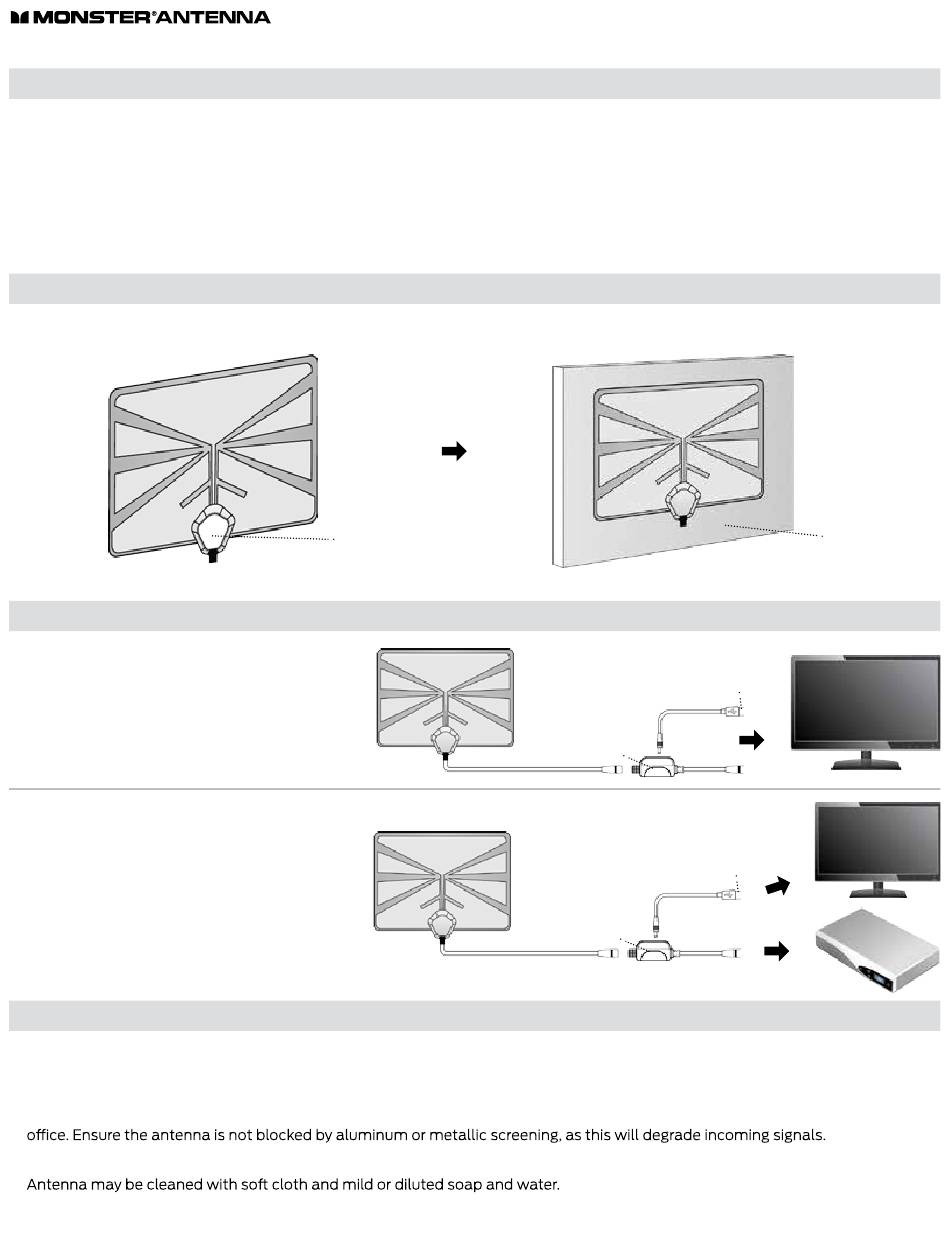

Remove all parts from box and mount antenna on desired surface (wall, window, etc.) as pictured below:
Option A: Connect antenna cab e and
USB to commutator then connect
commutator coaxial and USB cable
directly to the TV (USB may also connect
to any USB compatible power source)
Option B: Connect antenna cable and
USB to commutator, then connect
commutator to coaxial output to STB
(Set-Top Box), and connect USB cable to
the TV or any direct USB compatible power
source :
Note: USB cable will only work when
connected to TV or direct power source
Do not connect USB to STB.
1. KATANA 60 HD Antenna is intended for indoor use only.
2. The location of the antenna is important to maximize signal strength. Antenna should be kept as far as possible from sources of
electrical disturbance such as air conditioners, laundry machines, microwaves, etc.
3. Mounting the antenna in a window results in the best performance. Incoming signals will be degraded by objects in the home or
4. Mount the antenna in a horizontal postion.
5.
UltraThin Amplified Indoor Full HD Antenna
U S E R M A N U A L
A S S E M B L Y
double sided
adhesive
C O N N E C T I O N
A T T E N T I O N

FEATURES:

• Innovative, flat, razor-thin antenna design.
• High gain and low error rate increases quality of reception and
eliminates pauses and mosaic errors.
• Multi-directional design pulls in signals from all directions.
• Receives both digital and analog TV channels.
commutator
commutator
MONSTER Katana, 20218 Hamilton Ave, Torrance, CA 90502
MAVA5001S
wall
USB
USB
