Page 3

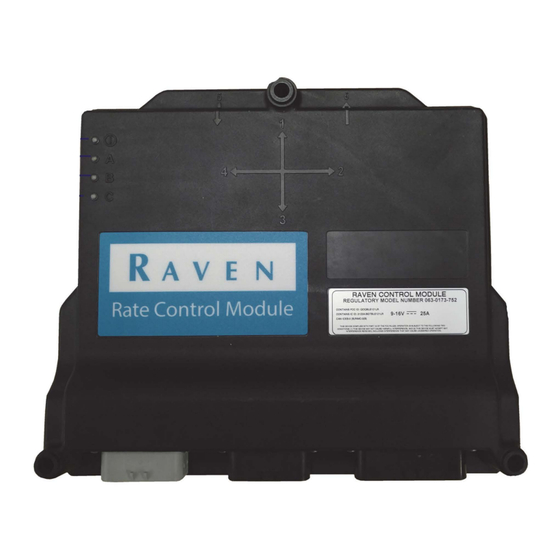

RAVEN RCM SETUP Enter the Profile Name: FAST + Model Number (Example: FAST 9518T, FAST 8313) Select Machine Type: For Sprayers use: “Pull - behind Sprayer” For Applicators use: “Liquid Fert. Tool” Enter the Application Width. Press Next. PAGE 1...
Page 4
Leave at “1” unless multiple ECU’s are used. Press Next. PAGE 2...
Page 5
Choose Application Mode. FAST products only use “Liquid”. Liquid choice selected. Press Next. PAGE 3...
Page 6
Enter number of sections (ball valves). FAST only uses “3-wire” valves. If the sections are unequal widths, uncheck the box. Example setting: 3 sections, 3-wire valve. Box unchecked for unequal widths. Press Next PAGE 4...
Page 7
Enter the width of the sections. For Sprayers: Enter number of tips per section x spacing = width of section. The sum of the sections must equal the application width entered on (page 1). FOR APPLICATORS: 16 row, 17 coulter example, 30” spac- 16 row, 15 coulter example, 30”...
Page 8
Not used unless there are special require- ments. Press Next. PAGE 6...
Page 9
Section summary per product. If using a switch box, switch assignment is entered here. Press Next. PAGE 7...
Page 10
Choose pressure sensor if installed. FAST only uses 0-250 psi. Press Next. PAGE 8...
Page 11
FAST does not use auxiliary functions, leave unchecked. Press Next. PAGE 9...
Page 12
Standard control valve setup. If machine has a PWM pump, choose “PWM”. PWM setup. Press Next. PAGE 10...
Page 13
If using ACE PWM pump, change the coil frequency to 122. Max Pump PWM: Enter a maximum PWM duty cycle percent to set the maximum desired output for a pulse width modulated (PWM) hydraulic control valve. This setting limits how far the PWM valve will open.
Page 14
Flowmeter tag calibration number. Enter calibration number found on the flowmeter tag. Flowmeter tag Pulse/Units number. Choose “Flowmeter Pulse/Units”. Flowmeter calibration number entered. Flowmeter Pulse/Units number entered. Press Next. PAGE 12...
Page 15
FAST does not use a tank fill sensor. Enter tank capacity. Enter current tank level. Enter desired low tank level. Choose alarm. Press Next. PAGE 13...
Page 16
Enter the desired rates. Enter the desired rate bump. “Rate Bump” can be used if preferred over a predefined rate. Decimal shift can be used for finer rates. Example settings. Press Next. PAGE 14...
Page 17
Sprayers: Nozzle capacity at minimum psi, multiply by the number of nozzles. Example: For FAST installed tips, see tip chart. .18 x (number of tips) = minimum flow rate. Applicators: Can be run without entering a minimum flow rate, but if desired, the same formula should be used.
