Product Manual
www.andoveraudio.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model-One and is the answer not in the manual?

Questions and answers

Related Manuals for andover Model-One

Summary of Contents for andover Model-One

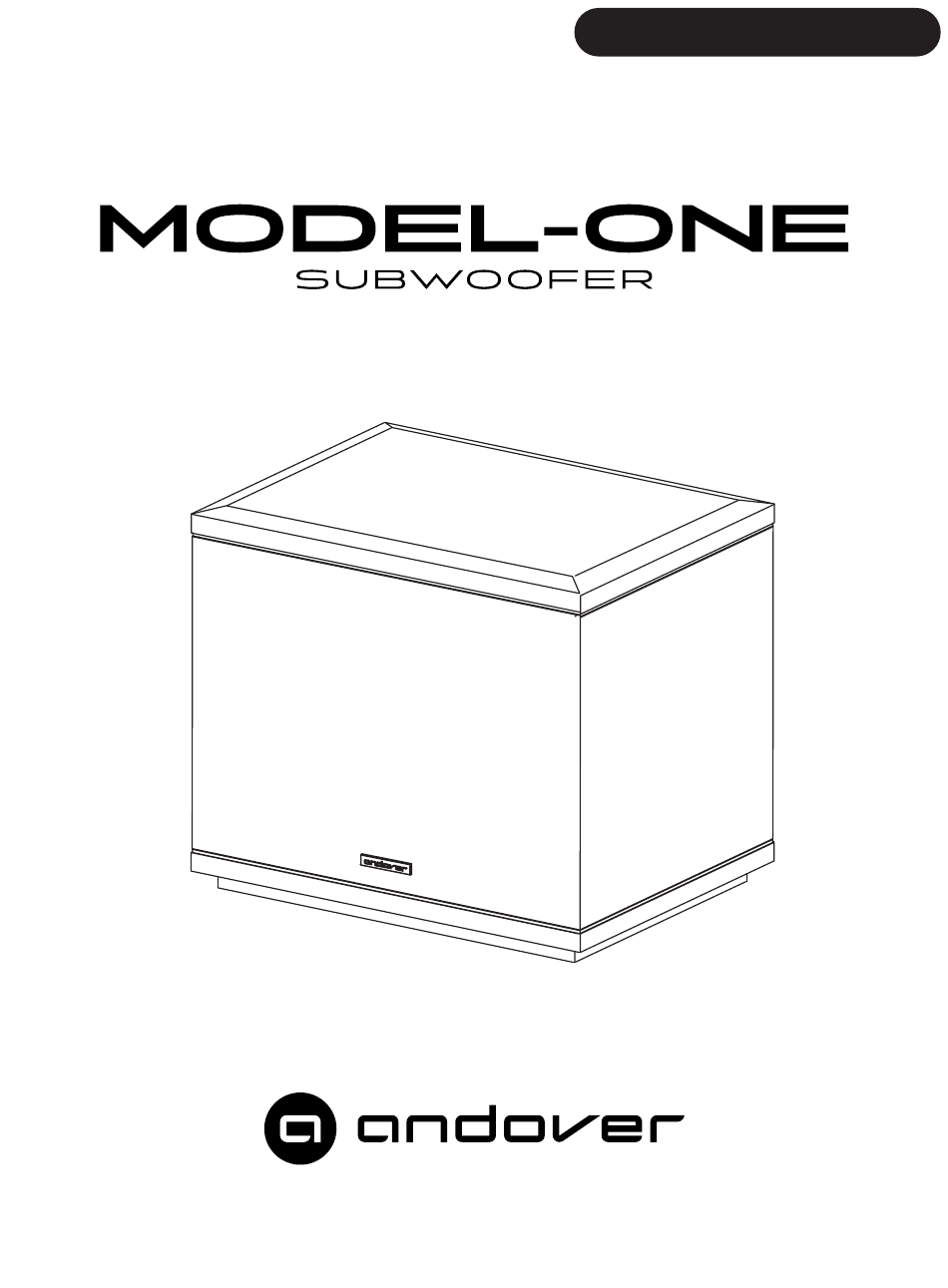

  • Page 1 Product Manual www.andoveraudio.com Page 1...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    Table of Contents Warnings / FCC Statement............4-5 Introduction / About............6 In the Box / Room Placement............7 Subwoofer Setup............8, 9 Making the Initial Connections............10 Adjusting Level and Frequency............11 Isogroove Technology............12 Guarantee / Product Cleaning............13 Specifications / Contact............14 Page 3...

  • Page 4: Warnings / Fcc Statement

    • IF YOU ARE EXPERIENCING PROBLEMS WITH THIS been exposed to rain or moisture, does not operate PRODUCT, CONTACT ANDOVER AUDIO CUSTOMER normally, or has been dropped. SUPPORT. DO NOT USE THE PRODUCT UNTIL IT 13. The apparatus shall not be exposed to dripping or HAS BEEN REPAIRED.
  • Page 5 Changes or modification to this equipment not expressly approved by Andover for compliance will void the user’s warranty. Caution Changes or modification to this equipment not ex- pressly approved by Andover for compliance will void the user’s warranty. Page 5...

  • Page 6: Introduction / About

    Model-One stand system to create a full range music system with the smallest possible footprint. While optimized for use with the Model-One system, it is also a great choice to use as a companion to a high-quality audio system of any brand to extend its low frequency performance.

  • Page 7: In The Box / Room Placement

    Your Model-One Subwoofer uses a digital crossover with a very sharp cutoff above the selected frequency. This makes it possible to separate the subwoofer location from the Model-One Turntable Music System by up to 12 feet and still maintain a smooth blend with the main speakers. Once you have determined the location for your subwoofer, you shoulf fine-tune the volume and low-pass frequency for the best sonic blend from your preferred listening position.

  • Page 8: Subwoofer Setup

    2. Depending your final placement you may need to adjust the volume control away from its center position to match the output from the Model-One Music System from your listening position.
  • Page 9 3. Prepare the top stand by installing the 4 cam-lock pins into the innermost threaded holes. Screw them in fully, but do not overtighten. Also press the wooden alignment dowels fully into the larger adjacent holes. 4. Place the top stand on the subwoofer, being careful to align the pins into the proper holes.

  • Page 10: Making The Initial Connections

    3. Switch the power switch adjacent to the AC input ON. 4. Switch the Power mode switch to the AUTO (middle) position. If using the Model-One Turntable music system, set the Volume and Frequency knobs to their center detent position. This is our factory-recommended setting.

  • Page 11: Adjusting Level And Frequency

    Adjusting Level and Frequency The centered positions of the level and frequency knobs represent the ideal starting point when the subwoofer is used with the Model-One Music System. It should provide an ideal match when the subwoofer is used as the lower section of the stand.

  • Page 12: Isogroove Technology

    Isogroove addresses. If this occurs, you may need to reduce the volume level of the subwoofer or move the subwoofer further away from the Model-One Turntable Music system. 2. The building structure may transmit vibrations through the floor, and eventually into the turntable.

  • Page 13: Guarantee / Product Cleaning

    (2) years from the date of delivery to customer. Andover Audio will repair or replace the unit as necessary to restore proper operation. This warranty covers both parts and labor for the warranty period.

  • Page 14: Specifications / Contact

    With top removed: 18” W x 13.5” D x Crossover Frequency: Variable 40Hz – 14.75”H 140Hz. Default (center) 100Hz. Andover Audio, L.L.C. 15 High Street North Andover, Massachusetts 01845 978.775.3670 www.andoveraudio.com | support@andoveraudio.com | Andover is a registered trademark of Andover Audio L.L.C. Page 14 1278RA...
