- Page 1 DIGITAL DIFFERENTIAL PRESSURE METER USER MANUAL R00188 R00190 Before using the instrument, please read this manual carefully and save for future reference. Untitled-2 1 01/07/2019 10:21...
- Page 2 Safety information Safety Information. In order to use the pressure meter correctly, please read the instructions carefully before use, noting any safety information. It is recommended that you keep this instruction manual safe for future reference. Warning. A Warning identifies conditions and actions that pose hazards to the user.
- Page 3 Safety information 4. Do not operate the pressure meter around explosive gas, vapour, or dust. 5. Do not use the pressure meter on or near live apparatus. 6. Replace the batteries as soon as the battery indicator appears. This will reduce the possibility of false readings.
- Page 4 Maintenance Maintenance Information. • The unit may be cleaned using a dry soft cloth, do not use a wet or abrasive cloth, solvents or detergents. • For extra protection always store the instrument in the case provided when not in use. Calibration.
- Page 5 Features Accessories. • Storage pouch. • 2 x hose. • 3 x AAA batteries (included). • User instructions. Features. • LCD screen. • Back-light. • Data hold function. • Record, Max/Min/Avg. • Timer. • Low battery indicator. • Auto power off. •...

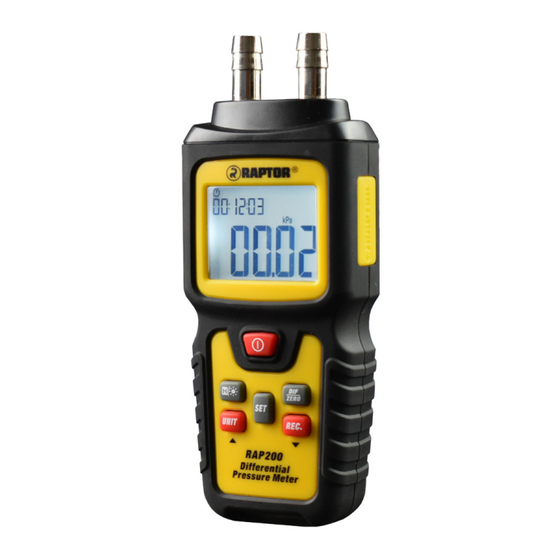

- Page 6 Features Physical Appearance. Positive connection LCD screen Negative connection Settings Power Hold & Back-light Differential & Zero Record Max/ Measurement unit Min/Avg Height - 147mm Weight - 145g Width - 58mm (without batteries) Depth - 30mm Untitled-2 6 01/07/2019 10:21...
- Page 7 Measurement Method Measurement Process. 1. Power on. 2. Press UNIT button to choose the desired unit of pressure. 3. Connect the hose to the positive pressure input interface and the negative pressure input interface as required. 4. When the hose is open to the surrounding environment, press the ZERO button for more than 2 seconds to reset the meter to zero.
- Page 8 Measurement Method Differential Pressure Measurement. When measuring the differential pressure, press the DIF button to display the DIF character, and the difference measurement is performed at this time. Zero Adjust. Press and hold the ZERO button for 2 seconds or until the display shows all zeroes.
- Page 9 Measurement Method Unit Selection. The Pressure Meter has 12 Selectable units: psi, mbar, inH2O, kPa, inHg, mmHg, ozin2, ftH2O, cmH20, kgcm2, mmH20 and bar. These can be scrolled through by pressing the UNIT button. Data Hold. Press the Hold button to keep the pressure readings on the screen.
- Page 10 Settings Set Options. Long press the set button to enter the settings mode. Long press the set button to exit. Auto Power Off Setting (P). Enter the power off setting mode, the pressure meter will display P - 10. Use the keys to select the setting of auto power off time between 5 and 60 minutes, long press...
- Page 11 Battery Replacement Battery Replacement. In order to avoid inaccurate pressure readings, always replace the batteries when the appears on the top right of LCD screen. Always remove the connection hose before changing the batteries. When the instrument is not in use for a long time, please take out the batteries to prevent damage caused by leakage.
- Page 12 Technical Measurement Range ±5PSI Maximum Pressure 10PSI Accuracy ±0.3% full scale Repeatability ±0.2% Response time 0.5 Seconds Unit Range Resolution ±5.000 0.001 inH ² O ±138.4 Mbar ±344.7 ±34.47 0.01 inHg ±10.18 0.01 mmHg ±258.5 ozin2 ±80.00 0.01 ftH ² O ±11.53 0.001 cmh ²...
- Page 13 Untitled-2 13 01/07/2019 10:21...
- Page 14 Limited warranty 1 year warranty against any manufacturing defects or faulty workmanship. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination or abnormal conditions of operation or handling. WEEE Directive 2012/19/EU At the end of the product life, dispose of the instrument &...
