Summary of Contents for Oval SP493613B
- Page 1 SWIMMING POOL INSTRUCTION MANUAL Modelnummer: SP493613B Modelnummer: SP613613B...

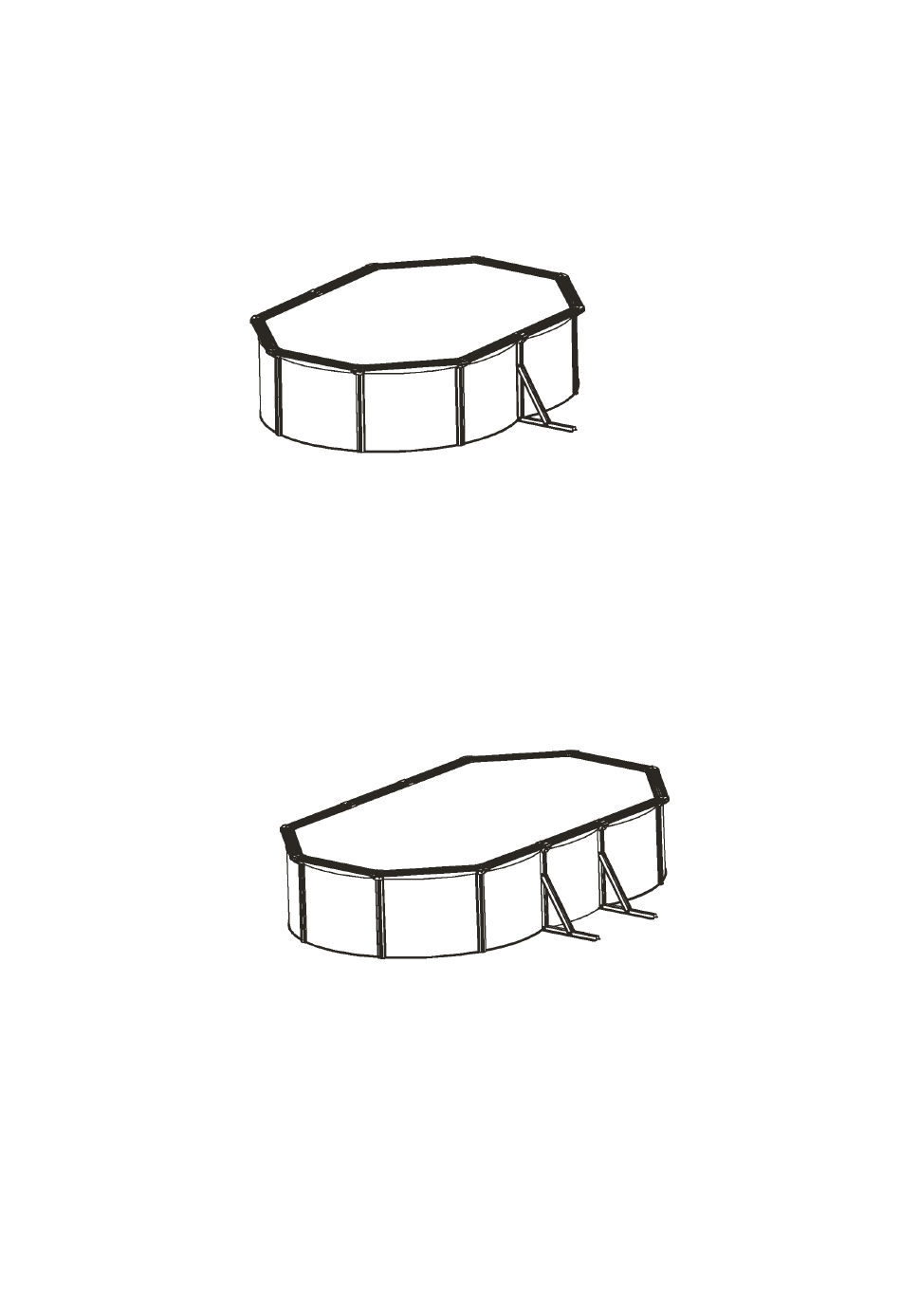

- Page 2 Modelnummer: SP733613B Modelnummer: SP914613B...
-
Page 3: Important Safety Instructions
WARNING! To lessen your risk of serious injury or death, follow these rules: IMPORTANT SAFETY INSTRUCTIONS The following instructions contain important safety information; we strongly encourage you to read these important safety instructions and abide by them when using the Premium Metal Wall Pool. When installing and using this electrical equipment, basic safety precautions should always be followed, this includes the following. - Page 4 WARNING! To lessen your risk of serious injury or death, follow these rules: WARNING - To avoid electrocution, do not permit electric devices i.e. light, telephone, radio, television, hair dryer, etc within 2.5 Metres this Pool. WARNING - RISK OF ELECTRIC SHOCK. Never operate any electrical appliance when in the wet.
- Page 5 Produd Contents TOP PLATFORM (1380mm Length) SIDE TOP PLATFORM A (1332mm Length} SIDE TOP PLATFORM B (1235mm Length} TOP METAL PIECE UPPER JOINT PROTECTOR BOTTOM JOINT PROTECTOR BOTTOM METAL PIECE A HORIZONTAL SIDE BEAM B ANGLED SIDE BEAM POOL WALL C VERTICAL SIDE BEAM M6X11 —BOLT VERTICAL SUPPORT...
-
Page 6: Selecting A Suitable Site
Selecting a Suitable Site Carefully select the site for your new pool. This is the most important decision you will have to make to ensure the safety and success of your pools construction. An incorrect site could cause problems in the future that may cause injury, death or financial loss. - Page 7 Pool Type PART NO. PARTS DESCRIPTION SP493613B SP613613B SP733613B SP914613B 22001001 POOL WALL 22001003 POOL LINER 22001002 LEAF SKIMMER 22001004 GROUND SHEET 22001005 POOL COVER 22001006 LADDER 22001007 HORIZONTAL SIDE BEAM 22001008 VERTICAL SIDE BEAM 22001009 ANGLED SIDE BEAM 22001010...
- Page 8 Pool Setup MARKING THE SITE 1. Mark the centre of the site and drive a stake or screw driver into the soil. 2. Tie a piece of string onto the stick. At the other end of the string, tie a funnel. The distance between the stick and the funnel should be 15cm more than the radius of the pool 3.
- Page 9 Levelling the Area Warning! Levelling is extremely important: take as much time as possible to work out a site that is completely firm and levelled. Use a carpenter's level and straight edge to ensure that the site is completely level, flat and firm! (See diagram 4) The pool contains a huge amount of water and thousands of kilos of weight.
- Page 10 Pool Wall Side Frame Support Assembly The Pool Wall Side Frame Support consists of a left and right frame connected by a stainless steel belt. (See diagram 7)
- Page 11 POOL POOL WALL WALL SIDE FRAME FRAME SUPPORT SUPPORT ASSEMBLY ASSEMBLY Connect the the Steel Belt Belt to either end end of the Left Left and Right Side Side Pool Frames. Frames. (See (See diagram 12 12 and 13) Make sure the Steel Belt Belt is protected is protected by the...
- Page 12 Produduct Assembly 5. Place the Bottom Metal Piece's between the joins of the Rails with the triangular end pointing out from the pool wall. (Diagram 18) INSIDE OF POOL (Diagram 19) (Diagram 18) OUTSIDE OF POOL 6. Place the Inside Bottom Protector over the Steel Belt and screw into the Horizontal Side Beam.
- Page 13 Sele Selecting a a Suitable Suitable Site Site 9. On the the opposite side side of the pool pool wall, carefully carefully lift and place place the steel wall steel wall in between between the Side Side Support Support Frame and and the Inside Inside Bottom Protector.
- Page 14 (see diagram 24). If the deviation is more than 2cm (see diagram 25) then the ground site must be level again. Check also if the pool wall is oval and measure the diameter across a few spots to make sure the differences of each diameter measured are within 2cm.
- Page 15 (Diagram 26) (Diagram 27) Place the Self Adhesive Tape over the exposed screw heads to seal them off.
- Page 16 MAKING A PROTECTIVE SAND CUSHION AT THE FOOT OF THE INNER POOL WALL Pool Liner Seam is centred in the middle of the sand cove Pool Wall To protect the liner against the rail and the pool wall, it is recommended to create a protective covering made of fine brick sand at the foot of the pool wall.
- Page 17 Remove one peg at a time whilst applying the top rails (See diagram 32}. Slide the pipe connectors into one end of the top rail, then connect another top rail, continue around the circumference until all top rails are joined together and firmly pressed into the top of the pool wall.
- Page 18 INSTALLING THE TOP AND SIDE METAL PIECES Hook the top metal pieces over the top rail between the rail connections and align with the Bottom Metal Pieces. {See Diagram 33) Place the Side Metal Pieces over the top of the Vertical Side Beams and Rails and screw into place. {See Diagram 34)
- Page 19 lnstalling The TopAnd Side Top Platforms Place the two Side Top Platforms on top of the Rails and align the holes over the Side Top Metal Piece. Using four Bolts, Washers, Spring Washers, attach the Side Top Platforms to the Side Top Metal Piece and only hand tighten.
- Page 20 3, 4, 5, 8, 9 AND 10 TOP PLATFORM AS SHOWN IN DIAGRAM 35 ASSEMBLY OF THE VERTICAL SUPPORTS Attach the Bottom Joint Protector to the Vertical Support using the screws provided (See diagram 38). Line up all of the screw holes of the vertical supports with the Top and Bottom Metal Pieces.
- Page 21 Attaching Joint Protedors Clip the non-screw end of the Side Joint Protector over the Side Top Platform join and screw the other end into place. Using the same method, attach the Joint Protectors for the Top Platforms and screw into place. Do not over tighten! (See diagram 40 and 41) (Diagram 40) (Diagram 41)
- Page 22 Check ALL Connections and Joins Once completed, check all connections and tighten loose screws and bolts but do not over tighten. Replace damaged components and repair all tears, rips and holes with repair patch (See diagram 42)
- Page 23 Fixing The Leaf Skimmer Unpack your Outlet, Inlet and Skimmer Box from the carton. Carefully read the POOL LEAF SKIMMER instruction manual before you start to mount the Outlet, Inlet and Skimmer Box onto the pool wall. Mark the position of the hole with a cross shaped cut in the centre of the opening. Allow for a little over-hang around the edge.
-
Page 24: Pool Maintenance
Pool Maintenance 1. Always keep your pool clean and apply the correct pool chemicals. Unsanitary water is a serious health hazard. 2. Maintain pool pH level between 7.2 to 7.6 3. Ask your dealers advice first if you want to modify your filtration system. 4. - Page 25 Winterising If you do not want to dismantle the pool in winter, please observe the following instructions: 1. Do not drain away all of the pool water, if you do so, the pool may collapse. 2. Treat the pool water with a suitable chemical product. 3.
