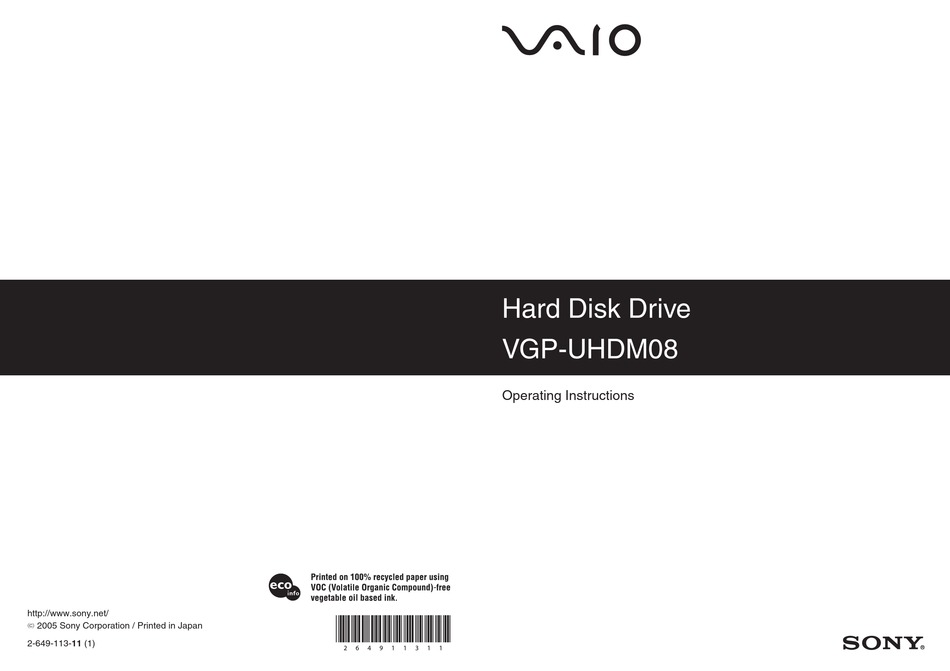

- Page 1 2005 Sony Corporation / Printed in Japan 2-649-113-11 (1) Hard Disk Drive VGP-UHDM08 Operating Instructions...
-
Page 2: Fcc Notice
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For questions regarding your product or for the Sony Customer Information Service Center nearest you, call 1-888-476-6972 in the United States or 1-800- 961-7669 in Canada. -
Page 3: Table Of Contents
If you lose a wireless key/ If the wireless key is broken ... 22 Troubleshooting ... 23 • VAIO and are trademarks of Sony Corporation. • Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 4: Overview
43.7 Mbytes per second. • The ability used to store large amounts of data. • This hard disk drive corresponds to a Sony VAIO computer preinstalled the Windows 2000 or Windows XP operating system, or IBM PC/AT compatible computer so that it not only increases your computer's storage capacity, but also allows for easy data transfer between computers. -
Page 5: Special Features
Compatible computers The drive can be used in conjunction with the following USB 1.1/2.0 compatible computers. (As of September 2005) • The following Sony VAIO computers: Computers with Windows 2000 or Windows XP preinstalled. • The following IBM PC/AT compatible computer: Computers with Windows 2000 or Windows XP preinstalled. -
Page 6: Supplied Accessories
Supplied Accessories After unpacking the hard disk drive, make sure that the accessories listed below are present. If anything is missing or damaged, contact the Sony dealer where you purchased this product or a Sony service representative in your area. -
Page 7: Locating The Controls And Connectors
Locating the Controls and Connectors Front Rear 1 ! DC IN connector 2 USB connector 3 REGIST button 4 Wireless key receiver 5 POWER indicator 6 BATT indicator 7 ACCESS indicator 8 LOCK indicator 9 UNLOCK indicator 0 CANCEL button... -
Page 8: Getting Started
Getting Started Installing the batteries Turn the drive bottom side up. Slide the battery compartment lid out 1 and then open it up Be sure to line up the + and - of the batteries and insert the two supplied size AA (LR6) alkaline batteries. Notes To avoid battery leakage or corrosion, be sure to do the following: •... - Page 9 You can use the drive without batteries by connecting the AC adapter (not supplied) to the connector (DC IN). If you use an AC adapter, use only the Sony VGP-AC5V1 (not supplied). No other AC adapter can be used. For information on the AC adapter, call the Sony dealer where you purchased this product or a Sony service representative in your area.
-
Page 10: Connecting The Drive
• Some computers may not operate the drive correctly due to lack of power. In this case, you need to use the AC adapter. For information on the AC adapter, call the Sony dealer where you purchased this product or a Sony service representative in your area. -
Page 11: About The Power Management Function (Power Save Function)
About the power management function (power save function) When using the computer’s power management function (power save function), note the following points: • Set your computer so that it does not switch to a power save mode while the ACCESS indicator on the drive is flashing. For more information, refer to the manuals provided with your computer. -
Page 12: Disconnecting The Drive From The Computer
Disconnecting the drive from the computer Follow the procedure below to disconnect this drive from your computer. (The following procedures are for Windows XP.) Notes • Before disconnecting the drive, close any open programs. • If the message below appears when you attempt to disconnect the drive, close any running software, wait for a while and then repeat the procedure. -
Page 13: Using Security Function
Using Security Function About the drive security function You can lock the drive using the wireless key. When you register the wireless key(s), you cannot use the drive until you release the lock using the wireless key each time you connect the USB cable. Enabling the security function to secure your important data is recommended. -
Page 14: Setting The Security Function
Setting the security function Notes • Do not disconnect the USB cable when the wireless keys are being registered. • Be sure that the computer is not in power save mode when the wireless keys are being registered. • You need to register both wireless keys. Turn on the computer and connect the drive using the USB cable (page 10). - Page 15 Touch the wireless key receiver with the other wireless key after the blue light of the wireless key receiver starts to flash again. The blue light will go out after the wireless key is registered. Tips • The blue light of the wireless key receiver repeats this pattern: flashes twice and goes out for one second.
-
Page 16: Using The Drive (Secure Mode)
Using the drive (secure mode) If you use the drive registered with wireless key, you need to perform the following procedures each time you connect the USB cable to the computer. Furthermore, you also need to operate them as below status. •... -
Page 17: Deactivating The Security Function
Deactivating the security function If you want to deactivate the security function of the drive, follow the steps. Connect the drive to the computer and touch the wireless key receiver with the wireless key to unlock. Turn the drive bottom side up and open the lid, then press the CANCEL button. -
Page 18: Precautions
Precautions Usage and storage locations Do not use or store this drive in locations subject to high humidity, high temperatures, strong vibrations, or direct sunlight. Operation • Do not move the drive during operation. This prevents the possibility of malfunctions. •... -
Page 19: Maintenance
• During data transfer, do not disconnect the USB cable or turn off the computer. Doing so can result in loss of data or data corruption. Sony will not accept any liability for data loss or data corruption. • Make sure you backup your data with... -
Page 20: Getting Help
AC adapter* (Input: AC 100V-240V, 50/60 Hz, Output voltage and current: 5.2V, 2.9A(max)) * The AC adapter is not supplied with this product. If you use an AC adapter, use the Sony VGP-AC5V1 (not supplied). No other AC adapter can be used. -
Page 21: Operating Environment
Operating environment Operating temperature 41°F to 95°F (5°C to 35°C) (temperature gradient less than 18°F (10°C)/hour) Operating humidity 20% to 80% (no condensation), provided that humidity is less than 65% at 95°F (35°C) (hygrometer reading of less than 84°F (29°C)) Storage temperature –4°F to 140°F (–20°C to 60°C) (temperature gradient less than 18°F (10°C)/hour) -
Page 22: If You Lose A Wireless Key/If The Wireless Key Is Broken
(page 14). Note When you replace a wireless key (by ordering from the Sony dealer where you purchased this product or a Sony service representative in your area), be sure to handle the wireless key you still have with care. -
Page 23: Troubleshooting
Troubleshooting If a problem occurs during operation of the unit, refer to the information provided in this section. If the problem persists, consult your nearest Sony dealer. For contact information, see “Getting Help” on page 20. Also refer to the manuals provided with your computer. - Page 24 Symptom Data read/write failure. Cannot read/write data. An error message appears after you disconnect the USB cable. Cannot access folder. Cannot lock/unlock drive security. Cause/Remedy c The drive does not function correctly with old versions of Windows that have been upgraded. c The drive has been shaken or bumped.
