ELECTRIC SCOOTER
APP Control
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-MOBILITY AL1 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTOMOBILI LAMBORGHINI E-MOBILITY AL1

Summary of Contents for AUTOMOBILI LAMBORGHINI E-MOBILITY AL1

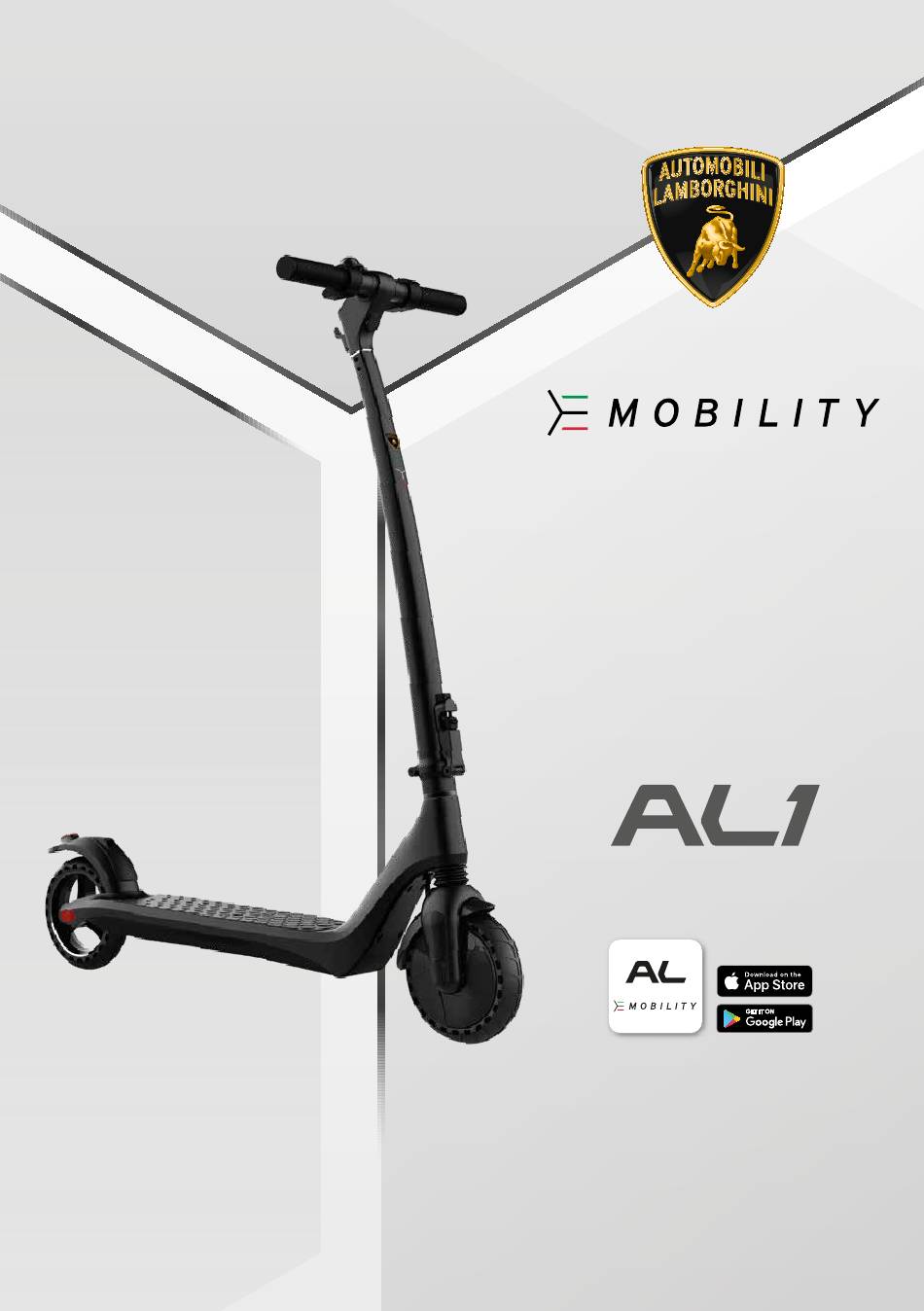

  • Page 1 ELECTRIC SCOOTER APP Control USER MANUAL...
  • Page 2 ENGLISH ELECTRIC SCOOTER USER MANUAL...

  • Page 3: Table Of Contents

    CONTENTS Package contents Product overview Assembly and configuration Charging AL e-Mobility app configuration How to ride the electric scooter Brakes Range Storage and cleaning Safety instructions Battery Responsibilities Folding, transport and opening Daily maintenance and care Technical specifications Troubleshooting Error code table...

  • Page 4: Package Contents

    1. PACKAGE CONTENTS The handlebar must be fitted to the assembled electric scooter using the special screws provided. The screws must be inserted first without tools, then tightened using the tool provided.

  • Page 5: Product Overview

    2. PRODUCT OVERVIEW Control panel and power button Bell Accelerator Brake lever Front light Locking latch Latching point Quick release lever Locking mechanism Rear mudguard / brake Brake light Front fork Battery Drive wheel LED/RGB ambient light Charging port Kickstand (opposite side)
  • Page 6 CONTROL INFORMATION / CONTROL PANEL 1. Speedometer: displays the current speed of the electric scooter. 2. Modes: there are three driving modes available. "S Black" indicates Energy Saving mode (maximum speed 6 km/h, ideal for beginners), "S White" indicates Standard mode (maximum speed 15 km/h), and "S Red"...

  • Page 7: Assembly And Configuration

    3. ASSEMBLY AND CONFIGURATION Release the rod by Fix it as shown applying pressure in the picture to the mudguard Put the handlebar rod upright After assembly, press the power button to check that the electric scooter is working properly.

  • Page 8: Charging

    4. CHARGING Lift the rubber cap When charging is complete, replace the rubber cap Insert the power supply into the charging port 5. APP CONFIGURATION What can you do with the AL E-MOBILITY APP? • Start a self-diagnosis • Set the driving modes •...
  • Page 9 Access the preferred app store to download and install the AL E-MOBILITY APP 1. Download the app on the smartphone; 2. Turn on the e-scooter and activate the Bluetooth function on the smartphone; 3. Start the app and log in*, connect your smartphone to the electric scooter via Bluetooth within 1-2 metres;...
  • Page 10 The app's interface with associated electric scooter appears as follows: Associated electric scooter Main interface Electric scooter battery percentage Speed in real time Distance travelled (ODO) Riding modes Usage time Route distance (TRIP) Route record Settings Enable / Disable application...
  • Page 11 The app's interface with associated electric scooter appears as follows: User profile App language Name of the electric scooter Speed units ON/OFF Cruise Control ON/OFF Modalità Zero Start ON/OFF motor lock Choice of static side lights’ colour Choice of color effects of the side lights Information Support request...

  • Page 12: How To Ride The Electric Scooter

    6. HOW TO RIDE THE ELECTRIC SCOOTER Follow the safety instructions before riding the electric scooter. Use approved equipment such as helmets and knee pads. Do not use the electric scooter in the rain. The electric scooter cannot be used by more than one person at a time.
  • Page 13 Minimum weight allowed on the electric scooter: 20 kg. Maximum weight allowed on the electric scooter: 100 kg. Do not ride the electric scooter if you have been drinking alcohol and/or taking medicines. Do not use your phone or listen to music while riding the electric scooter.
  • Page 14 Do not use the electric scooter in dangerous areas, in the presence of flammable and/or explosive substances, liquids and/or dirt. This electric scooter is not designed to be ridden on roads and motorways. To find out where the electric scooter can be ridden, consult the legislative decree in force in the country concerned.
  • Page 15 Always ride with both hands on the handlebar. Do not ride on the electric scooter standing on just one foot. Do not press the accelerator when walking with the electric scooter. Do not ride the e-scooter in puddles or on wet surfaces.
  • Page 16 Pay attention to your head when passing under canopies, doors and the like. When riding at the highest permitted speed, do not turn the handlebar abruptly. Start braking sufficiently far away to avoid obstacles, bends and areas with uneven surfa- ces.
  • Page 17 Do not hit obstacles with the wheels. Do not touch the motor immediately after riding, it could be extremely hot. Maintain a minimum safety distance of 5 m from other vehicles.
  • Page 18 For your own safety, wear a helmet and knee pads to protect yourself from any falls and injuries. The rider assumes all risks for not wearing a helmet or other protective gear. • When you use it for the first time, charge the e-scooter to 100%. Check the battery indicator; if the battery is low, recharge it before use.

  • Page 19: Brakes

    7. BRAKES The electric brake lever is located on the left-hand side of the handlebar. The electric scooter is also equipped with a foot brake on the rear mudguard. When driving on a slippery road and/or while turning, it is recommended to use the brake with caution, otherwise you may lose control of the electric scooter and fall off.

  • Page 20: Safety Instructions

    10. SAFETY INSTRUCTIONS • This electric scooter is a motor vehicle. Mastering riding it requires practice. • This product is an electric scooter for adults. Use is limited to just one person at a time. Do not carry other people at the same time. Children under 18 should use it only under adult supervision.

  • Page 21: Battery

    11. BATTERY (WARNINGS) Make sure the electric scooter, charger and charging port are dry. When the electric scooter is fully charged, the LED light on the charger changes from red (charging) to green (charging completed). Use only the original charger. Other chargers may damage your device and pose other poten- tial risks.

  • Page 22: Responsibilities

    What to avoid: • Opening, dismantling, hitting, throwing or piercing the battery or attaching objects to it. • Touching any substances leaking from the battery, as it contains hazardous substances. • Letting children or pets touch the battery. • Over-charging, over-discharging or short-circuiting the battery. •...

  • Page 23: Folding, Transport And Opening

    13. FOLDING, TRANSPORT AND OPENING The electric scooter must be turned off before being folded up. Folding Press the button Align the latch on located on the lever the mudguard with the attachment point and connect Release the rod by pulling the lever outwards Transport Hold the handlebar rod with one hand or both hands.

  • Page 24: Daily Maintenance And Care

    Opening Release the rod by Close the quick applying pressure to release lever the mudguard Put the handlebar rod upright 14. DAILY MAINTENANCE AND CARE Cleaning and storage: If there are stains on the body of the electric scooter, wipe them off with a damp cloth. If stains persist, put toothpaste on them, brush with a toothbrush, then wipe with a damp cloth.
  • Page 25 4. Use only the original charger to avoid potential damage or fire. 5. Improper disposal of used batteries seriously pollutes the environment. Observe the regula- tions of the country concerned regarding the disposal of batteries, to protect the environment. 6. After each use, fully recharge the battery to extend its useful life. Do not store the battery in an environment where the temperature is above 45°C or below 0°C (for example, do not leave the electric scooter or battery in a car in direct sunlight for an extended period of time).

  • Page 26: Technical Specifications

    15. TECHNICAL SPECIFICATIONS Basic info Magnesium alloy Frame Suspension Front suspension Speed ECO: <= 6km/h | D:<= 20km/h | S: <= 25km/h (max speed) Maximum gradient Brakes Dual brake: electric brake and mechanical brake Motor 350W Tyres 8”front and rear honeycomb tyres Low voltage protection 31V +/- 0.5V Current limit...

  • Page 27: Troubleshooting

    16. TROUBLESHOOTING Tests to be carried out: • After a fall, check that the accelerator lever works properly. To do this, accelerate and decelerate several times. • Check from time to time that the brakes are working properly. To do this, move the electric scooter by pushing it manually and brake suddenly to make sure it responds to the command.

  • Page 28: Error Code Table

    17. ERROR CODE TABLE Error Code Indications Brake failure Accelerator failure Connection failure Motor failure Motor cable failure Control unit failure Overcharge Power supply failure WARNING: Excessive discharge protection The electric scooter in an excessive discharge protection state must be reactivated by charging. If the electric scooter remains off after charging for half an hour, contact your dealer for assistance.
  • Page 29 ATTENTION Disposing of electrical or electronic devices at the end of their life (applicable in all European Union countries and in other European systems with separate collection systems) This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but instead taken to an appropriate collection point for recycling electrical and electronic equipment (WEEE).
  • Page 30 ATTENTION Disposal of dead batteries (applicable in all European Union countries and in other European systems with separate collection systems) This symbol on the product or packaging indicates that the battery pack should not be considered normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.
  • Page 31 NOTICES Read the manual and instructions below in full before using the product. Product name: AL1 (electric scooter) Product type: Electric scooter Year of production: 2020 Note: • To recharge this electric scooter ONLY use the charger supplied labelled BC266420200 with the following output voltage: 42V, 2A.
  • Page 32 EC Declaration of Conformity (Machinery Directive) The undersigned MT Distribution s.r.l. based in Via Bargellino 10 c/d, Calderara di Reno (BO) certifies that the design and manufacture of this product Item name: Type of product: Electric scooter Machinery Directive 2006/42/EC Standard MD: EN ISO 12100:2010, EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A12019+A2:2019, EN17128:2019, EN300328 v.2.2.2, EN301489-1 v.2.2.3, EN301489-17 v.3.2.2, EN61000-6-1:20017,...
  • Page 33 The “Automobili Lamborghini” and “Automobili Lamborghini Bull and Shield” trademarks, copyrights, designs and models are used under license from Automobili Lamborghini S.p.A, Italy. Produced and imported by M.T. Distribution Srl Calderara di Reno, Bologna www.mtdistribution.it Errors and omissions excepted...
