NexxTech 8007280 User Manual

LIMITED WARRANTY
THE SOURCE WARRANTY
The Source warrants that this product will be free from defects in
materials and workmanship for a period of one (1) year from the
date of purchase. Within this period, simply take the product and
your proof of purchase to any The Source store or dealer and the
product will be repaired without charge for parts and labour. The
Source reserves the right to charge for transportation. Any
product which has been subject to misuse or accidental damage
is excluded from this warranty.
This warranty is only applicable to a product purchased through
The Source company owned stores and dealers and to a product
that is presented for repair in a country where The Source offers
the product for sale. While this warranty does not confer any
legal rights other than those set out above, you may have
additional statutory rights which will vary under the laws of the
various countries, states, province and other governmental
entities in which The Source operates. This warranty is subject to
all statutory rights you may have in the country of purchase.
Please
Recycle
Imported by:
The Source,
Barrie, Ontario, Canada, L4M 4W5
Manufactured in China
For product support please
visit www.thesource.ca
INTRODUCTION
Thank you for purchasing the Nexxtech 2.1 Speaker System.
This speaker produces rich sound that will be ideal for your PC,
iPod/iPhone, MP3 player and other portable audio devices
enabled with 3.5mm jack. Enjoy!
PACKAGE CONTENTS
• Subwoofer x 1
• Speakers x 2
• User Manual
• Wired Volume Control
• Power Adapter
WARNINGS
Caution. Read these instructions.
Keep these instructions for future reference.
Heed all warnings.
Follow all instructions.
• Do not use this apparatus near water - the appliance should not
be used near water or moisture - for example, in a wet
basement or near a swimming pool.
• Clean only with a dry cloth.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
• Only use attachments/accessories specified by the
manufacturer.
• Unplug the apparatus during lightning storms or when unused
for long periods of time.
• Refer all servicing to qualified personnel.

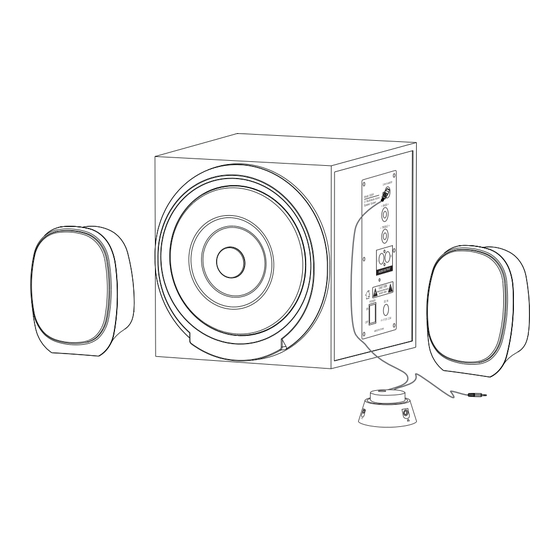

SPEAKER CONNECTIONS
SUBWOOFER CONNECTION
Connection to
Audio Source
COMPUTER IPod
MP3/MP4
DVD/CD/TV
External Adapter
INSTRUCTIONS
1. Connect each satellite speaker to the subwoofer - red RCA
plug into the red Audio output, and the white plug into the
white audio output.
2. Insert the AC adapter jack into the DC IN on the side panel of
the subwoofer.
3. Insert the wired volume control jack into the LINE IN switch on
the side panel of the subwoofer.
4. Turn on the power and adjust the volume level to your desired
preference.
Limited Warranty
© 2013 The Source .
All Rights Reserved.
USER MANUAL
SPECIFICATIONS
Output Power:
Signal-to-Noise:
Distorsion:
Frequency Response:
Driver Unit:
Full Range Unit:
Power Voltage:
Subwoofer Size (WxHxD):
Satellite Speaker Size (WxWxH): 110 x 153 x 103 mm
THD (Total Harmonic Distortion): 1%
SPEAKER CONNECTIONS
SIDE CONTROL BOARD
POWER SWITCH
LINE-IN SWITCH
BASS CONTROLLER
TREBLE CONTROLLER
AUDIO OUTPUT
DC IN 17.5V 2.3A
LINE IN SWITCH
3.5 mm Stereo Plug Connection to Audio Source
Terminal S Plug Connection to Subwoofer
NOTE: When connecting with the subwoofer, plug the line-in switch terminal
" " directly into the jack saying "LINE-IN SWITCH INPUT".
THE FCC WANTS YOU TO KNOW
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for additional
suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Where shielded interface cables have been provided with the product or
specified additional components or accessories elsewhere defined to be used
with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
This Class B digital apparatus complies with Canadian ICES-003.
8007280
25 W + 7.5 W x 2 RMS
≥75 dB
<0.3%
40 Hz~20 kHz
6.5 inches
3.5 inches
~ 100 V - 240 V, 50/60 Hz
250 x 260 x 260 mm
EARPHONE JACK
AUX
