VIA Technologies Pixetto Quick Manual

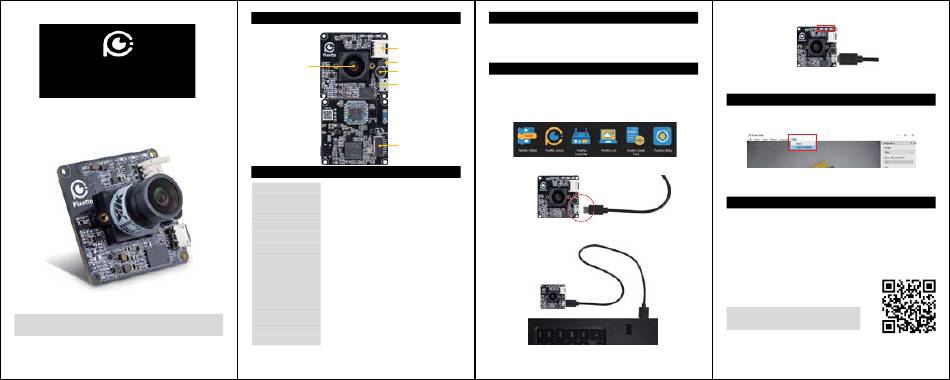

Quick Guide

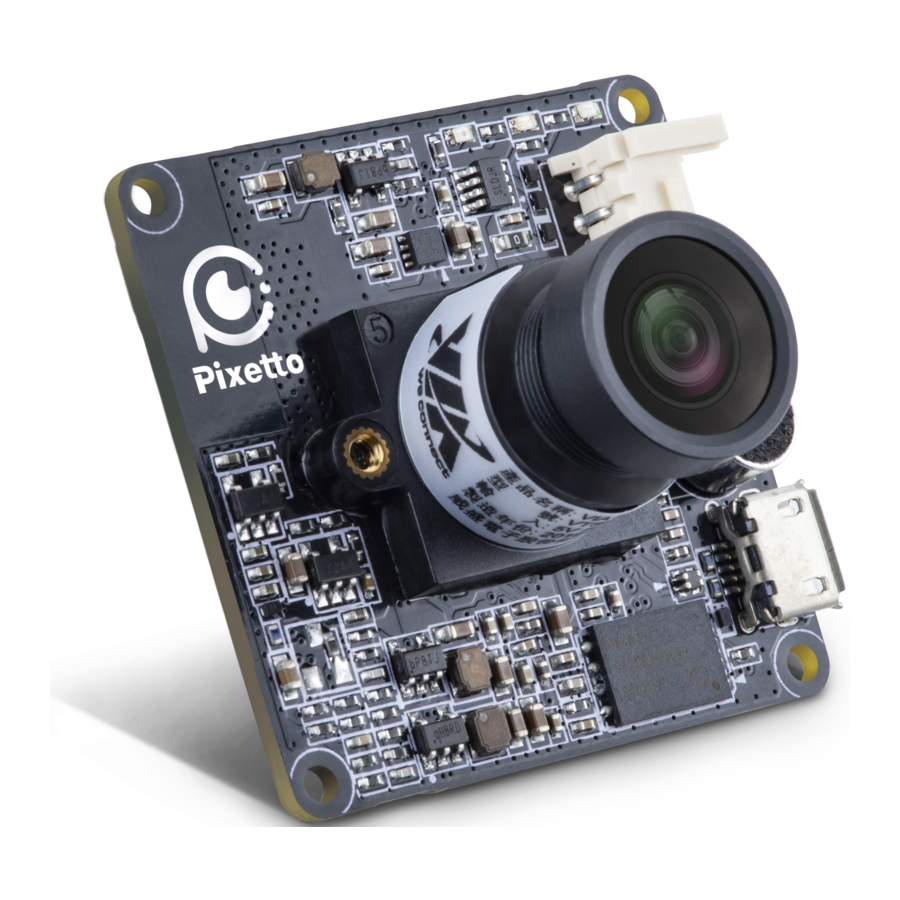

Overview

Grove connector
Reset button
Camera lens
Microphone
Micro USB 2.0 port
Wi-Fi antenna
Micro SD card slot

Specifications

Processor ARM Cortex-A7 900MHz
64MB DDR SDRAM
System Memory
Storage 128MB SPI Flash memory
Camera Sensor GalaxyCore GC2053 CMOS image sensor
Camera Resolution 1920 x 1080
Camera Lens 130° Field-of-View
3 LEDs (for power, Wi-Fi and active status) 1
Onboard I/O
Reset button
1 Microphone
1 Grove connector
1 Micro USB 2.0 port
1 Micro SD card slot 1
Wi-Fi antenna
5V/500mA Micro USB 2.0 port
Power Supply
5V/300mA and 3.3V/500mA Grove connector
Operating System Linux
Operating Temp. 0°C ~ 45°C
Size 38mm x 38mm (1.5" x 1.5")

Packing List

• VIA Pixetto vision sensor
• Micro USB 2.0 cable
• Grove cable
• Quick Guide

Connecting Method

1. Go to www.pixetto.ai website to download the
pixetto-studio-1.0.0-windows.exe.
2. Double click on the pixetto-studio-1.0.0-windows.exe to install.
3. After the installation is completed, the following shortcuts will
be created on your desktop.
4. Connect the Micro USB cable to the Micro USB 2.0 port on the
VIA Pixetto vision sensor.
5. Connect the VIA Pixetto vision sensor to the USB 2.0 or
USB 3.0 port on your personal computer/laptop.
6. Wait until all three LEDs are lit. This indicates that the device is
ready to use. Remember to remove the camera lens cover.
7. Open the VIA Pixetto Utility tool to view the live capture video
from the VIA Pixetto vision sensor.

Updating Firmware

1. Connect the VIA Pixetto vision sensor to your PC/laptop.
2. Open the VIA Pixetto Utility tools. Click Help from the menu
items then select "Device Update" to update the firmware.
3. Wait until the upgrade is completed. CAUTION: Do not unplug
the cable during the update process. Removing the cable may
cause damage to the VIA Pixetto vision sensor.

Safety Precautions

• We recommend adult supervision for users under the age of 18
years old.
• Avoid contact with moist objects, or moist or damp
environments.
• The device is not water proof. Please avoid contact with water
at all times.
• Do not expose the device to extreme high or low
temperatures.
• To avoid damage, do not touch the surface of
the device while in use
For full instructions, please visit the
official website www.pixetto.ai
