Summary of Contents for Belden thinklogical TPL-7

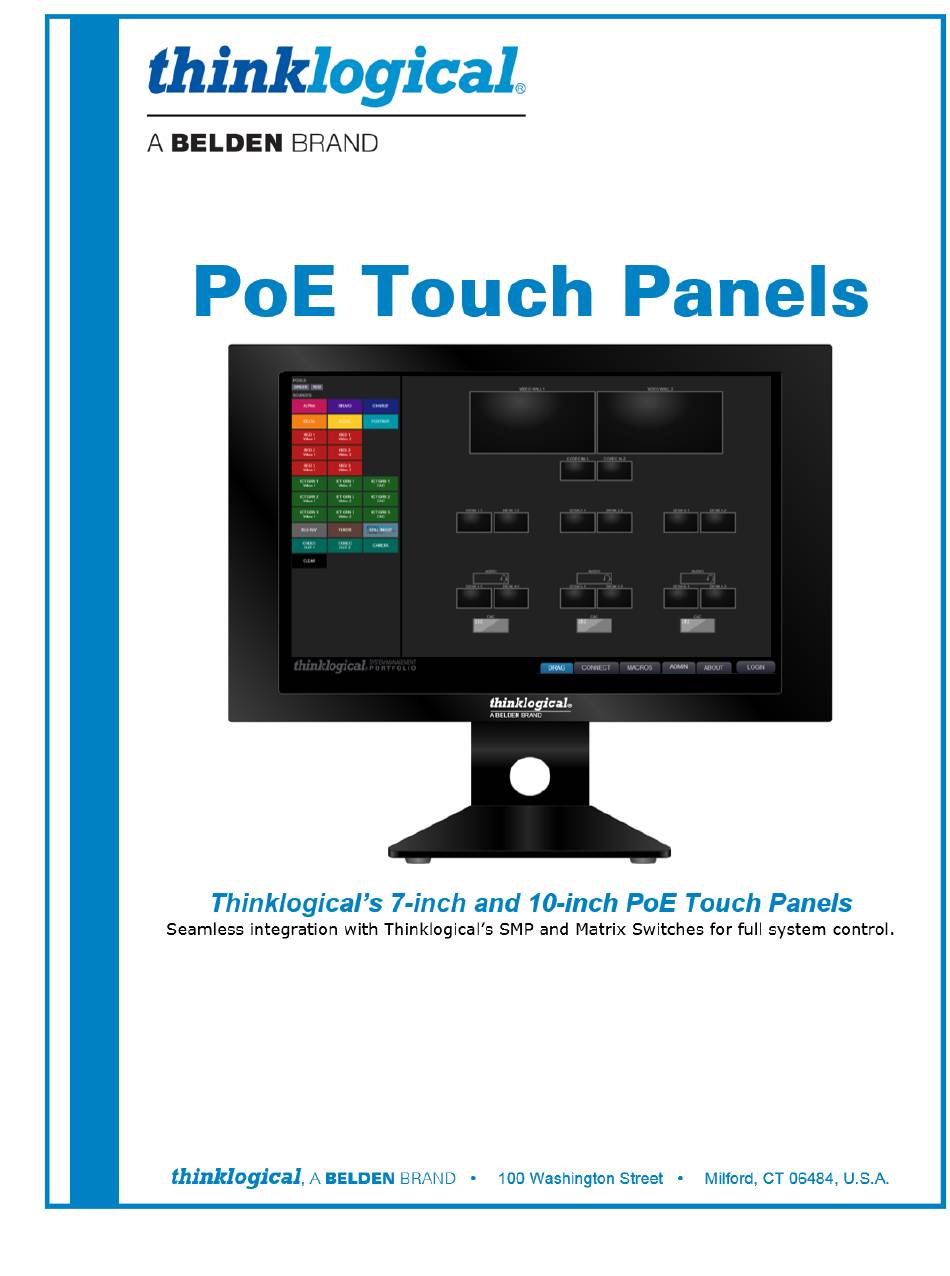

- Page 1 Revision B, February 2021 thinklogical PoE Touch Panel Product Manual Rev. A, 2021...
- Page 2 Copyright Notice Copyright © 2021. All rights reserved. Printed in the U.S.A. Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: PoE Touch Panel Product Manual...
-
Page 3: Table Of Contents
Table of Contents PREFACE..............................4 About Thinklogical ..........................4 ® About This Product Manual ........................4 SECTION 1: PoE TOUCH PANEL FEATURES ..................5 The 10-inch And 7-inch PoE Touch Panel Design ................6 Adjust the Viewing Angle ......................7 The Base ............................ -
Page 4: Preface
PREFACE About Thinklogical A BELDEN BRAND Thinklogical, a Belden Brand, is the leading manufacturer and provider of fiber-optic and CATx video, KVM, audio, and peripheral extension and switching solutions used in video-rich, big-data computing environments. Thinklogical offers the only fiber-optic KVM Matrix Switches in the world that are accredited to the Common Criteria EAL4, TEMPEST SDIP 24 Level B, and NATO NIAPC Evaluation Scheme: GREEN and the U.S. -
Page 5: Section 1: Poe Touch Panel Features
Section 1: PoE Touch Panel Features The Logical Solution Thinklogical’s TPL-10 and TPL-7 Power-over-Ethernet Touch Panels are Linux based computers with widescreen color PCAP (Projected CAPacitive) LCD displays with Gigabit Ethernet control and feature a secured version of a Mozilla Firefox web browser operating in kiosk mode. TPL-10 and TPL-7 Touch Panels support seamless integration with Thinklogical’s SMP solutions to facilitate control of TLX, VX and MX Matrix Switches. -
Page 6: The 10-Inch And 7-Inch Poe Touch Panel Design
The 10-inch and 7-inch PoE Touch Panel Design TPL-7 • Thin-Film-Transistor (TFT) Projective Capacitive (PCAP) Touch Panel. • i.MX 6 QUAD (Freescale) Processor platform, featuring an ARM Cortex-A9 MPCore 4 x CPU and Gigabit Ethernet Controller • TPL-10’s 10” display has 1280 x 800 resolution. TPL-7’s 7” display has 800 x 480 resolution. •... -
Page 7: Adjust The Viewing Angle
Adjust the Viewing Angle Featured on both models, a rear-mounted friction hinge with a spring-loaded lever allows easy adjustment of the viewing angle. The Base Both PoE Touch Panel models have the same broad-based stand with 4 rubber feet for desktop stability. TPL-7 TPL-10 Ordering Information... -
Page 8: Section 2: Set-Up And Installation
Section 2: Set-Up & Installation The Contents of your Order When you receive your Thinklogical PoE Touch Panel, you should find the following items in the ® quantities specified in your order: • PoE Touch Panel – TPL-10 or TPL-7 •... -
Page 9: Choice Of Input Power
Choice of Input Power • The unit is powered by either PD class 4, 25.5W POE+ Ethernet via the GbE connector or by +12V 25W external power supply (PWRA-67) via the 2mm external power connector. (If both sources are present, the 12V external power supply will power the unit.) •... -
Page 10: Network Configuration
Network Configuration Accessing the Linux Terminal (locally) • <Ctrl><Alt><F1> • Login prompt ( default user/pwd) – user / user, then su, with password root Return to the Firefox Browser (locally) • <Ctrl><Alt><F7> • During the browser initialization you may be presented with: Click on Advanced…... -
Page 11: Modify The Tpl's Ip Address Locally As 'Root' User
Modify the TPL’s IP Address locally as ‘root’ user To modify the Touch Panel’s IP address, utilize the ‘nmtui’ (Network Manager Text User Interface) tool at the Linux terminal as ‘root’ user: [root@tpl user]# nmtui Edit a connection 1. Select <Enter>... - Page 12 Activate a 5. When modifications are complete, select connection eth0 eth0 6. First deactivate , then activate , to take effect. thinklogical PoE Touch Panel Product Manual Rev. B, February 2021...
-
Page 13: Modify The Tpl's Hostname Via The 'Nmtui' Tool As 'Root' User (Optional)
Modify the TPL’s Hostname via ‘nmtui’ tool as ‘root’ user. (optional) Not required for SMP integration Set system hostname 1. Arrow down to then hit <Enter> Hostname 2. Arrow down to the and make the desired modifications. < > 3. Arrow down to then hit <Enter>... -
Page 14: Power-Over-Ethernet Touch Panel Technical Specifications
Power-Over-Ethernet Touch Panel Technical Specifications PHYSICAL TPL-10 Panel Dimensions: TPL-7 Panel Dimensions: Height: 7.20” (182.9 mm) Height: 4.72” (119.9 mm) Depth: 2.30" (58.4 mm) Depth: 2.25" (57.2 mm) PoE Touch Panels Width: 10.4" (264.2 mm) Width: 7.72" (196.1 mm) (including housing) Weight: 2.92 lbs. -
Page 15: Section 3: Regulatory & Safety Requirements
European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, Connecticut 06460 USA Thinklogical’s products comply with the requirements of the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU, the WEEE Directive... -
Page 16: Supplementary Information
Electromagnetic Emissions CENELEC EN 55032:2015 Electromagnetic Immunity EN 55024:2011+A1 CENELEC EN 55032:2015 EN 55024:2010+A1 radiated RF Immunity EN 61000-3-2:2014 Harmonics EN 61000-3-3:2013 Flicker EN 61000-4-2:2009 Electro-Static Discharge Test EN 61000-4-3:2006 A1:2008, A2:2010 Radiated Immunity Field Test EN 61000-4-4:2004 Electrical Fast Transient Test EN 61000-4-5:2006 Power Supply Surge Test EN 61000-4-6:2009 Conducted Immunity Test EN 61000-4-11:2004 Voltage Dips &... -
Page 17: Customer Support
1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address: Please include the Return Merchandise Authorization number: Thinklogical, A BELDEN BRAND 100 Washington Street Milford, CT 06460 USA Attn: RMA#... -
Page 18: Appendix A: Poe Touch Panel Quick Start Guide
Appendix A: PoE Touch Panel Quick Start Guide thinklogical PoE Touch Panel Product Manual Rev. B, February 2021... -
Page 19: Appendix B: Poe Touch Panel Dimensions
Appendix B: PoE Touch Panel Dimensions TPL-10 Dimensions: thinklogical PoE Touch Panel Product Manual Rev. B, February 2021... -
Page 20: Tpl-7 Dimensions
TPL-7 Dimensions: thinklogical PoE Touch Panel Product Manual Rev. B, February 2021...
