Setup Guide
Cutter Module (PA-CU-005)
TJ-4420TN/4520TN/4620TN
NOTE
• Only Authorized Brother Dealers or Certified Technicians should perform
this optional installation.
• For more information about installation and use, contact your local
Brother office.
• Disconnect the printer's AC Power Cord from the AC power outlet (electrical
socket) before installing or removing the Cutter Module to avoid the risk of
electrical shock.
• When installing the Cutter Module, do not twist, severely bend, pinch, or bind
any cords. This may cause damage or malfunction.
• After installation or removal, DO NOT leave tools or hardware inside the label
printer, otherwise an electrical shock may occur, or the machine may get
damaged or destroyed by static electricity.
• DO NOT touch the printer parts with your bare hands as these parts may get
damaged or destroyed by static electricity. Before touching the printer parts,
place the printer on an Electrostatic Discharge (ESD) grounding mat or use
anti-static gloves.
• Make sure not to lose the screws or other small parts during installation.
• DO NOT place the machine on an unstable surface, such as a table or shelf. If
the machine falls, injuries may occur.

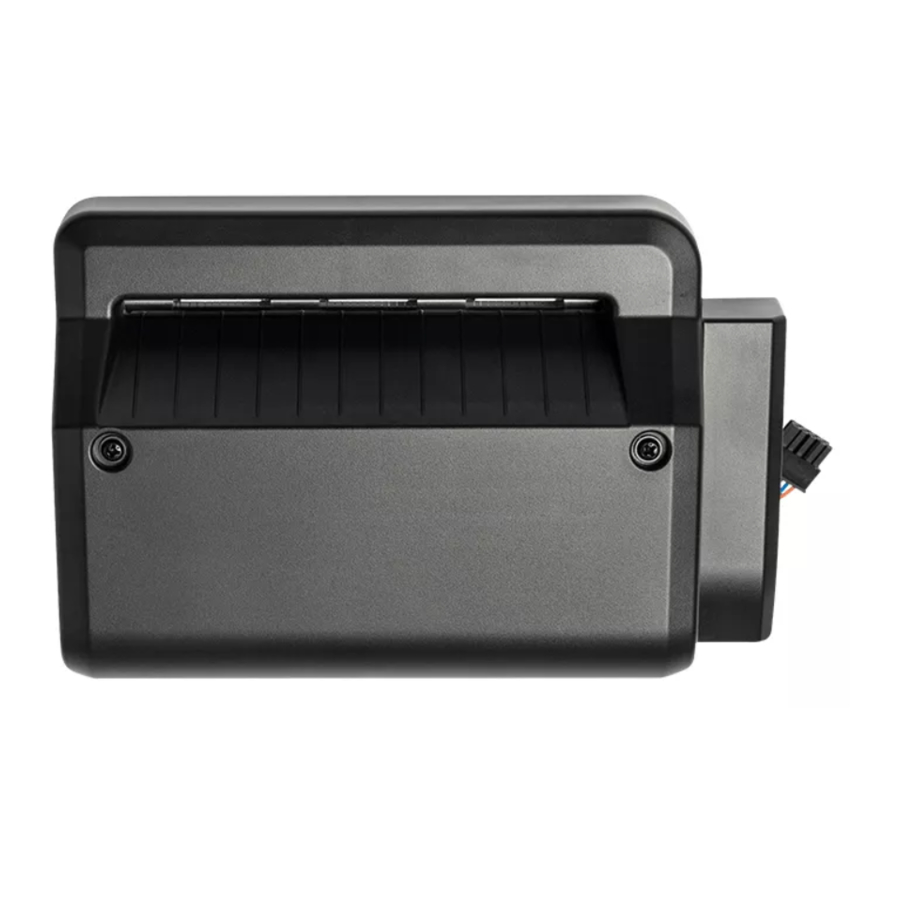

Cutter Module
For the specific Label Printer part names, see section 2.2 Printer Overview in
your label printer's User's Guide.
Shoulder Screw
Fixing Bolts
Screws
NOTE
Place the printer close to the edge of a stable surface so that the Cutter
Module can be fully opened during installation.
1. Open the Media Cover.
2. Remove the two Screws and pull out the Lower Front Panel.
3. Remove the two Screws and then remove the Lower Bar.
Ver. 02

Advertisement

loading

  Related Manuals for Brother PA-CU-005

No related manuals

  Summary of Contents for Brother PA-CU-005

  • Page 1 TJ-4420TN/4520TN/4620TN 2. Remove the two Screws and pull out the Lower Front Panel. NOTE • Only Authorized Brother Dealers or Certified Technicians should perform this optional installation. • For more information about installation and use, contact your local Brother office.
  • Page 2 4. Make sure the AC Power Cord is disconnected from the AC power outlet 6. Fasten the two Fixing Bolts and four Screws to secure the Cutter Module (electrical socket), and then plug the Cutter Module Cable into the Cable (fastened by 0.74 N •...
