Apricum MECip Operating Instructions

MECip
Operating Instructions
Product description
The MECip media coupler connects both media KNX IP and KNX TP. As
KNX IP Router, it couples KNX IP/Ethernet and TP bus system. KNXnet/IP
routing and tunnelling are supported.
MECip is able to filter the traffic according to the installation place in the bus
system hierarchy and according to the built-in filter tables for group-oriented
communication. Configuring from the subline can be disabled. For KNX
devices, MECip provides commissioning, configuring, visualization,
protocolling and diagnostic operation. Operational and filtering states,
malfunction and faulty communication are indicated by LEDs. To ease
commissioning by short-time access to other lines, filtering can be tempo-
rarily deactivated on a single Function button press. Long messages with up
to 240 bytes APDU length are supported. MECip is shown in the network.
With a browser a comfortable front-end can be accessed to read out device
settings, remotely activate functions (like Programming Mode) and watch a
60 min busload history diagram. Also, the integrated bootloader function
enables remote firmware updates via IP/Ethernet.
MECip is a rail-mounted device for installation in distribution boards on 35
mm DIN rails. Supplied by the KNX bus line, the device does not require an
additional power supply. KNX IP devices can be connected by a standard
RJ45 connector directly, and also via Ethernet networks.
Requirements of Directives EMC, RoHS and LVD are met. Standards for
residential, commercial, and industrial environments are fulfilled. The full
text of the EU declaration of conformity is available at the following internet
address: www.apricum.com/mecip
Technical specifications
Power input
Power supply:
Current consumption:
Housing
Dimensions (HxWxD):
Mounting (IEC60715):
Width in space units:
KNX bus connection:
IP connector:
Weight:
Environmental conditions
Operating temperature:
Storage temperature:
Ambient humidity:
Mounting, commissioning and safety notes
• After connection to the KNX bus system, the device works with its
default settings as intended
Warning: Do not connect to 230 V. The device is supplied by the KNX
•
bus and does not require any additional external power supply
• The device may only be installed and put into operation by a qualified
electrician or authorized person
• For planning and construction of electric installations the appropriate
specifications, guidelines and regulations in force of the respective
country have to be complied
• For mounting use an appropriate equipment according to IEC60715
• Installation on a 35 mm DIN rail (TH35)
• Connect the KNX bus line as for common KNX bus connections with a
KNX bus cable, to be stripped and plugged into a KNX TP connector
• Do not damage electrical insulations during connecting
• Installation only in dry locations
• Accessibility of the device for operation and visual inspection must be
provided
• For configuring, use the ETS
Release version/date: R2.5 / June 2020
© 2001-2020 Apricum d.o.o.
Mažuranićeva 4, 21312 Podstrana, Hrvatska
Details, modifications and corrections may be subject to change without notice. Apricum gives no warranty for the accuracy of the document. All rights reserved.
21...30 V DC SELV
< 20 mA
90 x 36 x 71 mm
35 mm top-hat rail (TH35)
2 modules at 18 mm
KNX connector (red/black)
Ethernet (RJ45, female)
68 g
-5...45 °C
-20...60 °C
5...93 % (non-condensing)

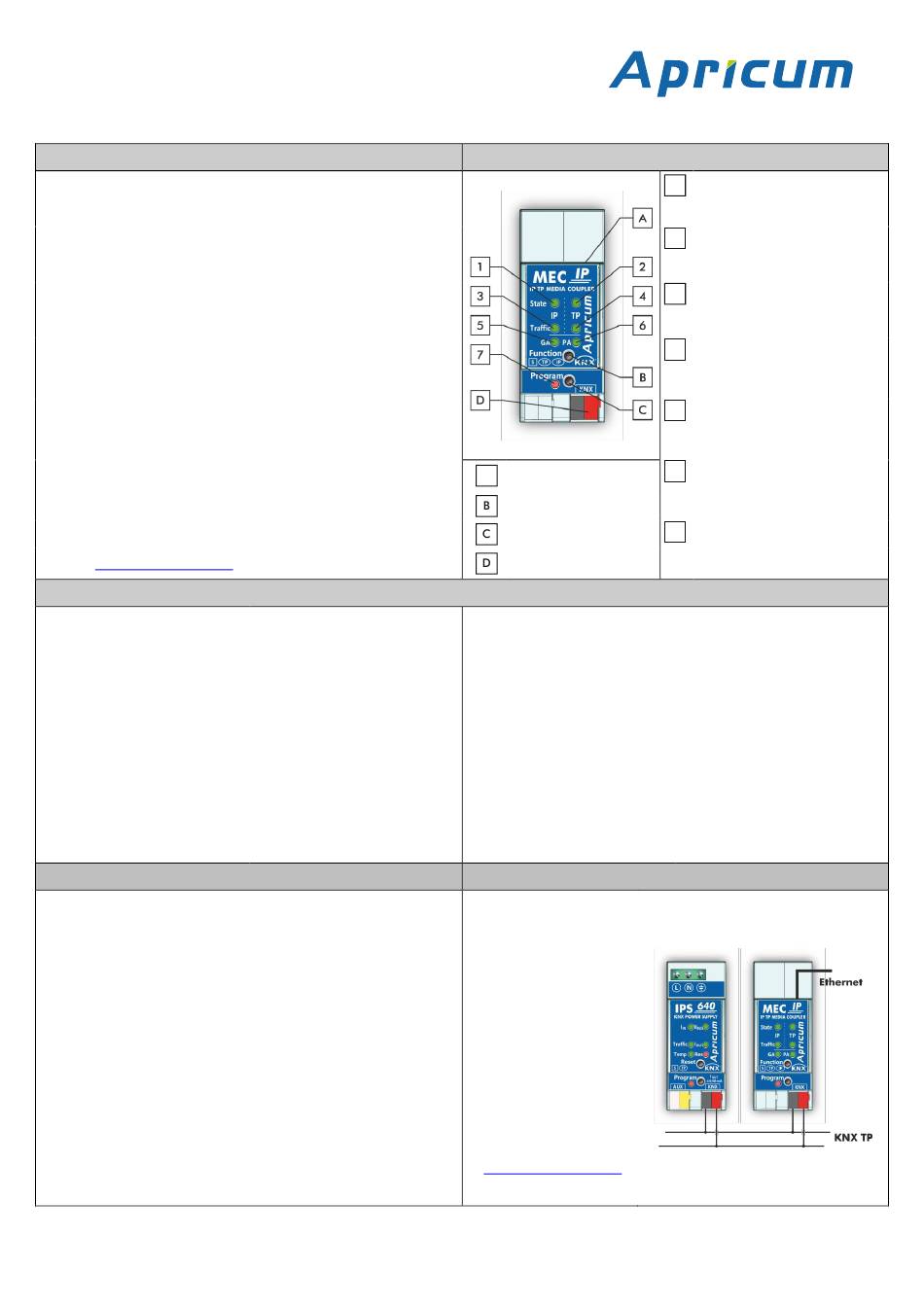

Connectors, buttons and LEDs description
A
Ethernet connector
Function button
Programming button
KNX TP connector
Electrical safety
Pollution degree (IEC60664):
Protection type (IEC60529):
Protection class (IEC61140):
Overvoltage category (IEC60664):
Approbation (ISO/IEC14543-3):
CE Marking
EU Directives:
Standards:
Installation and maintenance
• The housing must not be
opened
• Protect the device from
moisture, dirt and damage
• The device needs no
maintenance
• If necessary, the device
can be cleaned with a dry
cloth
• In the case of damage (at
storage, transport) no
repairs may be carried out
by unauthorized
personnel
• Configuration details and
ETS database:
www.apricum.com/mecip
State IP (Main line)
1
green: Main line OK
orange: Manual Function active
Bus state KNX TP (Subline)
2
green: Subline OK
Telegram traffic IP (Main line)
3
green (blinking):
Telegram traffic extent
Telegram traffic KNX TP (Subline)
4
green (blinking):
Telegram traffic extent
red (blinking):
Transmission error
Group Address routing
5
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Physical Address routing
6
green: Filter active
orange: Route all
red: Block all
<off>: Main line / subline different
Programming LED
7
red: Programming Mode active
red (blinking):
No IP connection
2
IP20
III
II
KNX-certified
LVD (2014/35/EU)
EMC (2014/30/EU)
RoHS (2011/65/EU)
EN50581
EN60950-1
EN61000-6-2/-3
EN IEC 63044-5-1/-2/-3
IEC60950-1
