PowerMadd Sentinel Handguard Mounting
Can Am Outlander

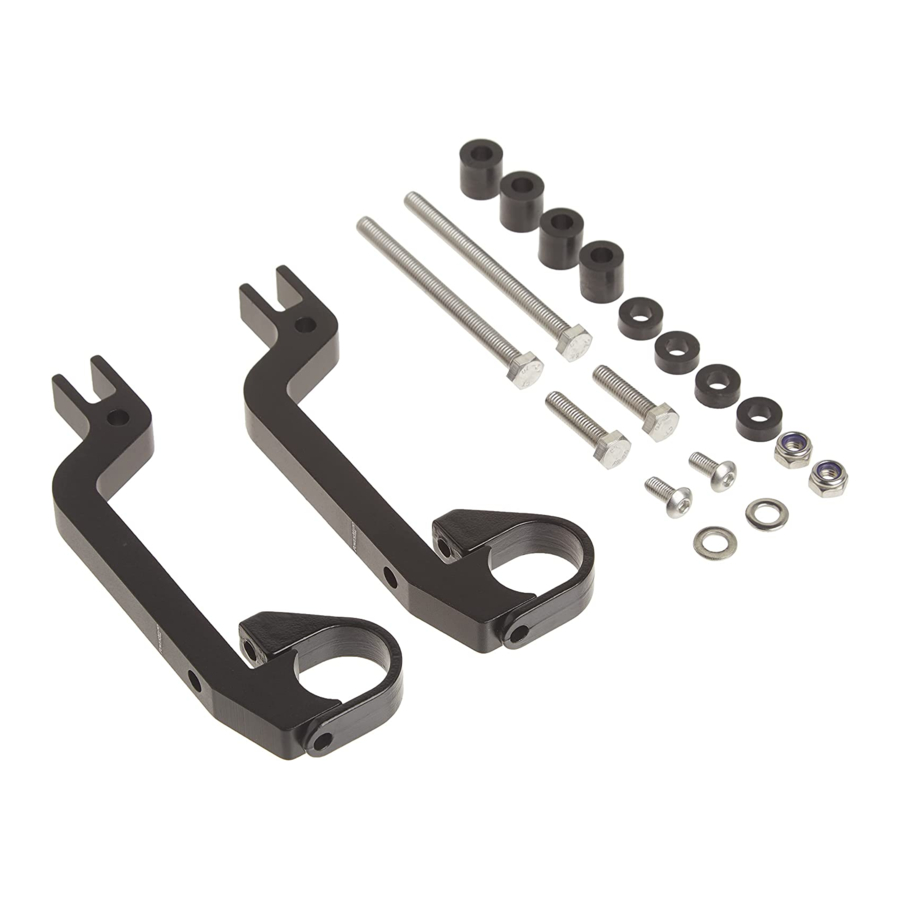

NOTE: Use these instructions along with the instructions provided with the 34452 Sentinel
handguard mount kit.
If installed remove the OEM handguards.

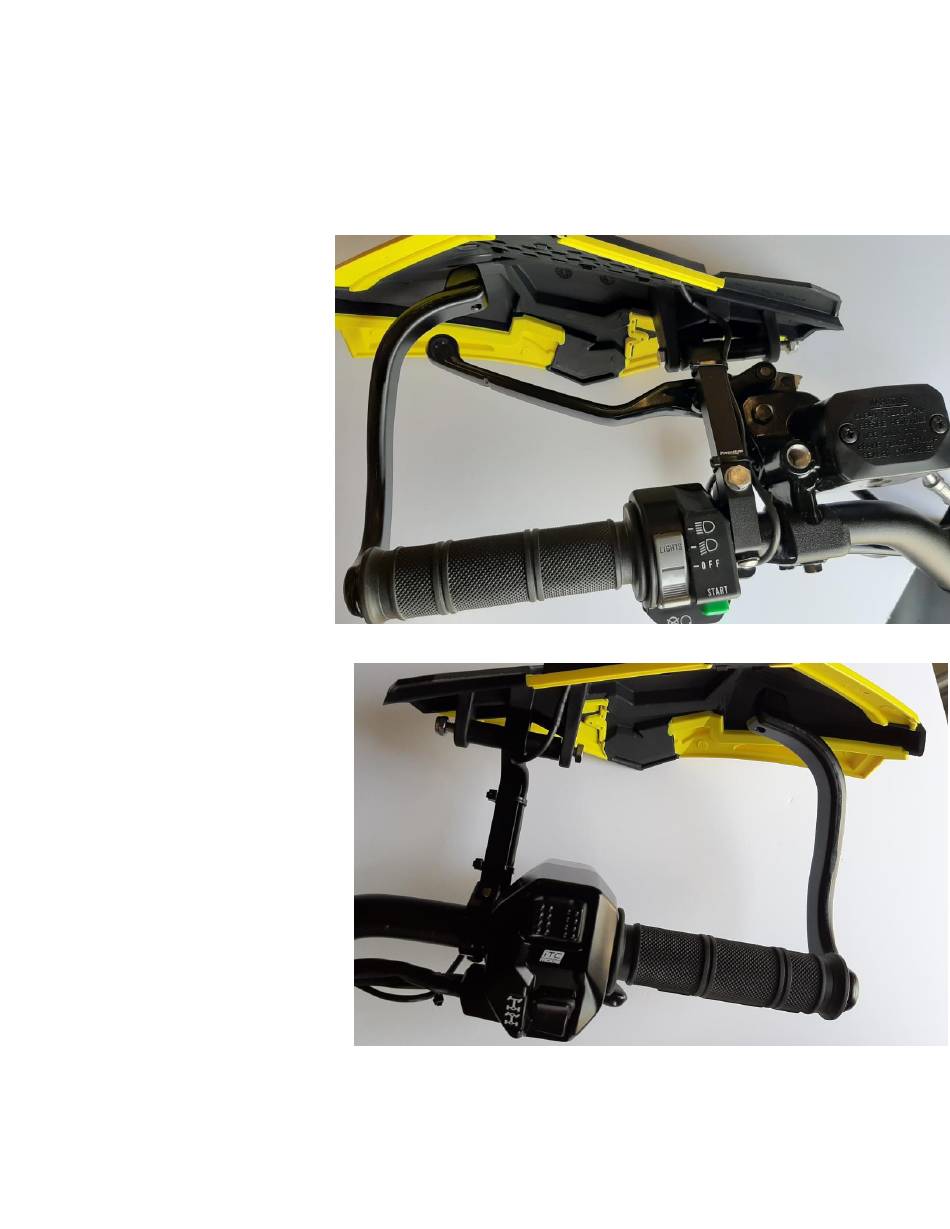

Left Side:
Loosen brake perch assembly
and slide to the right just
enough to make room for the
mounting bracket. Mount
bracket over the top of the
lever as shown in the photo.
Adjust height and width of
the handguard to your
preference using the
instructions provided in the
34452 mount kit. Tighten all
fasteners.
Throttle Side:
Mount bracket just to the left of
the throttle block as shown in
photo. Adjust height and width
of the handguard to your
preference using the instructions
provided in the 34452 mount
kit. Tighten all fasteners.
Advertisement
Table of Contents
Related Manuals for PowerMadd Sentinel 34452
Summary of Contents for PowerMadd Sentinel 34452
- Page 1 PowerMadd Sentinel Handguard Mounting Can Am Outlander NOTE: Use these instructions along with the instructions provided with the 34452 Sentinel handguard mount kit. If installed remove the OEM handguards. Left Side: Loosen brake perch assembly and slide to the right just enough to make room for the mounting bracket.
- Page 2 If installing the PowerMadd Hand Wrap (34253) use the instructions included with the hand wrap for information on how to install. Reference above photos for mounting location. If your ATV came with Can Am’s full wrap hand guards you can use the internal handle...
