DSW DPS28F User Manual

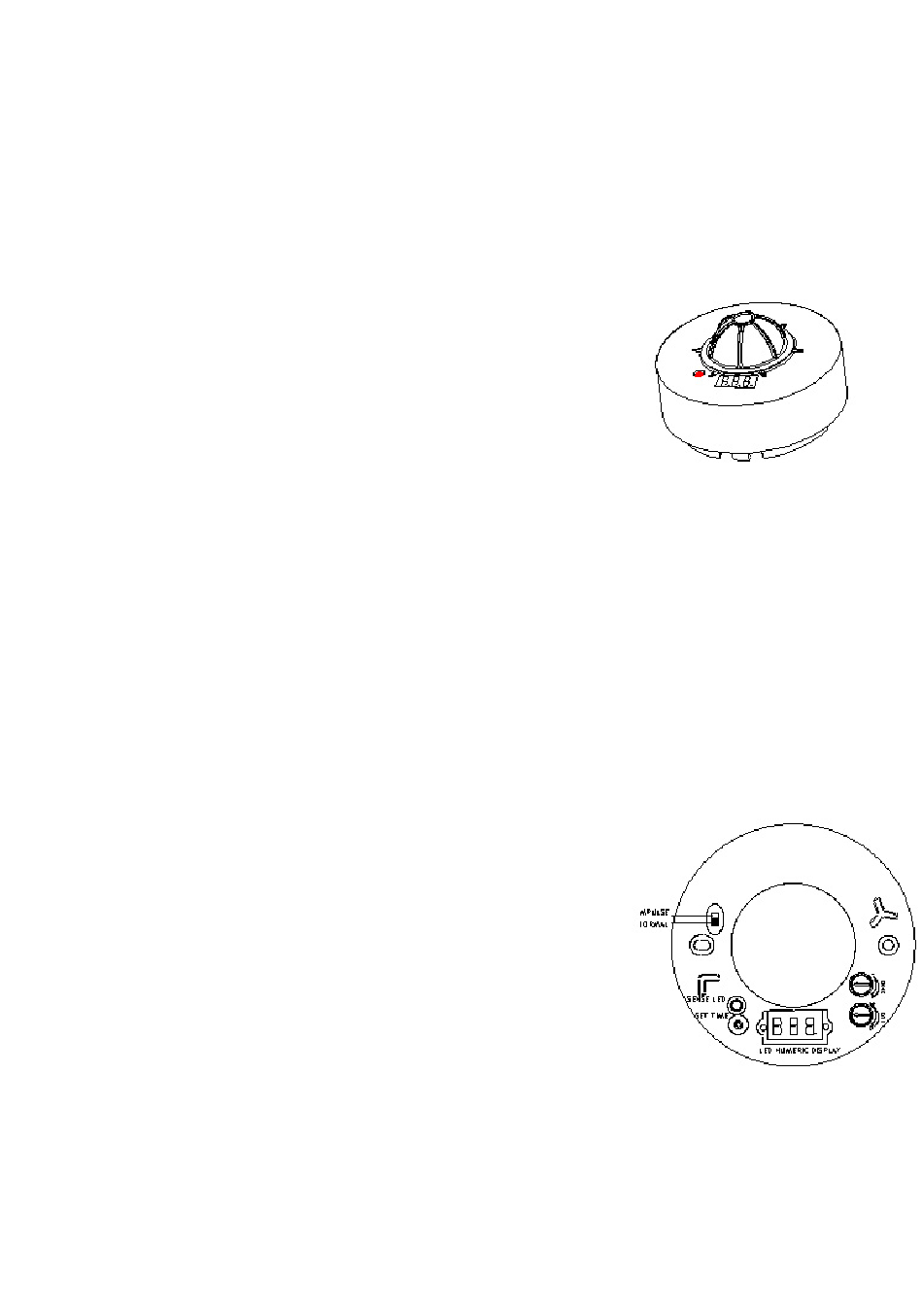

INFRARED MOTION SENSOR DPS28F

SUMMARY

DPS28F has 3 high-sensitivity detectors, it adopts IC, LED numeric display
and SMT technology; the 3 detectors compose wide detecting range; it use
infrared energy form human body as its control source, when one enter its sense
range, it can start controlled load(for example: lamp); after leaving the range, the
load will go out automatically within set time.
DPS28F has remote controller, the controller can remote control the DPS28F
30m away from controller.
We can add new function for you and produce it according to your
requirement. Hope our product will take you convenience.

SPECIFICATION

Power source: 100V/AC~130V/AC
220V/AC~240V/AC
Power frequency：50~60Hz
power source(emitter):DC12V
emit frequency:433MHz
Light control: <3LUX~>1000 LUX (adjustable)
Sense distance:4m~10m(adjustable)
Rated load: 1200W（220V/AC~240V/AC）
800W（100V/AC~130V/AC）
Time delay（normal mode）:0sec~999sec(adjustable), default:8sec
Sense time interval( impulse mode）:0sec~999sec(adjustable), default:
50sec

FUNCTION

1. accurate LED numeric display time-delay function: it can be accurate
to sec, 1sec~999sec for your choice, operation simple and using
convenient;
2. Impulse Mode is another new function, when one enters its sense
range, it will start load to turn on 0.5sec, that give effect of alert signal.
in this mode, the sense time interval is adjustable, default is 50sec，
3. SET TIME button: used to set time, the details is in SET TIME WAY.
4. switch: convert NORMAL mode and IMPULSE mode;
5. SENSE LED;
6. sensitivity(SENS) is adjustable；
USER'S MANUAL
Sense angle:360°
Remote control distance:30m(wide place)
Working temperature：-20℃~40℃
Relative humidity：<93%RH
Install height：1.5m~3.5m
Power consumption：Working 0.45W(static 0.1W)
Sense motion speed：0.6~1.5m/s
