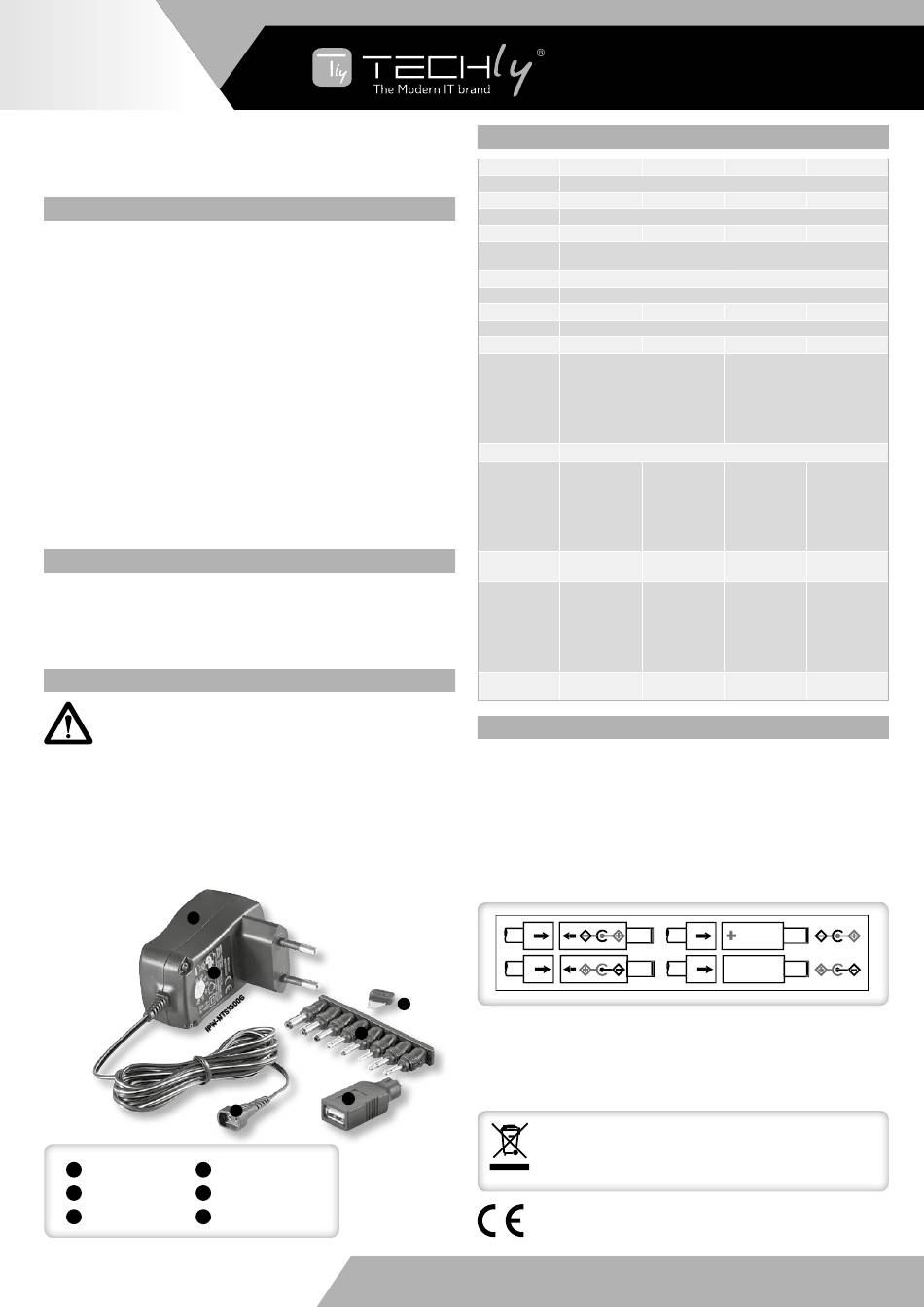

Techly IPW-NTS600G Quick Start Manual

EN
Dear Customer, thanks for choosing a Techly product.
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting, operating
or adjusting this product. Please keep this manual for future reference.

1. Safety InStructIonS

• Your product is not a toy and is not meant for children, because it
contains small parts which can be swallowed and can injure when used
inappropriately! • Please install the system and devices attached to it in a
way that persons cannot be injured, or objects not be damaged for example
by dropping or stumbling. • Please remove the packing materials, because
children may cut themselves on them while playing. Furthermore, there is
a risk of swallowing and inhalation of incidentals and insulating material.
• Avoid places with high temperatures, or humidity, or places which might
come into contact with water. Do not install the product close to openings
of air conditioners, or at places with an excessive amount of dust or smoke.
• Do not install the product at places subject to vibration, or oscillation
• Do not modify and alter the product and any accessories! Do not use
any damaged parts. • Keep enough space around all devices for a good
ventilation and free motion and to avoid damages.• The product has no
power switch and may be used only in easily accessible outlets to quickly
remove it in an emergency and after use. • Voltage-free only when the plug
is pulled. • In case of emergency, during thunderstorms and after use, pull
the product on its plug housing! • Do not open the housing. • Do not let
the product unattended in use. • compare the specifications of product,
power supply and peripherals. these must be identical.

IntenDeD uSe

We do not permit using the device in other ways like described in this user's
manual. Use the product only in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal accidents, injuries, and
damages to persons and property. The manufacturer/supplier assumes no
liability for damages caused by failure to comply with the intended use.

2. DeScrIptIonS anD functIon

cautIon: Material damage due to excessive output
voltage. Set the output voltage according to the device type
label.
This product is a universal and stabilized switching power supply for IT and
office equipment. It has exchangeable adapter plugs for many common
devices. The output voltage is variable.
1
2

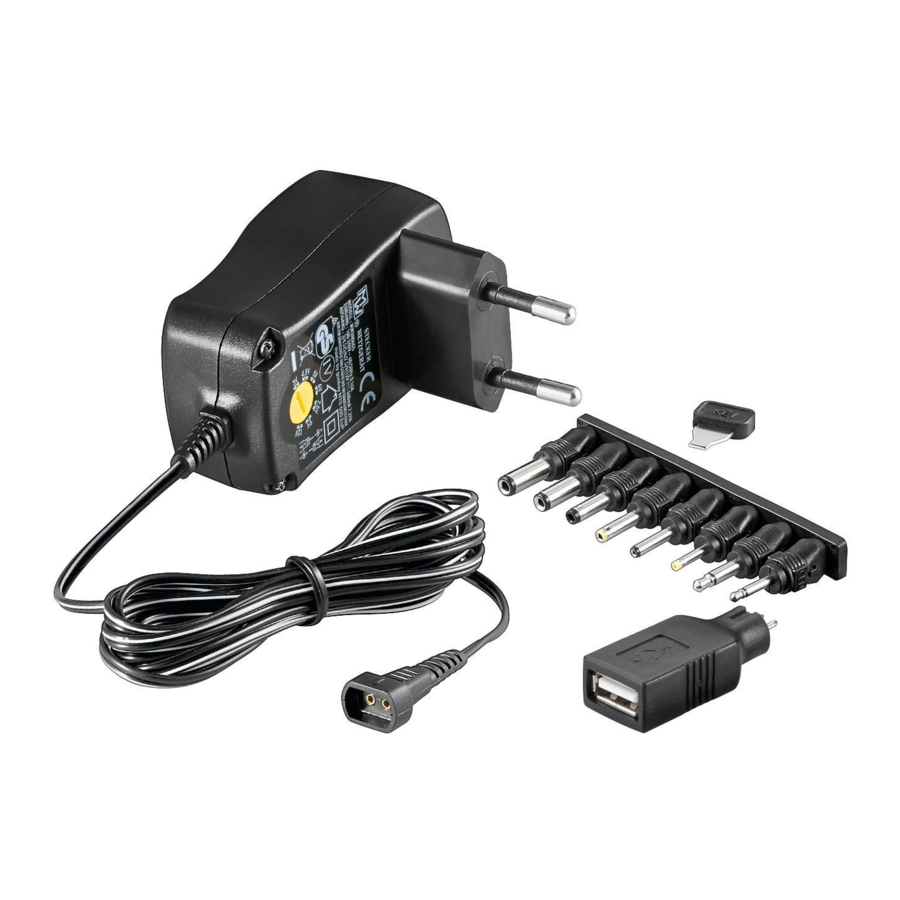

1 Power supply unit 4 Tool
2 Voltage selector 5 DC plug
3 6
DC connection USB adaptor
WWW.TECHLY.COM
4
5
6
3

3. SpecIfIcatIonS

P/N IPW-NTS600G
Input voltage
Input current 0.16A
Output voltage
Max. Output current 0.6A
Stand-by power
consumption
Input
Output DC socket
Dimensions
68.4 x 68.4 x 38.7mm 76.5 x 72.2 x 42.4mm 82.0 x 73.2 x 51.0mm 87.5 x 77.3 x 51.0mm
Cable length
Weight 95 g
3.5 x 1.35 mm
5.0 x 2.1 mm
DC adapter 5.5 x 2.5 mm
5.5 x 1.5 mm
USB 2.0
Jack plug
3.0V (1.8W) /
4.5V (2.7W) /
5.0V (3.0W) /
Power
6.0V (3.6W) /
7.5V (4.5W) /
9.0V (5.4W) /
12.0V (7.2W) Max
No load power
< 0.1W < 0.1W
consumption
Min 65.5% (for 3.0V); Min 69.5% (for 3.0V);
Min 68.8% (for 4.5V); Min 72.8% (for 4.5V);
Min 69.6% (for 5.0V); Min 73.6% (for 5.0V);
Average active
Min 75.6% (for 6.0V); Min 75.0% (for 6.0V);
efficiency
Min 77.0% (for 7.5V); Min 77.0% (for 7.5V);
Min 78.2% (for 9.0V); Min 81.3% (for 9.0V);
Min 80.0% (for 12.0V) Min 83.0% (for 12.0V)
Efficiency at low load
Min 59.0%
(10%)

4. connectIng anD operatIng

1. current: Verify the current requirement of the unit is compatible to
your product.
2. VoLtage: Set the required output voltage at the unit, using the voltage
selector on the bottom of the power switch
3. aDaptor pLug: Select the fitting output plug and connect it in right
polarity
Most of devices work with positive polarity, so with plus pole on the
inner contact. See the following drawing for more information about
polarity setting.
4. connect: Connect the device to the power supply and plug the power
supply into a main socket.
5. IMportant: If the unit does not operate properly, check the polarity
setting immediately!
Remove the unit from mains socket when not in use.
In compliance with EU Directive WEEE this product is marked with this symbol.
It means that used electrical and electronic products should not be mixed with
general household waste. There is a separate collections system for these
products in compliance with WEEE directive, otherwise contaminative and
hazardous substances can pollute the environment.
With the CE sign, Techly
®
European standards and directives. The full text of the EU Declaration of
Conformity is available on the WWW.TECHLY.COM website in the product page.
