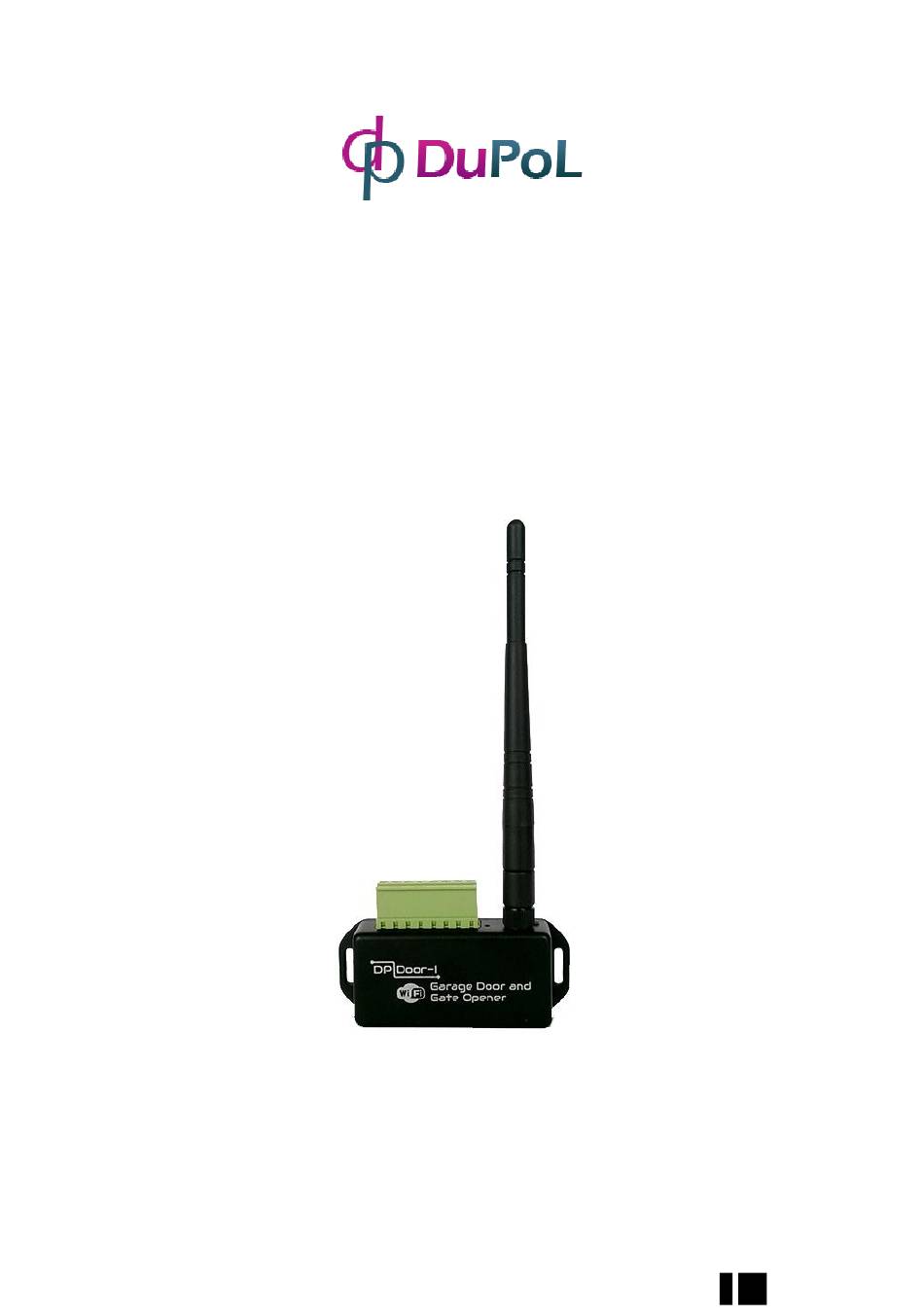

- Page 1 DP Door-I Gate Opener WIFI based remote gate control unit User manual v2.0 DP Door-I Gate Opener 1 EN...
-
Page 2: Table Of Contents
Basic information ............................... 3 Advantages ..............................3 Operating ..............................3 Design and connection diagram ......................... 4 Settings ................................5 Setting the device Wi-fi connection of DP Door-I ..................5 Setting the smartphone application ......................7 3.2.1 Process of opening ..........................9 3.2.2 Process of closing .......................... -
Page 3: Basic Information
If the motor used for gate is not suitable for the DP Door-I Gate Opener input (if it is 230V AC Motor) then the isolated contact input (end contact 2) can be used to check the gate closed status. As a result of opening or closing the gate opener sends information to its users and this way makes the status of the garage door and who has opened or closed the gate visible. -
Page 4: Design And Connection Diagram
2 Design and connection diagram DP Door-I Gate Opener 4 EN... -
Page 5: Settings
3 Settings Settings necessary for operation needs to be done both on DP Door-I Gate Opener unit and on the smartphoone. For the operation continuous internet connecton is necessary so first the name and password of the local WIFI network needs to be set in the device. - Page 6 • After this, press SAVE and the device automatically connects to the network and the green LED will start blinking. (The same steps can be done in the field of WIFI2 as well.) All other settings for the device operation are available in the smartphone application. DP Door-I Gate Opener 6 EN...
-
Page 7: Setting The Smartphone Application
„+” sign on the top of screen. This application can be used to handle more than one device, other devices (different device types as well) can be added within the same application. DP Door-I Gate Opener 7 EN... - Page 8 Modifying the order in the event list of the main screen Monitoring the status of the gate: from the opening motor/engine or limit switch Sending notifications about the given event (push messages) DP Door-I Gate Opener 8 EN...
-
Page 9: Process Of Opening
3.2.1 Process of opening 3.2.2 Process of closing DP Door-I Gate Opener 9 EN... -
Page 10: Advance Settings
4 Advance settings The communication of DP Door-I Gate Opener is IoT cloud base, so it is possible to monitor and check the device via the server: www.puloware.com. The use of the webpage requires registration. After entering the device ID of the device needs to be added to the list so that it can be seen on the server. After entering the below will be seen: DEVICES: On the left coloumn the list of devices added to the account can be seen. -
Page 11: Modification Of The Gate Opener's User's Permissions
The mobile phone of any user(s) can be deleted from the user list and this way the owner of the mobile phone will not have any access. Naturally, at a later time the telephone number can be registered again if it is necessary. DP Door-I Gate Opener 11 EN... -
Page 12: Limitation Of User Information (Push Notification Messages, Event List)
By setting limitation the user will have the only option of control but will not receive any PUSH notification messages, so he/she will not see other users’ activities. The event list is forbidden so that he/she should not see and receive any information about others’ activities. DP Door-I Gate Opener 12 EN... -
Page 13: Creating Command Icons On Android
For restore WIFI SETUP pushbutton needs to be pressed for 30 seconds, the status will signal the process of delete by red/green fast blinking and at last continuous red blinking will show that all connections and settings have been deleted. DP Door-I Gate Opener 13 EN... -
Page 14: Status Signals
5 Status signals Status of the DP Door-I Gate Opener is displayed with LED lights, placed next to antenna, with following options: Continuous RED Setting is faulty or missong Blinking RED Connection to the wifi network is in progress Blinking GREEN...
