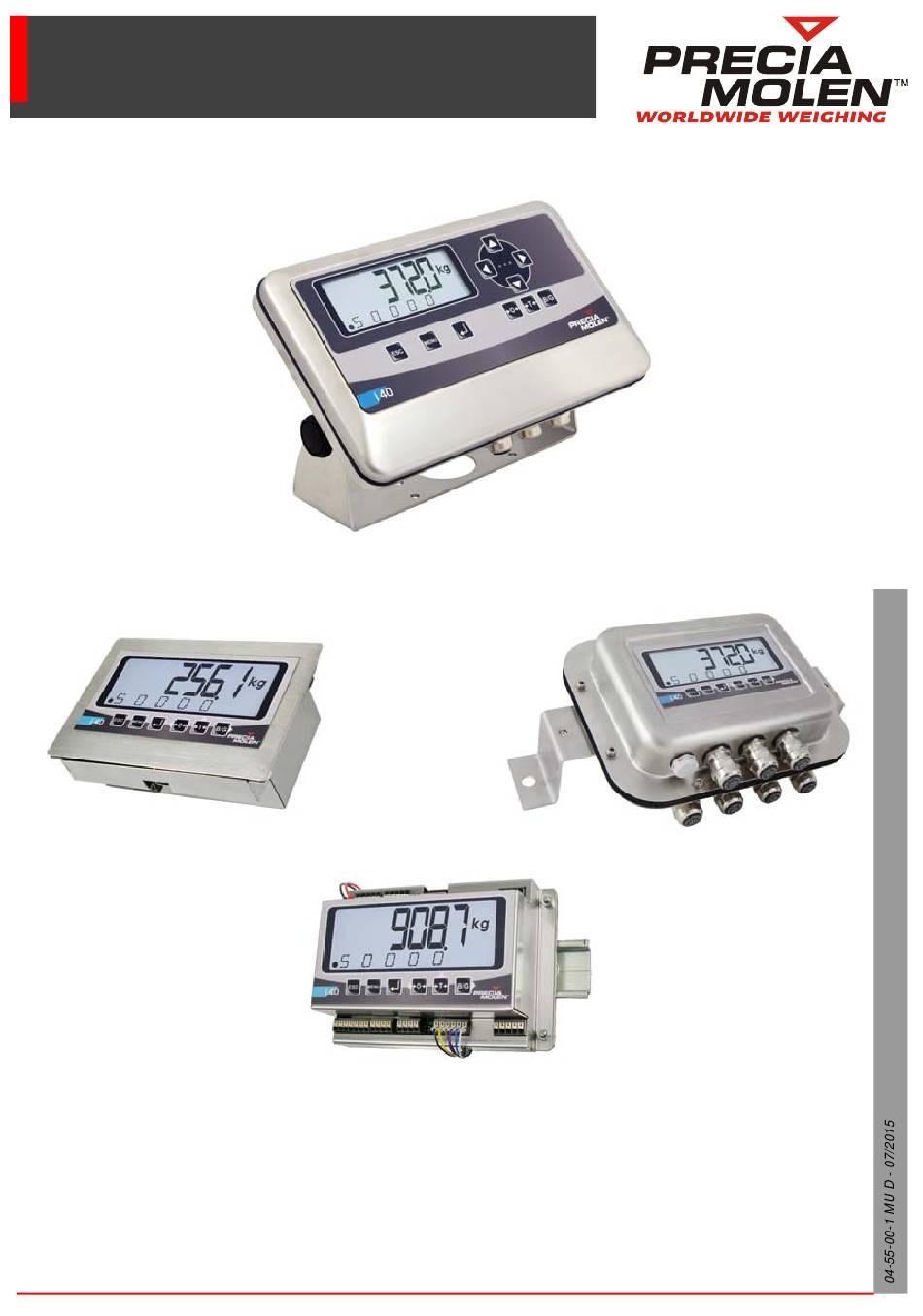

- Page 1 40 Indicator i 40-SS i 40-PM i 40-JB i 40-DR User Manual...
- Page 3 This guide is intended for i40 indicator users. It allows starting the equipment quickly. For electrical connection and installation, refer to the following manuals: • Wiring diagram: 04-50-00 DD. • Installation manual: 04-55-00 MI.
-
Page 4: Table Of Contents
40 Indicator Contents Foreword Documentary conventions ....................Environmental characteristics ..................Safety ..........................Electromagnetic compatibility ..................Overview Keyboard ........................Navigation principle ......................Screen ..........................Help area – Valid key indication detail ................Basic parameters ......................Operator functions Introduction ........................Power on ........................ -
Page 5: Documentary Conventions
Foreword Documentary conventions Pictograms Shown on the device, they indicate a reference to the hereby manual for further information about the nature of potential dangers and all the measures that have to be taken to prevent them. ... -
Page 6: Environmental Characteristics
• Minimum atmospheric pressure ......795 hPa (1) • Protection index - i 40 SS and i 40 JB .......... IP66 (2) EN 60529 compliant - i 40 DR............. IP30 - i 40 PM............. IP54 on front panel • Standard power supply: - voltage ............. -
Page 7: Electromagnetic Compatibility
Electromagnetic compatibility This equipment has been tested and declared compliant with the limits of the class A digital device limits, according to the European regulations, Section 15 of FCC rules (US Federal Communication Commission) and Canadian ICES-003 rules. • These limits aim at offering sufficient protection against interferences when the device is used in a trade environment. -
Page 8: Overview
40 Indicator Overview Keyboard Function Escape a menu or the input without having it taken Escape into account. - In operating mode, provides access to application setting. Menu - Allows entering configuration mode by pressing and holding power. -
Page 9: Navigation Principle
Navigation principle • The navigation keys allow moving in menus and lists of predefined values. They are active when the symbols < > are displayed in zone of the screen (Voir “Screen”, page 8.): Scroll through the options at the same level (or possible values). -
Page 10: Screen
40 Indicator Screen 8888888888 Function Title / Symbol Operating mode Weight area Displaying weight present on the receiver. User area Indications intended for the user. - NET indication if tare taken into account. -
Page 11: Help Area - Valid Key Indication Detail
Help area – Valid key indication detail < > Choice of menu, of value. 0 - 9 Numeric input. 0 - Z Alphanumeric input. 1 - 6 Numeric entry between two specified values (e.g.between 1 and 6). < > Indication of a menu (even if there is only one option). -
Page 12: Operator Functions
40 Indicator Operator functions Introduction The operator functions are available when the indicator is powered on. Power on The instrument performs a self-test. Check the proper display operation (no defective segment). ... -
Page 13: Zeroing
Zeroing When the load receiver is empty and the displayed weight is not zero, the zero function allows to reset to zero the displayed weight (This function is limited to 2% of the maximum instrument range from the initial zero in trade use or to a configuration value outside legal metrology). -
Page 14: Gross Weight Recall
40 Indicator Gross weight recall The result of a net weighing is displayed. 50. 0 KG Press the key . The screen changes colour (cyan) and the result is displayed as gross weight for a few seconds. - Page 15 Weight threshold value 3. 200. 0 KG Weight threshold value 4. 300. 0 KG Tare value. 1. 0 KG Output status. ...
-
Page 16: Dsd Reading
40 Indicator DSD reading Press key and scroll through the various functions with the navigation keys. MAX : Select the function DSD and then validate ( < > DSD. -
Page 17: Operator Setting
Operator setting Introduction Press key to access operator setting. Then use the keys and to access various available functions. Manually entering a tare value (preset tare) This function allows to manually entering a tare value for the net weight display. ... -
Page 18: Threshold Configuration
40 Indicator Threshold configuration Select threshold 1 and then validate (). Set the threshold value and then validate to < > move to the next threshold. THRESHOLD1 ... -
Page 19: Metrological Screen
Metrological screen Select the metrology label and then validate (). < > MET. INFO Press key to view the metrological data. The corresponding information is: • MAX: Equipment maximum range (A). ... -
Page 20: Operator Configuration
40 Indicator Operator configuration Introduction Press key at indicator power on or restart to access the operator configuration. Threshold configuration Select the function THRESHOLD N in the configuration menu. (LOGIN / OPERATEUR / APP / THRESHOLD N). -
Page 21: Threshold Switching
switching Threshold Threshold enabled at "1" state Weight Weight curve Threshold State Threshold enabled at "0" state Weight Weight curve Threshold State 04-55-00-1 MU D... -
Page 22: Saving
40 Indicator Saving When configuration parameters have been changed, the storing can be done in two ways: - going back to the highest level in the configuration menu: < > SAVE The SAVE option screen is displayed for about 1s and then the choice for validating the modified parameters or not is offered. -
Page 23: Error Messages
Error messages Instrument under-load. • Check the load receiver. • Carry out a reset to zero. Instrument overload. • Remove part of the load. Command denied • Example: Taring with an unstable weight ...
