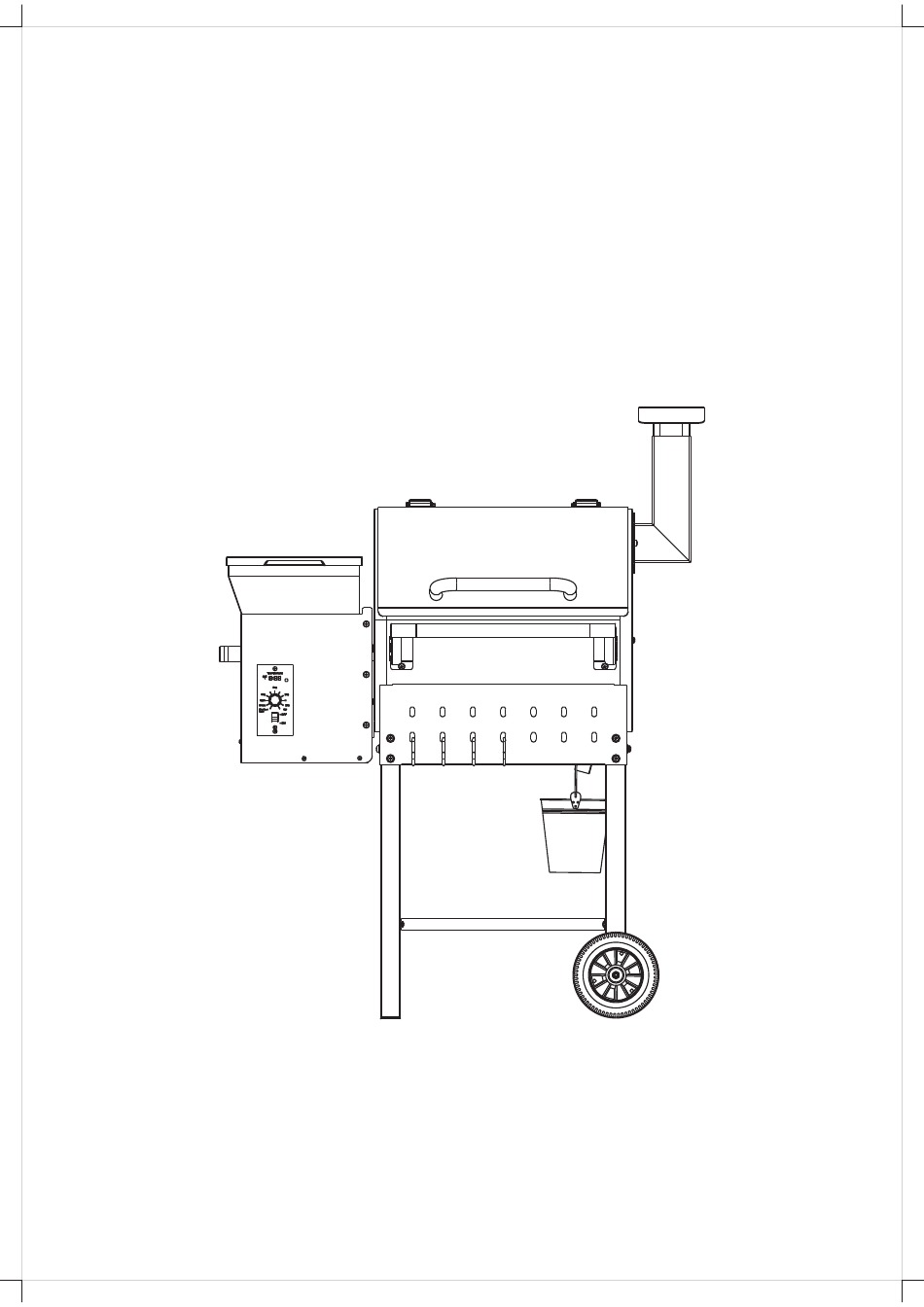

WOOD PELLET GRILLS
OWNER'S MANUAL
MODEL: MS-P01-510A
Please read this entire manual before assembly, installation of your Pellet Grill.
Failure to follow these instructions could result in property damage, bodily injury or even
death. Contact your local building or fire official about restrictions and installation
Inspection requirements in your area.
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-P01-510A and is the answer not in the manual?

Questions and answers

Summary of Contents for Tractor Supply MS-P01-510A

  • Page 1 WOOD PELLET GRILLS OWNER'S MANUAL MODEL: MS-P01-510A Please read this entire manual before assembly, installation of your Pellet Grill. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact your local building or fire official about restrictions and installation Inspection requirements in your area.
  • Page 2 A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEATENCES (AIR SPACES) TO CAOMBUSTIBLES MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. DANGER HAZARDOUS VOLTAGE CAN SHOCK, BURN OR CAUSE DEATH DISCONNECT POWER CORD BEFORE SERVICING DANGER! Hazardous voltage is present which can shock, burn or cause death.
  • Page 3 INTRODUCTION Congratulations on your purchase of this Wood Pellet Grill, Model MS-P01-510A With proper set-up, operation and maintenance the Grill will provide you with delicious food and years of cooking enjoyment. When you un-box the Grill, remove all parts from the box and inside the Grill. Remove any remaining packaging material from inside the Grill as well.
  • Page 4: HardwareTools

    HARDWARETOOLS Descriptino Qty. Image M6×15screws M6 flange nuts M6×16Washer M 8 lock nuts Screwdriver Wrench Pluginmeat probes...
  • Page 5: Section One: Assembly Instructions

    SECTION ONE: ASSEMBLY INSTRUCTIONS ATTACHING LEGS AND FIRE BOX ASSEMBLY 1. Carefully lay the Grill on its back on a non-abrasive surface. 2. Use the Black Bolts(A), Washers(C) supplied in the hardware kit to install the left Leg Assemblies(15\21) on the left end of the Grill and the Wheel Right Leg Assemblies (12\20) on the right end of the Grill, as shown in the upper diagram below,  Then use the Black Bolts(A) and Washers(C) to install left Leg Assemblies.
  • Page 6: Mounting The Wheels

    MOUNTING THE WHEELS 1. Slide the axle(13) through the hole in the right Legs. Then using Nuts(E), secure the Wheels(11) to the right legs. Securely tighten nuts. ATTACHING THE HOOD HANDLE 1. Attach Hood Handle(6) and hood with Bolts(A). Securely tighten Screws.
  • Page 7 POSITIONING THE V-SHAPED GREASE DRAIN PAN SUPPORT 1. Install V-Shaped Grease Drain Pan Support inside the Wood Pellet Grill using Bolts(A) and Flange Nuts(B). Securely tighten. See Figures as below. ATTACHING THE FLUE PIPE AND CHIMNEY CAP ASSEMBLY 1. Align the holes in the Flue Pipe(4) with the holes in the Flue Pipe Gasket(5), which fits between the right end of the Grill and the Flue Pipe(4).
  • Page 8 MOUNTING THE SIDE SHELF 1. Align holes in Right Bracket(7) with holes in Fire box. Remove Bolts(C) and then through the hole accordingly, using Nuts(B) securely tighten(See Fig.Detail A). Repeat this process to securely tighten the Left Bracket(9). Mounting the Brackets and Side Shelf Assemblies(8). (See Fig.
  • Page 9: Positioning The Heat Baffle

    WARNING! Many parts of the Grill will become very hot during operation. Care must be taken to avoid burns, both during operation and afterwards, while the Grill is still hot. It should never be left unattended when young children are present. Never move the Grill when it is operating.
  • Page 10: Hanging The Grease Bucket

    RECOMMENDATION for ease of clean-up: Line the Grease Drain Pan(19) with Heavy duty aluminum foil. Be sure the edges and ends of the foil tight against the bottom of the Grease Drain Pan(19). POSITIONING THE PROCELAIN GRILL: 1. Position the Porcelain Grill (2) on the Grill Supports that tun the length of the cooking area. OSITIONING THE PORCELAIN GRILL 1.
  • Page 11: Carbon Monoxide

    a. DANGER! Turn the Switch OFF (o) and disconnect the Power Cord. Allow the Grill to thoroughly cool if it is still hot. Open the Door and remove all food, the Porcelain Grill, Grease Drain Pan and the Heat Baffle. b.
  • Page 12: Section Two: Initial Firing Instructions

    SECTION TWO: INITIAL FIRING INSTRUCTIONS (To be used on initial firing or anytime the Grill runs out of Pellets) In order to ensure proper operation of the Grill, you must first allow the Auger Tube to be"charged"with Pellets. 1. Open the Door and remove the Porcelain Grill, Grease Drain Pan and Heat Battle from inside the Grill.
  • Page 13: Section Three: Subsequent Start-Up

    SECTION THREE: SUBSEQUENT START-UP With the Door open, turn the Switch ON (--) and the Temperature/Dial to SMOKE. In approximately 2 minutes you will notice whitish-gray smoke coming out of the Grill as the Pellets ignite. After assuring the Pellets have ignited, close the Door and set the Temperature/Dial to any cooking setting desired.
  • Page 14 CAUTION! You will now have a fire in the Firepot. Be careful not to burn yourself when you install these components. Gloves are recommended. 9. Turn the Switch ON (--) and the Temperature/Dial to any setting desired. With the Door closed, let the Grill pre-heat for approximately 10 minutes before placing food in the Grill.
  • Page 15: Section Four: Operating Tips

    SECTION FOUR: OPERATING TIPS 1. The Temperature Dial can be changed at any time to increase or decrease the cooking temperature of the Grill. The HIGH/HIGHER temperature setting are for Grilling. The MEDIUM/MID RANGE temperature setting are for Slow Cooking. The SMOKE setting is for Smoking and adding Smoke Flavor to foods being cooked.
  • Page 16 CONTROL WITH MEAT PROBES Meat Probes setup 1. Insert either one or two meat probes into the plug-in receptacles located on the lower left corner of the controller as shown in Figure 4-1. 2. Insert the probes tips into the meat halfway into the thickest part of the meat. Make sure the probe is not inserted into the fatty portion of the meat and not touching the bone.
  • Page 17: Section Five: Maintaining Your New Grill

    SECTION FIVE: MAINTAINING YOUR NEW GRILL CAUTION! Cleaning and user maintenance shall not be made by children without Supervision. CAUTION! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 1.
  • Page 18 Line your Grease Bucket with aluminum foil for easy clean-up. Empty it occasionally, depending on amount of use. Change the aluminum foil on the Grease Drain Pan frequently (sometimes, after each use, depending upon what was cooked). Clean foil on the Grease Drain Pan will make your food taste better and reduce the risk of a grease fire.
  • Page 19: Disposal Of Ashes

    DISPOSAL OF ASHES WARNING! Ashes should be placed in a metal container with a tight-fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal. When the ashes are disposed of by burial in soil or otherwise locally dispersed, they should be retained in the closed container until all cinders have thoroughly cooled.
  • Page 20 HOW DO I REMOVE THE AUGER IF IT JAMS? 1. DANGER! Turn the Switch OFF(o) and disconnect the Power Cord. 2. CAUTION! If the Grill is still hot, allow it to thoroughly cool. 3. Remove any covers necessary to access the Auger Drive Motor. 4.
  • Page 21 DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM RTD BLACK / WHITE WIRES SENSOR POWER CORD TEMPERATURE RED / WHITE WIRES ºF AUGER DRIVE MOTOR (SMALL FAN BLADE) ORANGE/WHITEWIRES DRAFTINDUCERFAN (LARGEFANBLADE) PURPLE / WHITE WIRES HOT ROD Smoke High Shut Down Cycle TEMPERATURE DIAL PLUG IN MEAT Probe1 PROBES HERE...
  • Page 22 Thankyouforpurchasingthisgrill! Ifyouneedhelp,havemissingordamagedparts,orhaveanyquestionspleaseemailusat customerservice@dongfangjm.com Or,callustollfreeat 866-273-2284 (9:00am-4:00pm,MondaythroughFriday,CentralStandardTime) JIANGMENMINSHENGKITCHENEQUIPMENTCO.,LTD Room101ComprehensiveBuilding,No.23YongningStreet, JianghaiDistrict,Jiangmen,Guangdong,China...
