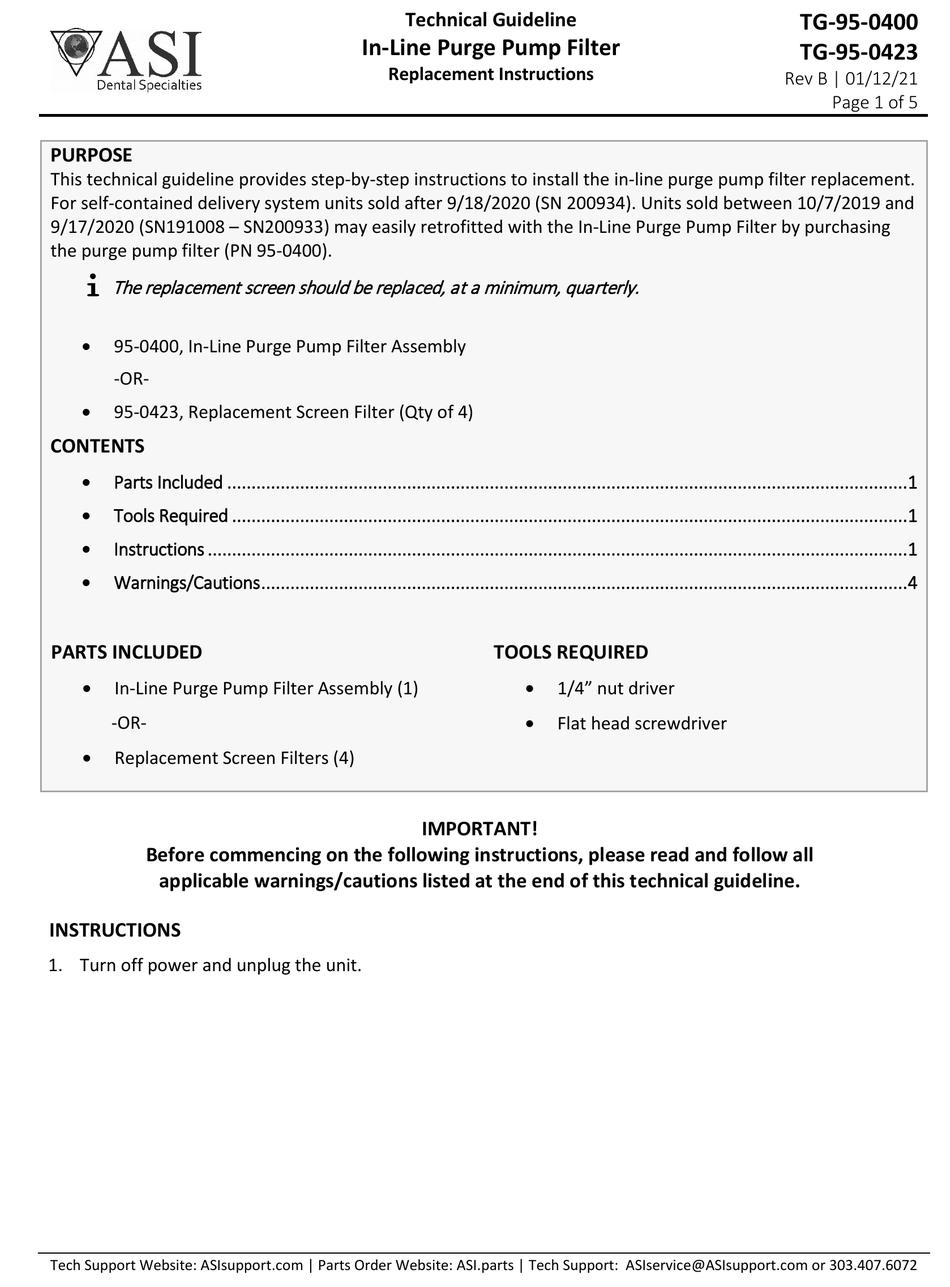

ASI TG-95-0400 Replacement Instructions

PURPOSE
This technical guideline provides step-by-step instructions to install the in-line purge pump filter replacement.
For self-contained delivery system units sold after 9/18/2020 (SN 200934). Units sold between 10/7/2019 and
9/17/2020 (SN191008 – SN200933) may easily retrofitted with the In-Line Purge Pump Filter by purchasing
the purge pump filter (PN 95-0400).

The replacement screen should be replaced, at a minimum, quarterly.
• 95-0400, In-Line Purge Pump Filter Assembly
-OR-
95-0423, Replacement Screen Filter (Qty of 4)
•
CONTENTS
•

Parts Included ............................................................................................................................................ 1

•

Tools Required ........................................................................................................................................... 1

•

Instructions ................................................................................................................................................ 1

•
Warnings/Cautions ..................................................................................................................................... 4
PARTS INCLUDED
• In-Line Purge Pump Filter Assembly (1)
-OR-
• Replacement Screen Filters (4)
Before commencing on the following instructions, please read and follow all
applicable warnings/cautions listed at the end of this technical guideline.
INSTRUCTIONS
1. Turn off power and unplug the unit.
Tech Support Website: ASIsupport.com | Parts Order Website: ASI.parts | Tech Support: ASIservice@ASIsupport.com or 303.407.6072
Technical Guideline
In-Line Purge Pump Filter
Replacement Instructions
TOOLS REQUIRED
•
•
IMPORTANT!
1/4" nut driver
Flat head screwdriver
TG-95-0400
TG-95-0423
Rev B | 01/12/21
Page 1 of 5
