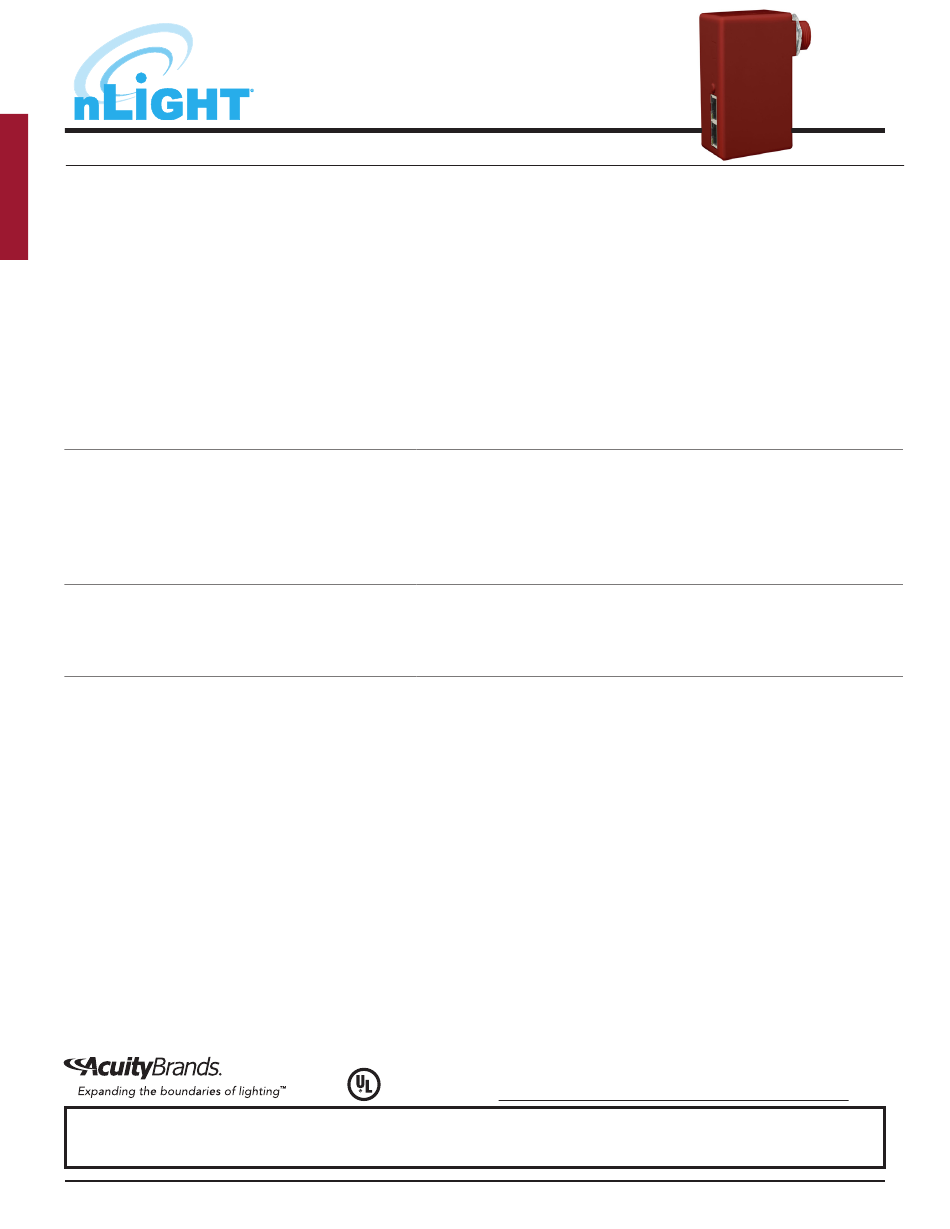

nLight nPP16 ER EFP Installation Instructions Manual

SPECIFICATIONS (NPP16 ER EFP)
Electrical Specifications
Mechanical
Environmental Warrantied Operating Temperature
SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2018 Acuity Brands Lighting, Inc. All rights reserved. Rev.
01/26/2019 IS-NPP16ER-EFP-004
nPP16 ER EFP

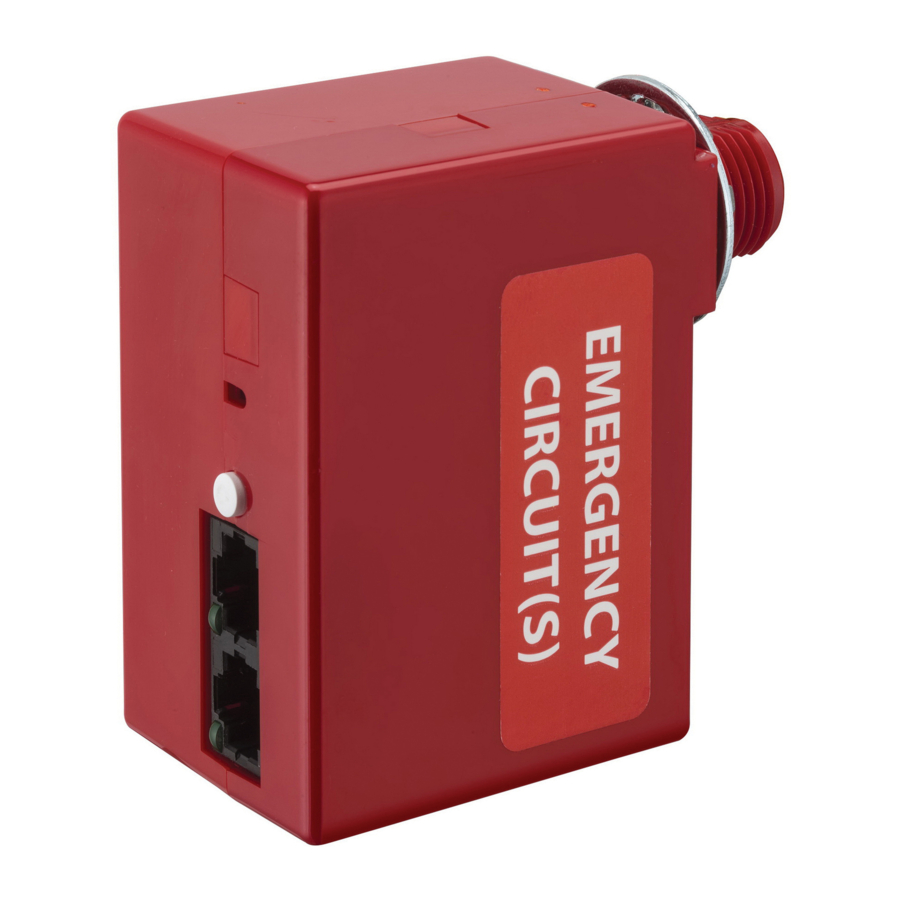

UL-924 EMER. RELAY PACK
FAMILY INSTRUCTIONS
Input Ratings
120/277VAC, 50/60 Hz
120/347VAC, 50/60 Hz (with 347 option)
120-277VAC, 50/60 Hz Normal Power Sense
120-347VAC, 50/60 Hz Normal Power Sense (with 347 option)
Output Ratings 120/277VAC (120/347VAC with 347 option), 50/60 Hz, 16A - Tungsten,
Standard Ballast, Electronic Ballast, General Purpose
120VAC, 50/60 Hz, 1HP - Motor
SCCR: 5KA
100mA, 0-10VDC Dimming Sink Current
Relay Type Latching
Low Voltage Output Ratings Self-powering, does not supply nLight bus voltage
Class Rating 0-10V Dimming can be wired Class 1 or 2
Standards/ Ratings Energy Management Equipment, UL916 (E167435)
Emergency Lighting and Power Equipment, UL924 (E342232)
Dimensions 3.38" H x 2.53" W x 1.83" D (86mm x 64mm x 47mm) - does not include ½" chase nipple
Mounting 1/2" Knockout (7/8" hole)
Color Red
Connection Type
RJ-45 nLight Network Ports (2)
Non-Dimming Model: Line Voltage Leads
Dimming Model: Line and Low Voltage Leads
Standard: 14º to 122º F (-10º to 50º C)
LT Option: -4º to 122º F (-20º to 50º C)
Relative Humidity
Up to 90%, Non-Condensing
Standards/ Ratings RoHS, Plenum UL2043
C US LISTED
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
WARRANTY
5-year limited warranty. Complete warranty terms located at
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
1 of 3
