Summary of Contents for HORN TECALEMIT HORNET W 40

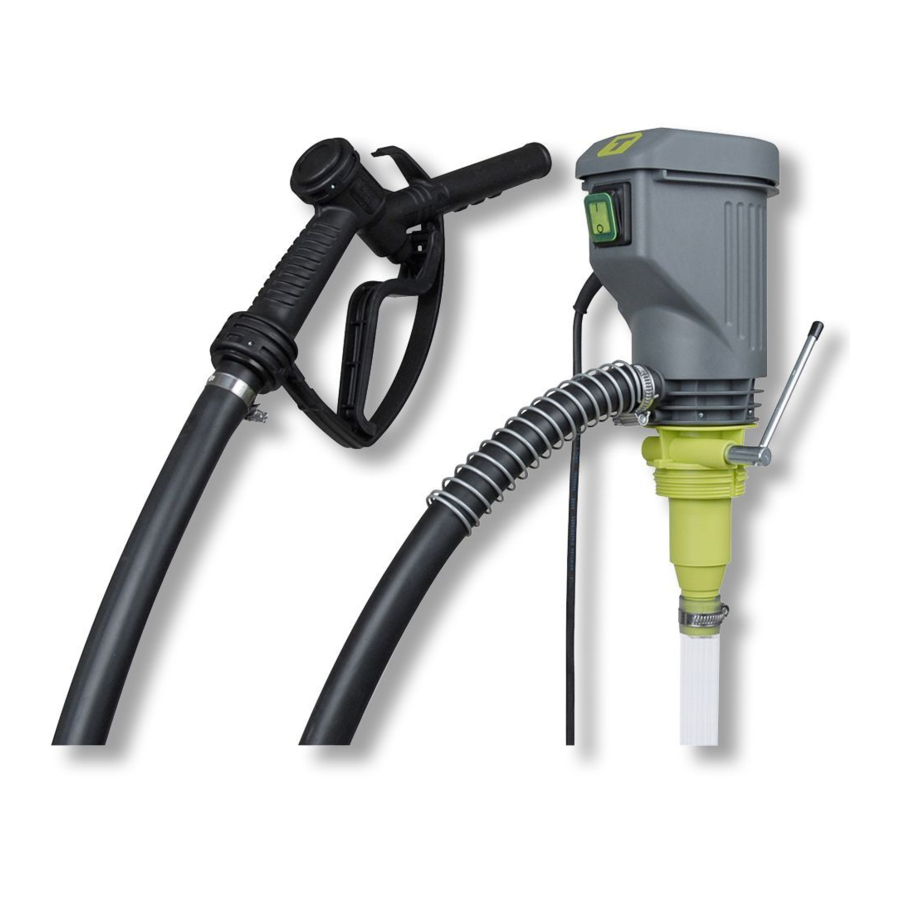

- Page 1 HORNET W 40 A FMT ll HORNET W 40 HORNET W 40 FMT ll Electrically operating drum and container pump for fuel and diesel (minimum flash point ≥ 55°C) www.pclairtechnology.com...
- Page 2 HORNET G 40/24 A 24 V swivel joint Item no. 104 548 700 HORNET W 40 A FMT ll 230 V Item no. 104 558 701 HORNET G 40/12 A FMT ll 12 V • Capacity approx. 35 l/min* (230 V Item no.
- Page 3 Operating manual HORNET W 40, G 40/12, G 40/24 Item-No.: 104 428 700, 104 438 700, 104 448 700, 104 458 701, 104 468 701, 104 478 701, 104 528 700, 104 538 700, 104 548 700, 104 558 701, 104 568 701, 104 578 701...
- Page 4 Important! The operating manual is always to be read before commissioning the equipment. No warranty claim will be granted for faults and damage to the equipment arising from insufficient knowledge of the operating manual. Copyright © HORN GmbH & Co. KG. All rights reserved. Text, graphics and layout copyright protected.
-
Page 5: Table Of Contents
Table of content 1. 1. 1. 1. Safety instructions ........ Safety instructions ................................3 3 3 3 Safety instructions Safety instructions ......................................2. 2. 2. 2. General information ........ General information .............................. - Page 6 Organisational measures This operating manual should always be kept readily available at the site of operation! Each person concerned with the assembly, commissioning, maintenance and operation of the equipment must have read and understood the entire operating manual. It is essential that the type plate and the warning notices attached to the device are observed, and are maintained in a fully readable condition.
-
Page 7: General Information
General information 2.1. Description / Appropriate use – The HORNET electrical pump is an electrically powered delivery pump specifically for use with diesel and heating oil that has a flash point of over 55°C. It can also be used with radiator antifreeze (undiluted concentrate). –... -
Page 8: Product Versions
Automatic nozzles A 2010 104 548 700 HORNET G 40/24 A Automatic nozzles A 2010 104 558 701 HORNET W 40 A FMT ll FMT ll Automatic nozzles A 2010 104 568 701 HORNET G 40/12 A FMT ll FMT ll... -
Page 9: Requirements For The Location Of Installation
Assembly instructions Fit suction filter (1) to suction pipe (2) Model HORNET40 Standard and secure by means of light hose clamp (3). Slip transparent suction hose (4) approx. 30 mm on the suction pipe (2). Cut the delivery hose to required length and slide it on to the suction pipe socket (5) of the priming pump (14). -
Page 10: Operation
Operation 4.1. Commissioning and re-commissioning During commissioning the pump must be filled through repeated pumping action with the hand lever (15) at the suction stage (14). After prolonged periods of non-use the integrated siphon protection may cause the liquid column to drop, so that the pump may have to be primed again. -
Page 11: Automatic Nozzle 2010 (Option)
4.4. Automatic nozzle 2010 (option) – The nozzle A 2010 comes with a general building authority test certificate (P-TÜ7-01340). The test certificate is available on request. – An automatic disconnection follows when the tank is full, the nozzle is held in vertical position or when the nozzle (13) falls to the ground with a fixed nozzle lever. -
Page 12: Declaration Of Conformity
Declaration of conformity 44 1268 102-C HORNET 40... - Page 13 44 1268 102-C HORNET 40...
- Page 14 HORN GmbH & Co. KG Munketoft 42 24937 Flensburg Germany T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de 44 1268 102-C HORNET 40...
