Summary of Contents for Leader AEROS 2

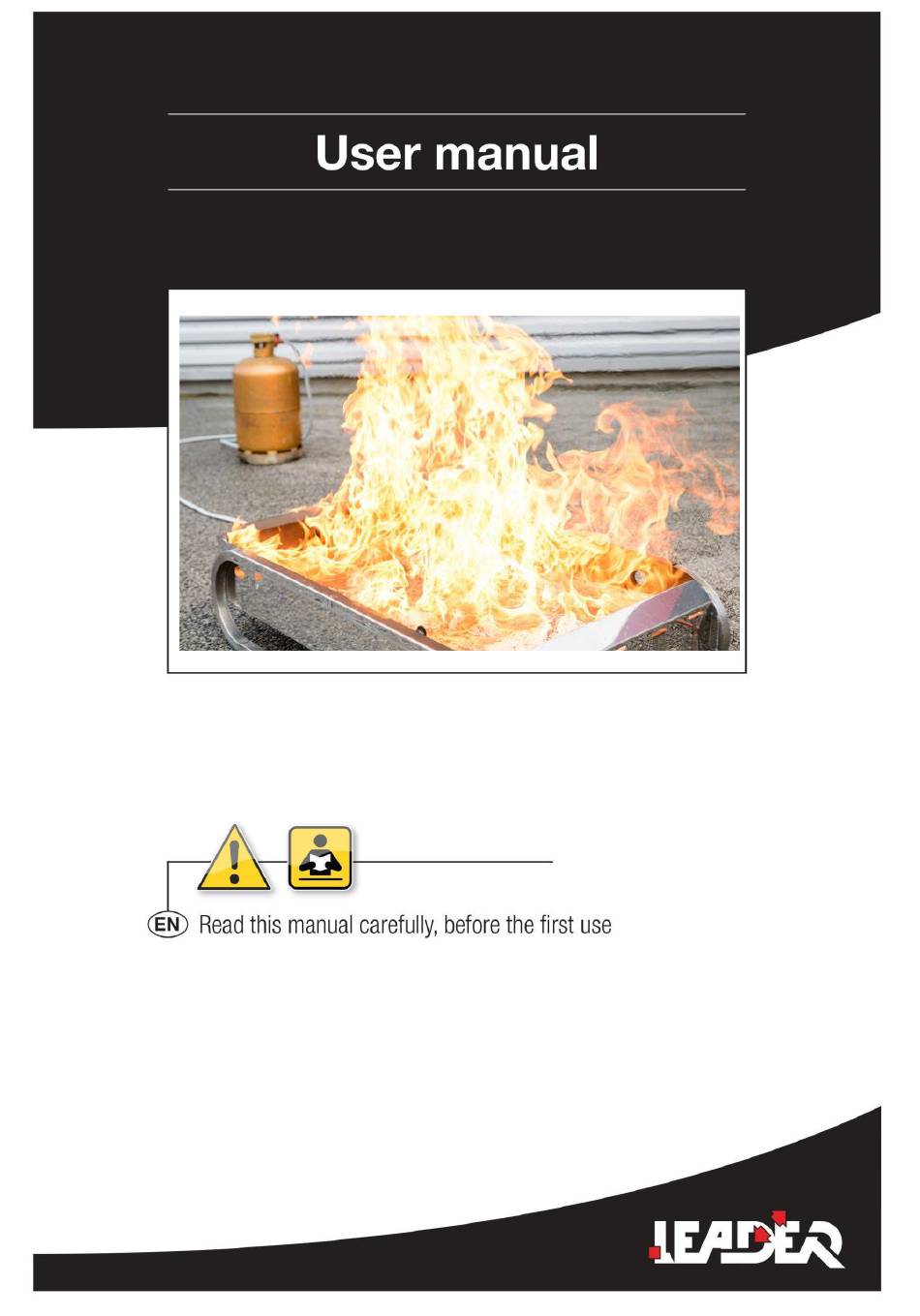

- Page 1 AEROS 2...
- Page 2 Product reference : V90.00.036 AEROS2...
-
Page 3: Table Of Contents
2. SAFETY INSTRUCTIONS 3. GENERAL SPECIFICATIONS 4. OPTIONS 6. MAINTENANCE OPERATIONS 7. SPARE PARTS LIST 8. MALFUNCTIONS 9. WARRANTY... -
Page 4: Safety Instructions

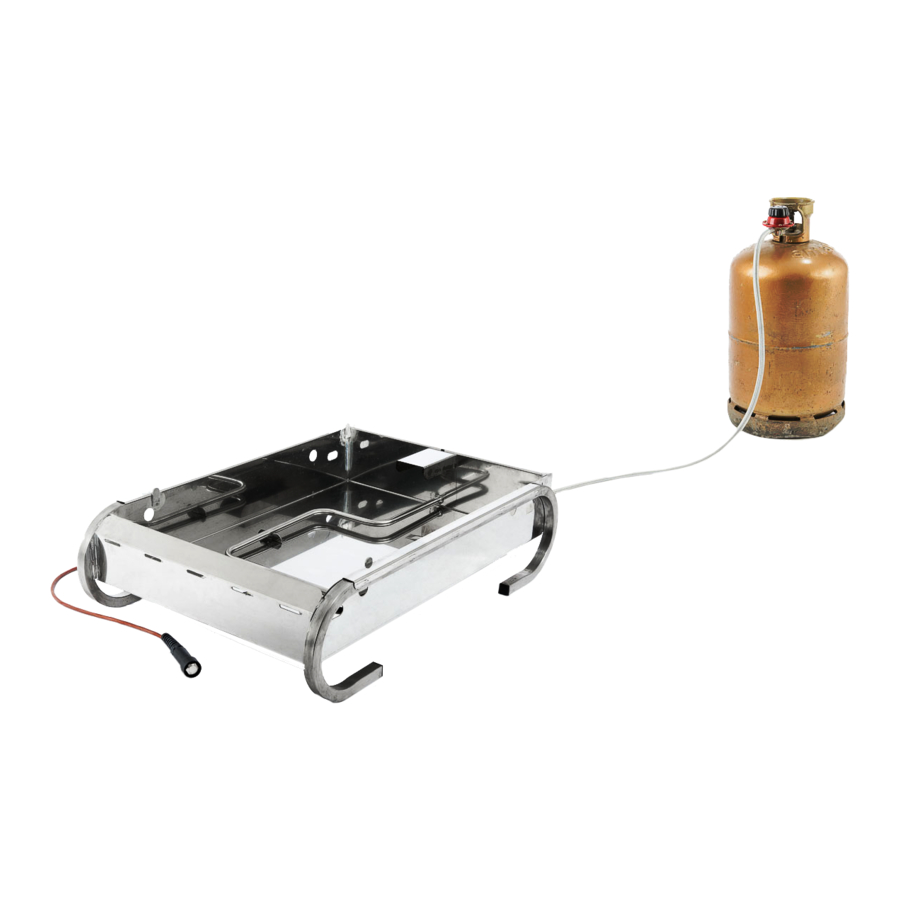

1. INTRODUCTION The AEROS2 is a fire trainer with water tray. It allows training in the use of different extinguishing materials (all fire extinguishers, nozzles, portable foam units, etc ...) safely and with respect for the environment. Thanks to its wired remote control, The AEROS2 allows the trainer to manage the fire (switching on and off) to accompany trainees safely during training interventions. -
Page 5: General Specifications
Remember that it is forbidden to store cylinders of Propane gas indoors. They must be kept outdoors. Training apparatus using explosive fuel are for use by trained staff only. LEADER accepts no responsibility in the event of accidents or damage involving people or property. - Page 6 o Floating battery charger Power supply: 220 V Frequency 50 Hz. Recharge time : 24 hours (for a completely flat battery) check the led. For more information, see manufacturers notice (enclosed). o GAZ Supply Bottle: 13kg heavy duty Propane gas cylinder, without flowrate limiter.
-
Page 7: Options
4. OPTIONS To position the Accessory Adapter: Gas supply pipe kit for all flames generators In order to use 2 Propane gas cylinders Ref: V90.80.053... - Page 8 5. COMMISSIONING INSTRUCTIONS Use indoors can cause an accumulation of gas resulting in an explosion! Before use: Recharge the battery for at least 12 hours. Place the fire generator tank on a flat surface to make sure the water level is even in all areas.
- Page 9 Once the tray is full of water, place the gas bottle far from the flame generator tank; use the full length of the pipe and avoid bends. Manually screw the pressure regulation valve onto the bottle. Connect the gas supply lyre to the flame generator tank either by screwing on the lyre fitting manually, or by connecting the quick coupler (optional)
- Page 10 Do not try to start the Aeros with the pressure regulator in position 0 or 3. Do not smoke during these operations We recommend the use of work site type 13 kg or 35 kg propane gas bottles from Antargaz.
-
Page 11: Maintenance Operations
6. MAINTENANCE OPERATIONS o Propane bottle Close the gas bottle and place the pressure regulation valve in position 0, purge the gas circuit by pressing the button on the remote control. Warning, this operation ignites the fire in the tank, which will then quickly go out. ... -
Page 12: Spare Parts List
7. SPARE PARTS LIST Spare parts supplied „WITHOUT“ Maintenance Level: maintenance formation. Picture Réf Désignation SPARK PLUG 2001238 2001707 REMOTE CONTROL UNIT 2001071 BATTERY 2001132 ELECTRO VALVE 2001070 HIGH VOLTAGE UNIT 2001054 BLACK BATTERY CHARGER 2001407 FUSE HOLDER 2001408 FUSE 2001067 AEROS LABEL... - Page 13 Spare parts supplied „WITH“ Maintenance Level: maintenance formation. Picture Réf Désignation 2001072 FEMALE CONNECTOR 2001073 MALE CONNECTOR FEMALE COUPLING Ø 8 2001708 2001247 BODY OF REMOTE CONTROL 2001250 PE SKINTOP 2001249 ANTIVANDAL BUTTON...
-
Page 14: Malfunctions
8. MALFUNCTIONS Symptoms Possible cause Solutions The flames are Is the gas bottle sufficiently not high enough. full? Replace the bottle. Is the flow regulation knob on Tighten the flow regulation knob. the pressure regulator sufficiently tightened? The gas bottle is frosted Change the gas bottle (too intense use). -
Page 15: Warranty
This warranty is specifically limited to replacing or repairing the equipment (or its parts) which proves defective after examination for reasons attributable to LEADER. To initiate this warranty, with the agreement of LEADER the claimant must return the equipment in the shortest possible time after discovery of the defect to the following address:... - Page 16 Code Notice: AEROS2.00.ZN4.43.EN.0...
