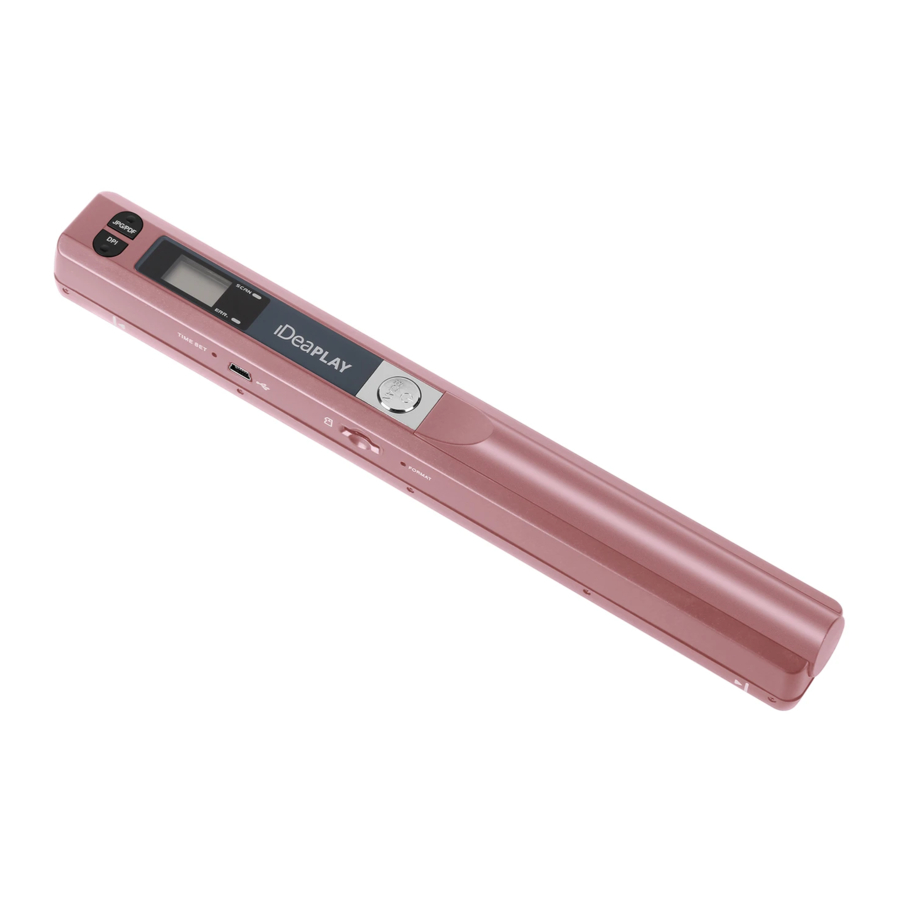

Portable scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WS100
PORTABLE SCANNER
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for iDeaPLAY WS100

  • Page 1 WS100 PORTABLE SCANNER User Manual...

  • Page 2: Product Features

    Thank you for purchasing the iDeaPlay WS100 Handheld Portable Scanner Wand. Please read this user manual carefully before using the product. 1. Product Features · Scanning resolutions: 300/600/900 DPI. · Directly save JPG or PDF file to microSD card. · Supports Micro SD card up to 16GB.

  • Page 3: Product Overview

    3. Product Overview Component Function 1. Time Set Press this button to enter time set mode 2. USB Port Port USB 2.0 high Speed 3. SD Card MicroSD Card storage 4. Format Button Press this button to format Micro SD card 5.

  • Page 4: Lcd Screen

    4. LCD Screen Function Description SD Card instructions Photos will be stored in Micro SD card Power adequate Battery indicator Battery low JPG/PDF Mode JPG/PDF Display the file number on Micro SD card Count index Resolution choice High :900DPI/Mi:600DPI/Low:300DPI 5. How To Use This Scanner 5.1 Insert Batteries 1.
  • Page 5 1×× Setting year 2×× Setting month 3×× Setting the date 4×× Setting hours 5×× Setting minutes 5. After all the settings are correct press the TIME SET to exit 5.4 Format The Micro SD Card 1. Insert a Micro SD card into the scanner and turn on the scanner. 2.

  • Page 6: Led Indicators

    6. LED Indicators “Green" LED on--- Scanning. “Green" LED off--- Finish scanning. “Red" LED on--- Scanning too quickly. Restart/scanning again 7. OCR Software The handheld scanner comes with Optical Character Recognition (OCR) software. The OCR software makes it possible to recognize text in scanned documents and images.

  • Page 7: Specifications

    8. Specifications Product Size (LxWxH) 257mmX30mmX24.5mm Product Weight(g) 150g (without batteries) Function Portable Scanner Image Sensor A4 Color Contact Image Sensor Number of Sensor Elements 5136 dots (1st~5104 dots available) Scanner Photo Size Scanning Speed High resolution with color ≥10S (A4 size) Medium resolution with color ≥8S Low resolution with color ≥3S...

  • Page 8: Troubleshooting

    9. Minimum Requirement of PC System Operation System Windows XP/Vista, 7 MAC10.4 or above Pentium Ⅲ or above At least 256MB Interface USB port CD ROM 4x speed CD ROM or above 10. Troubleshooting Problem Cause Solution Cannot turn on 1.

  • Page 9: Customer Support

    11. Customer Support For any support or comments concerning our products, please send an email to: Support@ideausa.com Toll-Free NO: 1-866-886-6878 Address: 13620 Benson Ave. Suite B, Chino, CA 91710 Website: www.ideausa.com 12. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
