Remax – User manual
The Remax BLE universal relay can operate your 230V loads.
To configure the relay, it is necessary to have an external
pushbutton connected.
The module must have its own power supply (Phase, Neutral)
It can be used with the pushbutton and/or the Dmax app.
The relay can be mainly used with the following modes: follower,
trip switch or monostable.
Wiring and configuration of the relay
These steps must be carefully followed:

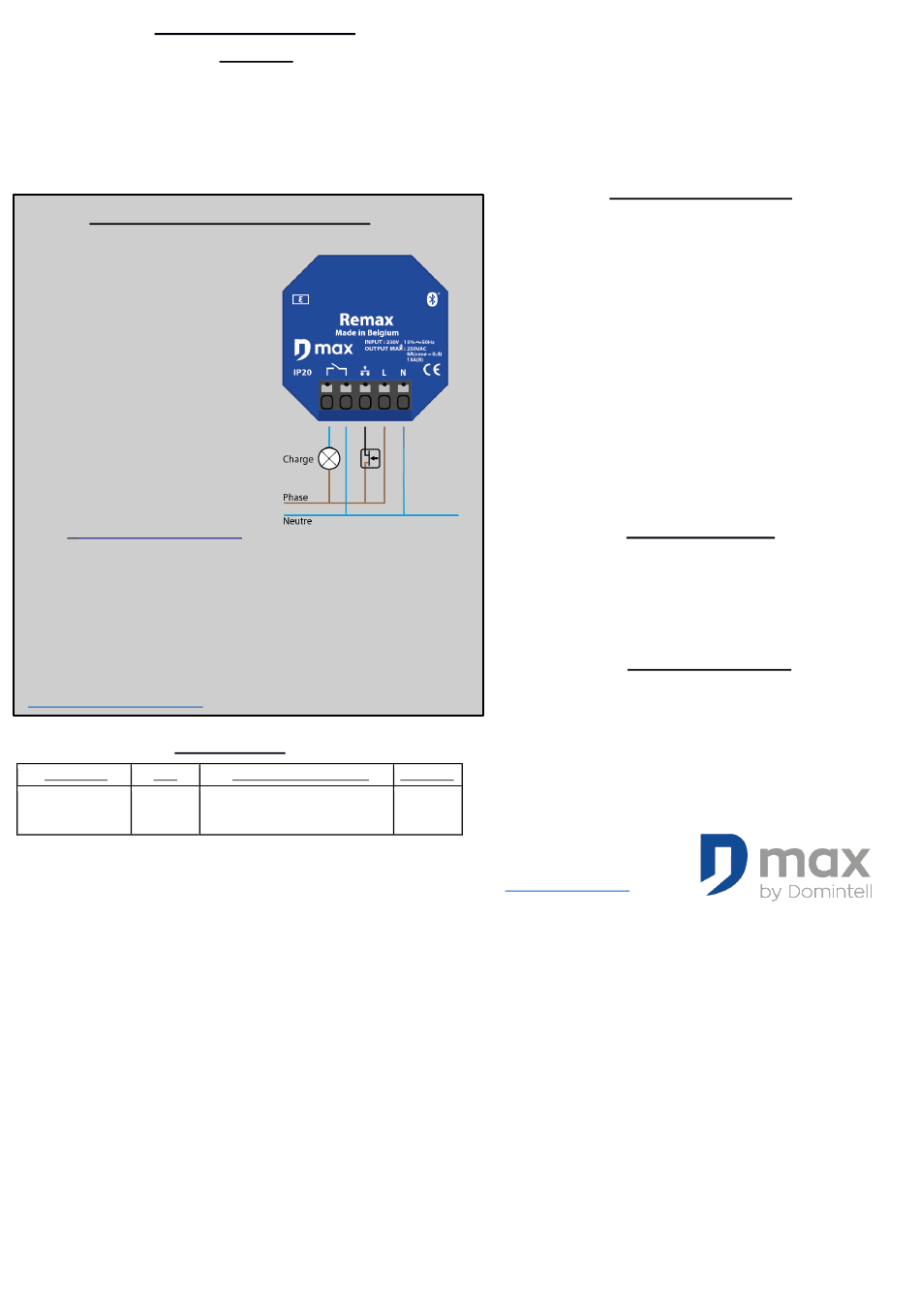

Plug the relay according to the
1.
hereby enclosed diagram (cut off
the 230V with the circuit breaker
first). The wiring is done via the
screw terminal.
The different modes of the relay
2.
can be selected with the Dmax
application available for free on
Google Play or the Apple App
Store. After reconnecting the
230V, do a scan and follow the
authentication procedure to add
the corresponding Remax. Go to
settings to edit the operating
modes. For further details about
the app, see the user instructions
at www.dmaxbydomintell.com.
Connect the output and validate it commutes correctly (the
3.
ex-factory setting of the relay allows commuting the output via
a short push and maintaining the state via a long push).
•
The relay does not commute correctly (irregularly or not
at all)? Carefully read the tutorial available on the website.
Now adjust the relay performance from the Dmax by Domintell
4.
app.
In case you have a question, see the detailed version at
www.dmaxbydomintell.com
Technical data
Item number Type
5425014390285 BLE Relay
EN_20190709
Foreword
or contact your supplier.
Contact maximum intensity
230 Vac 13 A (R)
230 Vac 8 A (cos φ = 0,4)
30 Vdc 10 A
•
Nominal conditions: 230V AC +/- 15%, 50 Hz, Ambient
temperature: -10°C to 40°C.
•
Maximum wiring section per contact = 2,5 mm².
•
Maximum
dynamometric screwdriver).
•
1 self-resettable protection: against overcurrent and
temporary overheating
•
IP20 protection level
•
Without halogen, RoHS.
•
Storage conditions: Temperature: -25°C / +70°C, Relative
humidity: < 75%.
•
For a safe installation, the device can only be mounted
by a qualified electrician.
•
The device must not be opened in any case (cancels
warranty).
•
The device can only be installed inside, in a dry place,
compatible with IP20 devices.
•
During the mouting and unmounting of the device, cut off
the 230V circuit-breaker.
•
The screws of the connectors of the device are
unscrewed at delivery and must be properly screwed
before use.
•
After installation, the screws of the connector must be
protected so that could not be accessible for the final
user.
For a LONG PUSH (>0,4s) on the button: the relay turns on
and keeps its output ON as long as the button is pressed.
The relay turns off when the button is released.
For a SHORT PUSH (<0,4s) on the button: the relay
commutes its output state, if it was off, it turns on and vice-
versa.
The Remax complies with the following directives and standards:
Directives
EMC-directive: 2014/30/UE
LV-directive: 2014/35/UE
Dimension
Norm
EN 60669-2-1: 2004 + A1: 2009 +A12: 2010
48 x 46 x 18
Remax
Is manufactured in Belgium by:
Domintell S.A.
dmaxbydomintell.com
tightening torque: 0,4
Safety and environment
Pushbutton control
Directives and norms
N.m (use a
