Domintell D Max Stripmax RGBW User Manual

Stripmax RGBW – User manual
Foreword
•

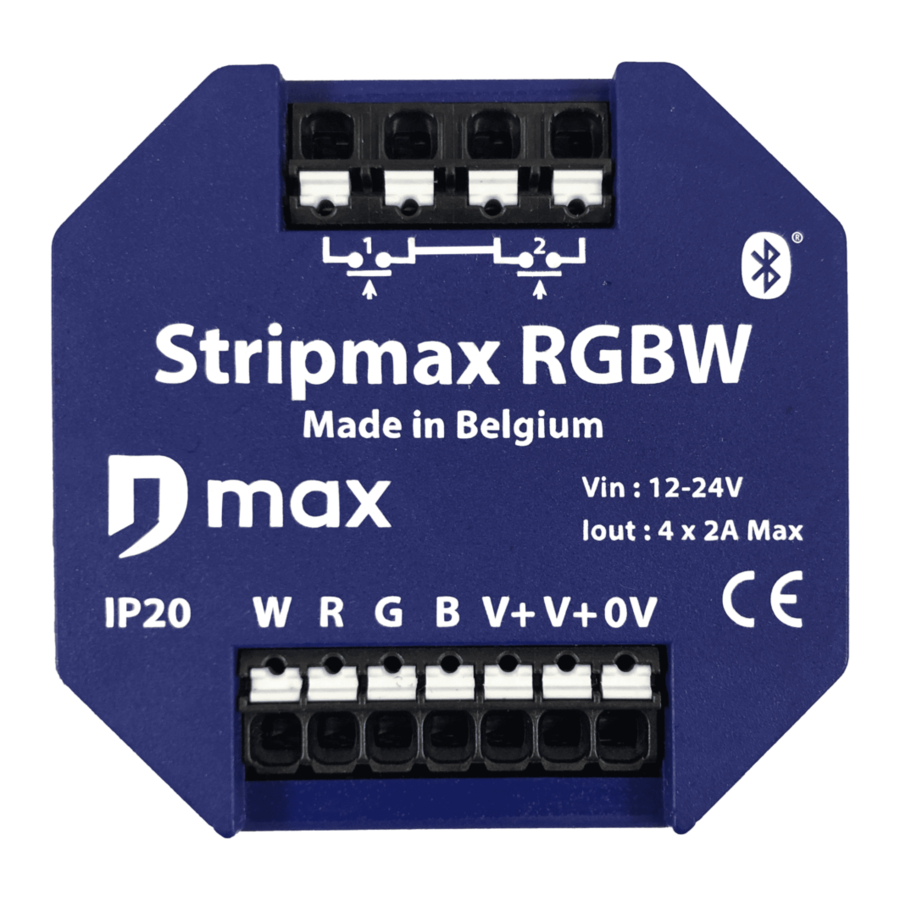

The Stripmax RGBW controller can control all types of up to 4
channels 12 to 24 V LED strip lightings.
•
For an optimal operation, only connect a single type of LED strip to the
controller.
•
Only in order to configure the Stripmax RGBW, an external connected
push-button is required.
•
The Stripmax is supplied by the 12 to 24 V power of the LED strip.
•
The maximum current delivered by the Stripmax RGBW can reach up
to 2 A per channel.
Wiring and configuration of the Stripmax RGBW
In order to get a good dimming, these steps must be carefully followed:

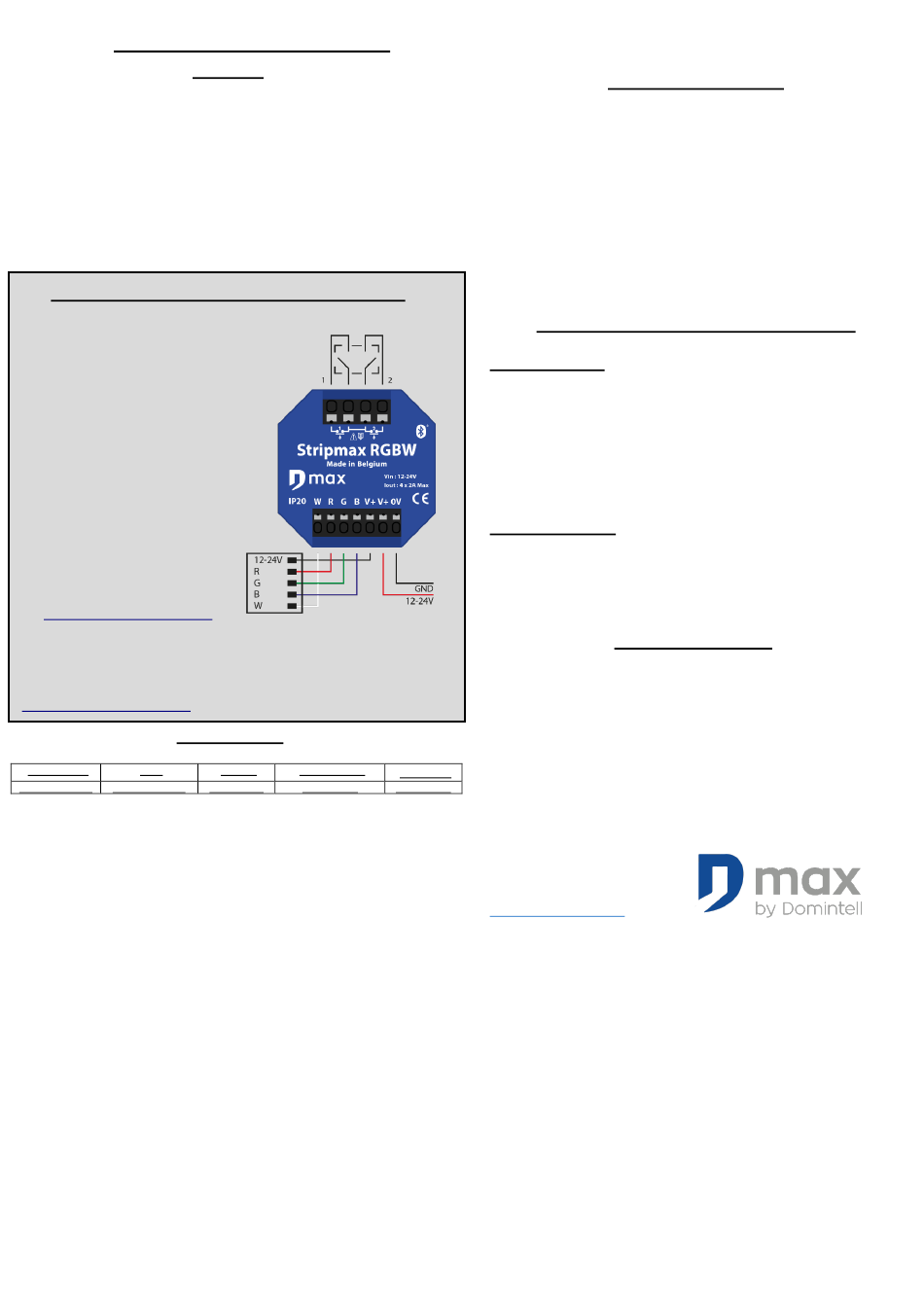

Plug the Stripmax RGBW
1.
according to the hereby
enclosed diagram (cut off the
power supply first).
The different control modes
2.
can be selected with the Dmax
application available for free
on Google Play or Apple App
Store. After reconnecting the
12 – 24 Vdc, do a scan and
then follow the authentication
process in order to add the
corresponding Stripmax
RGBW. Go to settings and
then to control settings. For
further details about the app,
see the user guide
www.dmaxbydomintell.com
Connect the LED strip. If a push-button is used, the button #1 (left)
3.
is set to control the 3 RGB channels and the button #2 (right) is set
to control the W channel.
In case you have
www.dmaxbydomintell.com
Technical data
Item number Type
5425014390247 Stripmax RBBW
• Nominal conditions: 12 – 24 Vdc from -10°C to 40°C.
• Maximum wiring section per contact = 1.5 mm².
• Self-resettable protection against temporary overheating.
• An exceeding of the maximum output current (2 A per channel)
can cause product dysfunctions, or even irreversible damage.
• IP20 protection level.
at
a question, see the
or contact your supplier.
Voltage Output power
12 – 24 Vdc max. 4 x 2 A
EN_20190709
• Without halogen, RoHS.
• Storage conditions: Temperature: -25°C / +70°C, Relative
humidity: < 75%.
• For a safe installation, the device can only be installed by a
qualified electrician.
• The device must not be opened in any case (cancels warranty).
• The device may under no circumstances be connected directly on
230 V. Use a 12 to 24 Vdc transformer.
• The device can only be installed inside, in a dry area, compatible
with IP20 norms.
• During the mounting and unmounting of the device, cut off its
power supply.
Control with a push-button (default setting)
Button #1 (left):
LONG PUSH (> 0.4 s) on the button: the RGB channels turn ON (if
they were turned OFF) and the combination of the three changes.
When the button is released, the Stripmax stops on the color and
keeps it.
SHORT PUSH (< 0.4 s) on the button: the color cycle starts. The
duration of a cycle is determined in the app settings.
Button #2 (right):
LONG PUSH (> 0.4 s) on the button: the W channel turns ON (if it
was turned OFF) and the dimming rate goes up/down slowly
between the min. and the max. levels (100% = total conduction);
the last level is kept by releasing the button.
The Stripmax RGBW complies with the following directives and
standards:
FAQ at
Directives
RED-directive : 2014/53/UE
EMC-directive: 2014/30/UE
Dimension
Norm
45 x 45 x 18
EN 60669-2-1: 2004 + A1: 2009 +A12: 2010
Stripmax RGBW
is manufactured in Belgium by:
Domintell S.A.
dmaxbydomintell.com
Safety and environment
Directives and norms
