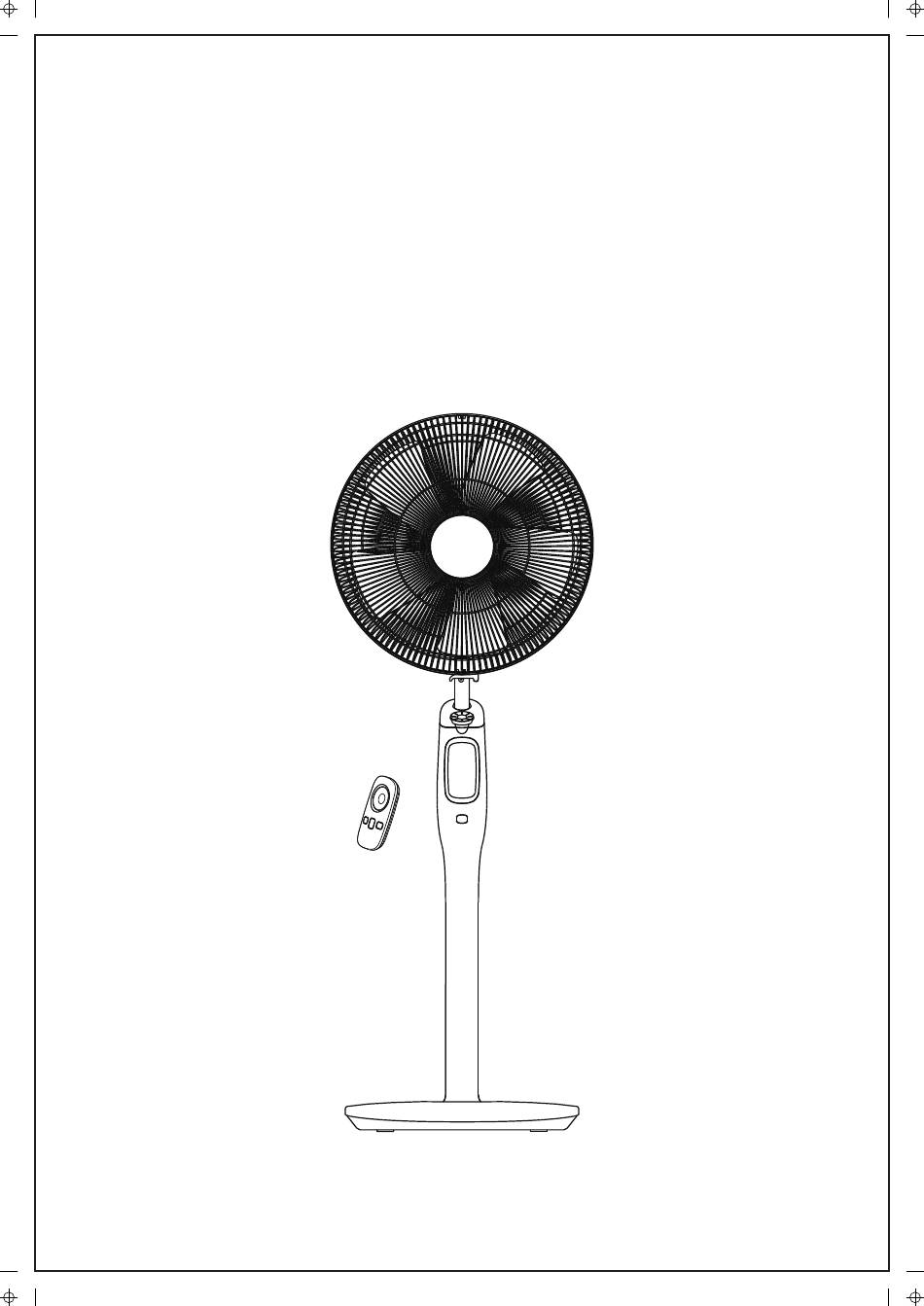

- Page 1 OWNER’S MANUAL 16" DC Stand Fan Model: A-DCSTANDFAN READ AND SAVE THESE INSTRUCTIONS...
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If plug does not fit fully in the outlet, reverse the plug.
- Page 3 PART FIGURE Front Grill Blade Rear Grill Motor Shaft Center Piece Remote Control Hook Circlip Control Part Grill Clip Fastening Knob Plastic Nut Tube Tighten Loosen Female terminals Spinner Round Base Butterfly Screws For Fixed Base Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the actual product.
- Page 4 GRILL & FAN BLADE ASSEMBLY 1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counterclockwise to remove both of them. Fix the rear grill to the motor then tighten the plastic nut again. (Fig.4) 2.
- Page 5 “ ” OSC KEY After the fan starts, repeatedly touch this button to start or stop oscillation. “ ” PRO KEY While unit is powered on, timed power-off can be set. Press the PRO button; it starts the timing power-off state. "Timing" and icon displayed on the fan display will flash once per second.
- Page 6 IV. Height Adjustment Lowering: Lift up the head with a hand, unscrew the fastening knob counterclockwise with the other hand, slowly lower the head to an appropriate height, and tighten the knob clockwise. Rising: Lift up the head with a hand, unscrew the fastening knob counterclockwise slowly with the other hand, rise up the head to a proper height, and tighten the knob clockwise.
- Page 7 USER SERVICING INSTRUCTIONS a) Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. b) Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades. c) Remove fuse carefully. Insert the tip of a tool into fuse slot, then pry the fuse gradually and slowly, but do not overexert.
